• Model NO.：SJ65, SJ75, SJ90, SJ120, SJ150
• Condition：New, Under The Order
• Warranty：1year
• Sheet Types：Sheet Surface Matte or Smooth, Vacuum Forming Shee
• Delivery Conditions：Fob CIF CIP
• Processing Period：40 Days
• Delivery Period：30days
• After-Sales Service：Send Engineers Install and Test Machine
• Technical Support：Permanent
• Line Diamision：30m*3*3m
• Line Weight：8-20t
• Output：70-350kg|H
• Transport Package：Stretch Film and Wooden Pallet, Wooden Packing
• Specification：Strap size: width 9-32mm, thickness 0.5-1.3mm
• Trademark：Sincere Machinery
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：50 Sets Year

3. Production Process
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding

 4. pet Packing Strap Belt Extrusion Machine Features:
1.Precise dosing and raw material mixing
2.Preheat and dry circulating automatically
3.Even plasticization, stable extrusion and accurate temperature control
4.Big hauling force stretching device and isolated heating oven
5.Large capacity stainless steel water tank, automatic liquid level control

5. Technical Parameters

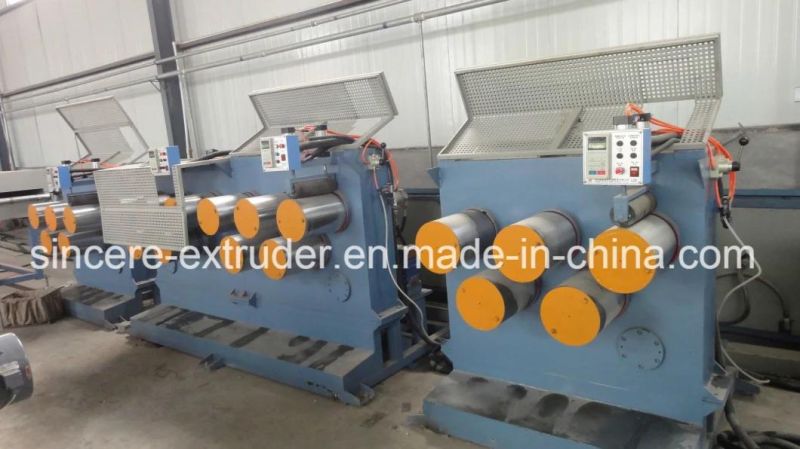

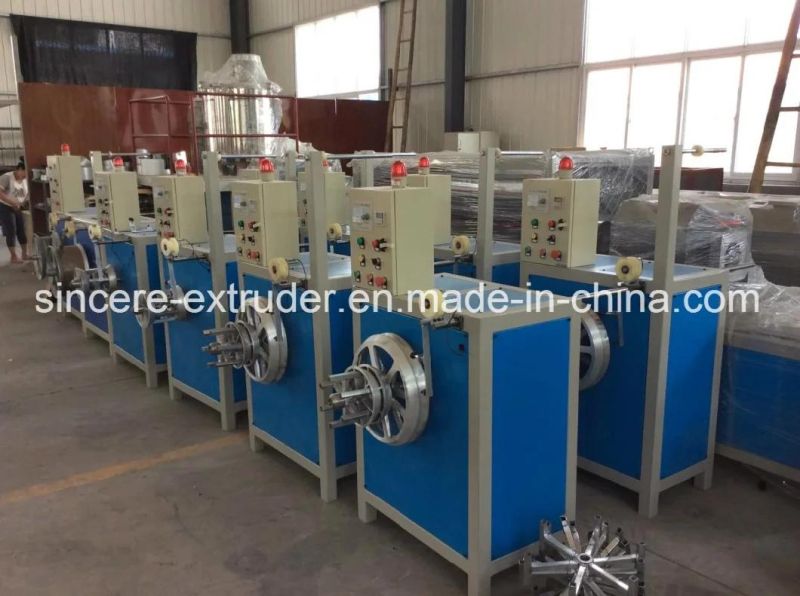

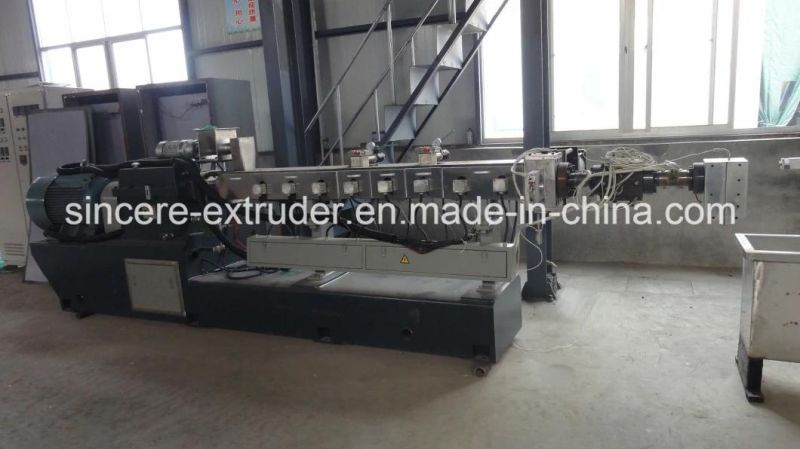

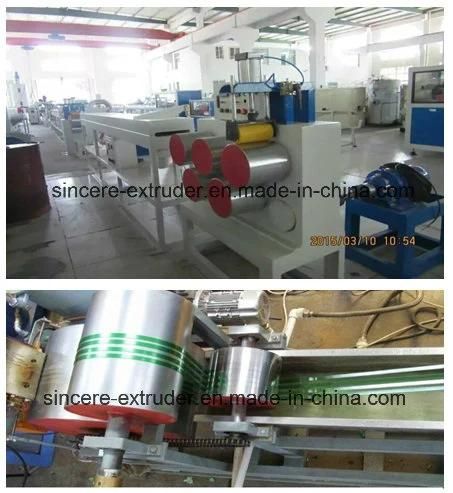

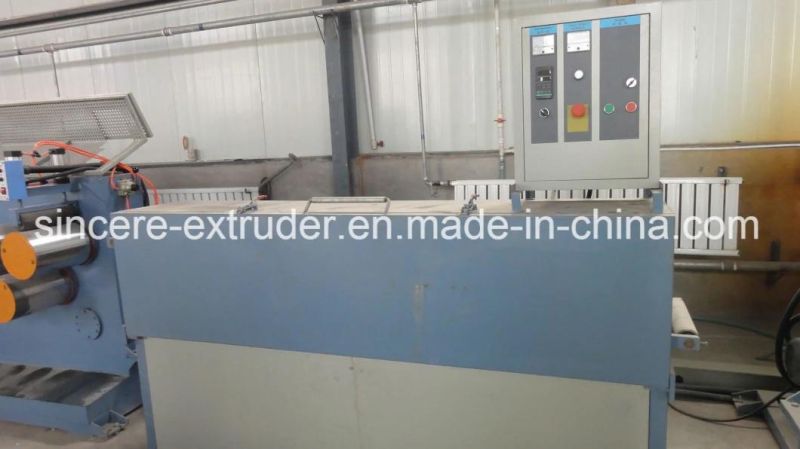

6. Machine photo
