High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine ...

Ruian Hongtong Machinery Co., Ltd.
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1000mm
  • Screw Diameter：60mm
  • Automation：Automatic
  • Computerized：Non-Computerized

Base Info

  • Model NO.：RHT-60x2,FM1000
  • Machine Weight：4T
  • Certification：CE
  • Transport Package：Wrapping Film
  • Specification：Height: 5.2m
  • Trademark：Hongtong
  • Origin：Ruian City, China
  • HS Code：84773000
  • Production Capacity：100sets,Month

Description

Basic Info.

Model NO. RHT-60x2/FM1000 Machine Weight 4T Certification CE Transport Package Wrapping Film Specification Height: 5.2m Trademark Hongtong Origin Ruian City, China HS Code 84773000 Production Capacity 100sets/Month

Product Description

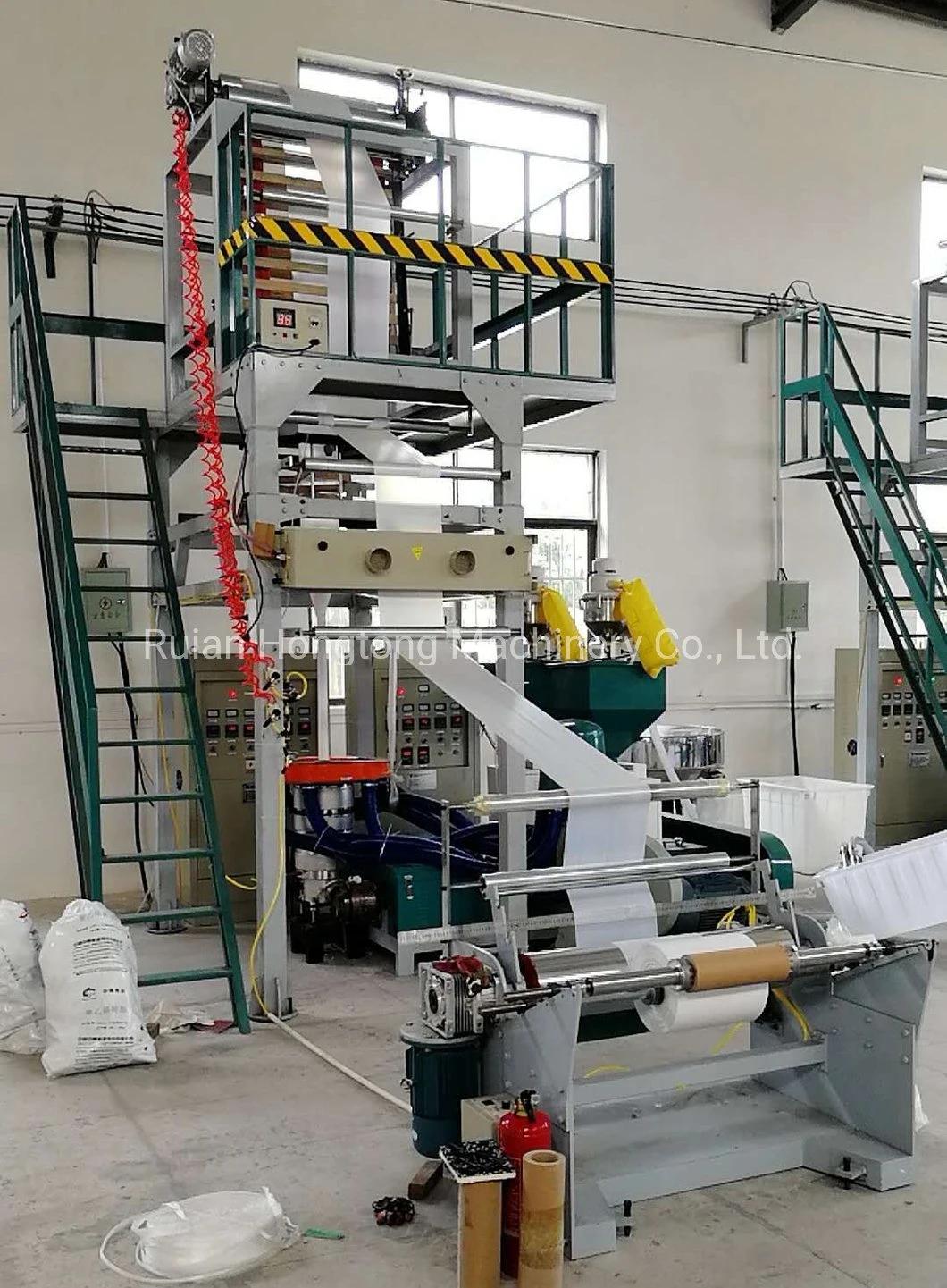

High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die HeadUSE:
It is suitable for blowing the plastic laminated film of low density polyethylene(LDPE), high density polyethylene (HDPE) and linear low density polyethylene (HDPE) etc.
Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.

Characteristics:
1. Double-layer Co-extrusion Laminated film can prolong the length for preservation of liquid package.
2. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling tidy and roll-changing easy. Please contact the salesperson for the latest quotation and machine configurations.

We can design the machines according to your needs.
ModelRHT-45×2/FM1000RHT-50×2/FM1200RHT-55×2/FM1500
Screw Diameter2×45mm2×50mm2×55mm
Screw RatioL/D30:1L/D30:1L/D30:1
Screw Speed12-120r/min12-120r/min12-120r/min
Output of Single-desk Extrude Machine45kg/h60kg/h70kg/h
Power of Main Motor2×11Kw2×15Kw2×8.5Kw
Caliber of Film Head200-250mm250-300mm300-350mm
Rotational Mode of Machine HeadContinuous rotationContinuous rotationContinuous rotation
Single-sided Thickness of Film0.02-0.10mm0.02-0.10mm0.02-0.10mm
Max Folding Width of Film600mm800mm1000mm
Total Power42Kw53Kw65Kw
Weight of Machine3500kg4500kg5200kg
Overall Dimensions4200×2200×4600mm4600×2400×5000mm5200×2700×6000mm
High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die Head
High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die Head
High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die Head
High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die Head
High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die Head
High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die Head
High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die Head
High Speed ABA 2 Layer HDPE LDPE LLDPE PE Plastic Co-Extrusion Blown Film Blowing Machine with Double Winder Rotating Die Head
1. Q: Are you a trading company or factory?
    A: We are a factory and source manufacturer. Our factory was established in 2002 developed on former factory called Haida Plastic Factory. Now we are called Ruian Hongtong Machinery Co., Ltd. with more than 3000m2 modern workshop.

2. Q: What are you main products?
    A: We can produce Film blowing machine, Bag making machine, Flexo/Gravure printing machine, Recycling machine ourselves. Film blowing machine is our main products.

3. Q: How can I do business with you?
    A: We are factory and have strategically allied with some other good local suppliers.
         We are insisting on Good quality, Reasonable price, Time-saving one-stop shopping, Long-term business and No-worry after-sale service.
   Supporting clients' growth. Your success is our success.
