Machine to Make Microduct 7mm/3.5mm, Micro Duct Production Line
Weifang Kaide Plastics Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PE
- Product Type：Extrusion
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：machine to make microduct
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Line Speed：120m,Min, 80m,Min, 60m,Min
- Pipe Diameter：7,3.5-14,10
- Control System：Siemen PLC Control System
- Inveter Brand：ABB Brand
- Electrics：Schneider Brand
- Engineer Service：Engineer Overseas Service Is Available
- Delivery Time：60 Days
- Container Loader：1X40FT Container+1X20FT Container
- Transport Package：Sea Transportation
- Specification：Microducts Bundles Pipe Machine
- Trademark：KAIDE
- Origin：China
- HS Code：8477800000
- Production Capacity：200 Sets Pear
Description
ModelExtruder 1 Extruder 2 Production Speed Line Nominal Length Power KDGX-1 SJ-65/33 SJ30/25 15m/min 22mx3.5mx2.5m 75KW KDGX-2 SJ-60/36 SJ45/30 30m/min 35mx4mx3.0m 135KW KDGX-3 SJ-75/36 SJ50/33 50m/min 50mx4mx4.5m 190KW
High Precision Mechanical Components
(1)The screw of HDPE Extruder and Silicone core Extruder are specially precoessed, provide the excellent plasticization and high extrusion output.
(2)The die head moulds material is high quality 3Cr13 .
(3)High precision and high speed haul-off machine,with servo motor drive, guaranteed the line stable production, specially designed for smaller pipe hauling.
Series Advanced Control & Detecting System
(1) Advanced Siemens PLC control system was applied into this HDPE Silicone core pipe making machine.
(2) High precise control system of pipe weight per meter is applied in this HDPE silicone core microducts making machinery. Such device will feed material precisely accroding to the weight per meter and line speed changing; to get a precise gram weight control of the final pipe,saving raw materials.

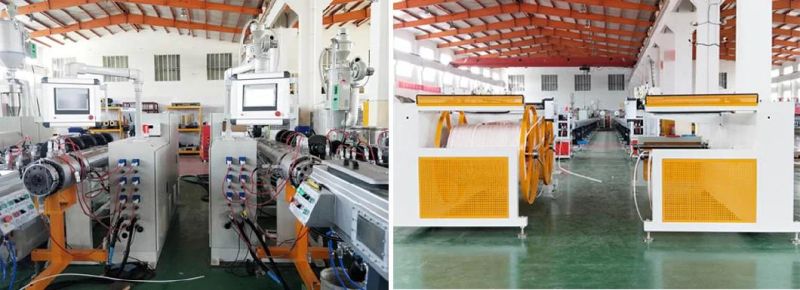

Double Working Position Coiler
(1) Traversing unit is driven by servo motor, ensuring the elagant and tidy final coils.
(2) Independent Siemens PLC control, equipped with tension controller.
Referenced Manufactured Pipe Specification (The main materials is HDPE,composite with silica gel solid lubricant inside the pipe).
Kaide Plastics Machinery Co.,ltd has more than 20 years' experience of plastics pipe extrusion machinery, especially for high speed pipe production line and composite pipe production line.
Our main products are:
Flat drip irrigation tape line,Round Drip Irrigation pipe machine
PPR/PERT/HDPE pipe line,Glassfiber PPR Pipe Line,PPR-AL-PPR pipe line,PEX-AL-PEX pipe machine,PERT-AL-PERT pipe machine,Mulilayer Al-plastic pipe production line,Multi-layer EVOH/PERT/PEXA/PEXB pipe line,PB pipe production line,PPR pipe machine, Medical catheter line,etc .
(1) The machinery have been exported to many countries, such as: Russia, USA, Korea, Algeria, Egypt, Iran, Japan, Kyrghyzstan, Cyprus, Morocco, Ukraine, Mexico, Estonia, Saudi arabia, Uzbekistan, etc,which has gained high reputation from the customers.
(2)Professional R&D team,which are continuously concentrating on optimizing of our technology to keep the leading position. Several technologies have obtained nationalinvention patent & utility model patent;The Whole process of machine manufacturing is under good quality control.
(3)From raw material purchasing, to components manufacturing, thento test running of the line, each process we have strict quality requst, to ensure that a high quality product will be delivered to the customer; We cooperate with well-known enterprises for some mechanical parts, such as: ABB, Siemens, Schneider,Autonics, SMC,Delta,ORMON,Eurotherm,PAKER, etc.
(4)We are located in Weifang, Shangdong Province, near to Qingdao city,warmly welcome to visit our factory, here is two hours away from Shanghai, one hours away from Beijing, three hours away from Guangzhou.
For more information, please feel free to contact us !
High Precision Mechanical Components
(1)The screw of HDPE Extruder and Silicone core Extruder are specially precoessed, provide the excellent plasticization and high extrusion output.
(2)The die head moulds material is high quality 3Cr13 .
(3)High precision and high speed haul-off machine,with servo motor drive, guaranteed the line stable production, specially designed for smaller pipe hauling.
Series Advanced Control & Detecting System
(1) Advanced Siemens PLC control system was applied into this HDPE Silicone core pipe making machine.
(2) High precise control system of pipe weight per meter is applied in this HDPE silicone core microducts making machinery. Such device will feed material precisely accroding to the weight per meter and line speed changing; to get a precise gram weight control of the final pipe,saving raw materials.
Double Working Position Coiler
(1) Traversing unit is driven by servo motor, ensuring the elagant and tidy final coils.
(2) Independent Siemens PLC control, equipped with tension controller.

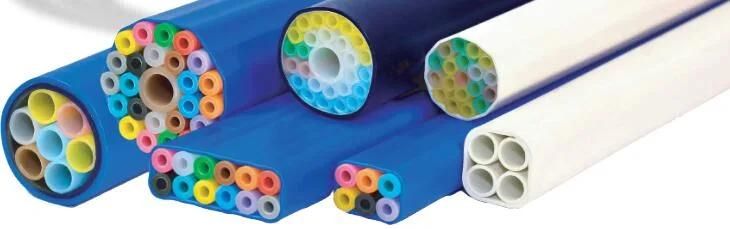

Referenced Manufactured Pipe Specification (The main materials is HDPE,composite with silica gel solid lubricant inside the pipe).
| No. | Diameter | Thickness 1 | Thickness 2 |
| 1 | 5mm | 0.75mm | 1.25mm |
| 2 | 7mm | 0.75mm | 1.5mm |
| 3 | 10mm | 1mm | 2mm |
| 4 | 12mm | 1mm | 2mm |
| 5 | 14mm | 1mm | 2mm |
| 6 | 16mm | 1mm | 2mm |
| 7 | 18mm | 1mm | 2mm |
Kaide Plastics Machinery Co.,ltd has more than 20 years' experience of plastics pipe extrusion machinery, especially for high speed pipe production line and composite pipe production line.Our main products are:
Flat drip irrigation tape line,Round Drip Irrigation pipe machine
PPR/PERT/HDPE pipe line,Glassfiber PPR Pipe Line,PPR-AL-PPR pipe line,PEX-AL-PEX pipe machine,PERT-AL-PERT pipe machine,Mulilayer Al-plastic pipe production line,Multi-layer EVOH/PERT/PEXA/PEXB pipe line,PB pipe production line,PPR pipe machine, Medical catheter line,etc .
(1) The machinery have been exported to many countries, such as: Russia, USA, Korea, Algeria, Egypt, Iran, Japan, Kyrghyzstan, Cyprus, Morocco, Ukraine, Mexico, Estonia, Saudi arabia, Uzbekistan, etc,which has gained high reputation from the customers.
(2)Professional R&D team,which are continuously concentrating on optimizing of our technology to keep the leading position. Several technologies have obtained nationalinvention patent & utility model patent;The Whole process of machine manufacturing is under good quality control.
(3)From raw material purchasing, to components manufacturing, thento test running of the line, each process we have strict quality requst, to ensure that a high quality product will be delivered to the customer; We cooperate with well-known enterprises for some mechanical parts, such as: ABB, Siemens, Schneider,Autonics, SMC,Delta,ORMON,Eurotherm,PAKER, etc.
(4)We are located in Weifang, Shangdong Province, near to Qingdao city,warmly welcome to visit our factory, here is two hours away from Shanghai, one hours away from Beijing, three hours away from Guangzhou.
For more information, please feel free to contact us !
