Top Sale Pet/PP/PE Danline Filament Monofilament Drawing Extrusion
Shandong Haidai Intelligent Machinery Co., Ltd.- Type：Plastic Monofilamen Round Yarn Extruder
- Plastic Processed：PP
- Product Type：Plastic Raffia Film Yarn Extruder
- Feeding Mode：One Feed
- Assembly Structure：Separate Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：HDSLJ-50-70-80-90
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Controlled by Control Panel
- Screw and Barrel：38CrMoAl & Nitrogen Treatment
- Screw Treatment：Double Alloy Treatment Good For100% Recycled
- Speed Synchronous Adjusting System：Synchronous Regulate Whole Machine Speed
- Stretch Roller：Hard Chrome and Mirror Treatment
- Lubrication System：Force Lubrication System with Oil Pump
- Round Beating of Roller：Dynamic Balance Detection of All Rollers
- Output Capacity：600kg,1000kg,2000kg,3000kg Per Day
- Line Speed：50m,Min-200m,Min
- Yarn Size：1000d --100, 000d
- Quality：Good Quality
- Loading Time：Within 90 Days After Deposit Received
- After-Sale Service：Engineer Installation Debugging and Training
- Technical Support：Yes
- Warranty：One Year
- Container：1 20gp and 1 40 Gp Container
- Transport Package：Container
- Specification：25m*2.5m*2m
- Trademark：CNRM
- Origin：China
- HS Code：84772090
- Production Capacity：100set,Year
Description
Item
HDSLJ--70
HDSLJ--80
HDSLJ--90
Dia of Screw
70mm
80mm
90mm
Ratio of L/D
33:1
33:1
33:1
Rotation Speed of Screw
20-90r/min
20-90r/min
20-90r/min
Drawing Ration
4--10
4--10
4--10
Power Consumption
100kw/60kw
130kw/80kw
150kw/100kw
Max Outputcapacity
1200kg/24h
2000kg/24h
3000kg/24h
Machine Weight
9000kg
12000kg
15000kg
Machine Dimension
(L*W*H)
25m*2m*2m
26m*2.2m*2.1m
27m*2.2m*2m
(2) Ring twister
| 721A | 721B | 722 | 723 | |
| Quantity of spindle | 160(adjusted) | 120(adjusted) | 40(adjusted) | 12(adjusted) |
| Lifting movement of traveler ring | 203mm | 205mm | 300mm | 300mm |
| Speed of spindle | 3310-6760rpm | 2800-5730rpm | 1800-2800rpm | 1800-2100rpm |
| Dia of roller | 51 or 57 mm | 51 or 57 mm | 57mm | 57mm |
| Distance of spindle | 140mm | 186mm | 280mm | 375mm |
| Power of moter | 11kw | 15kw | 15kw | 7.5kw |
| Dia of traveler ring | 100mm | 140mm | 204mm | 254mm |
| Twisting direction | Z or S | Z or S | Z or S | Z or S |
| Machine weight | 6500kg | 6800kg | 6600kg | 2800kg |
(3) Rope making machine
| Item | HDTM-M33 | HDTM-M44 | HDTM-M55 | HDTM-M66 | HDTM-M77 |
| Rope Range | 3-10mm | 6-14mm | 12-22mm | 18-26mm | 22-32mm |
| Lay Range | 15-38mm | 20-50mm | 32-78mm | 40-105 | 45-130 |
| Power | 5.5kw | 7.5kw | 11kw | 18.5kw | 20kw |
| Take-up capacity | Φ130*Φ500*Φ320 | Φ130*Φ600*Φ400 | Φ130*Φ600*Φ400 | Φ140*Φ700*Φ450 | Φ200*Φ550*Φ650 |
| Size of pay-off bobbin | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) |
| Qty of 8" bobbin | 8*3 or 8*4 | 24*3 or 24*4 | 32*3 or 32*4 | 46*3 or 46*4 | 64*3 or 64*4 |
| Machine weigth | 2500kg | 3500kg | 5000kg | 6000kg | 7000kg |
3. Product Overviews

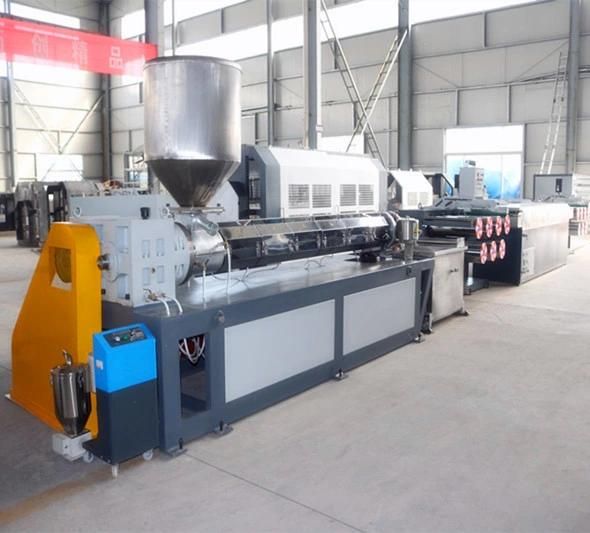

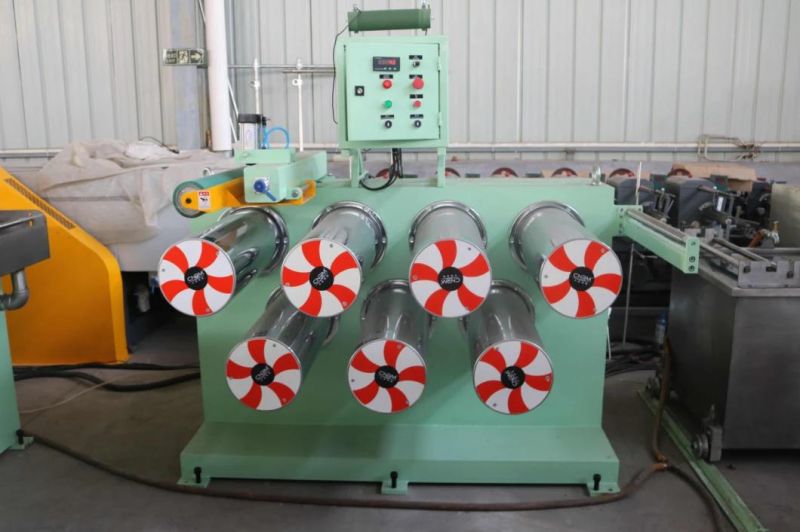

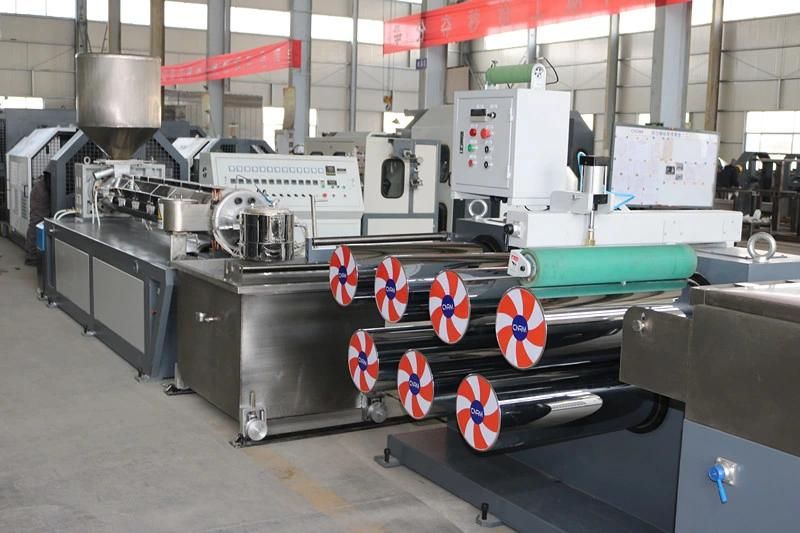

(1) PP/HDPE monofilament extruder

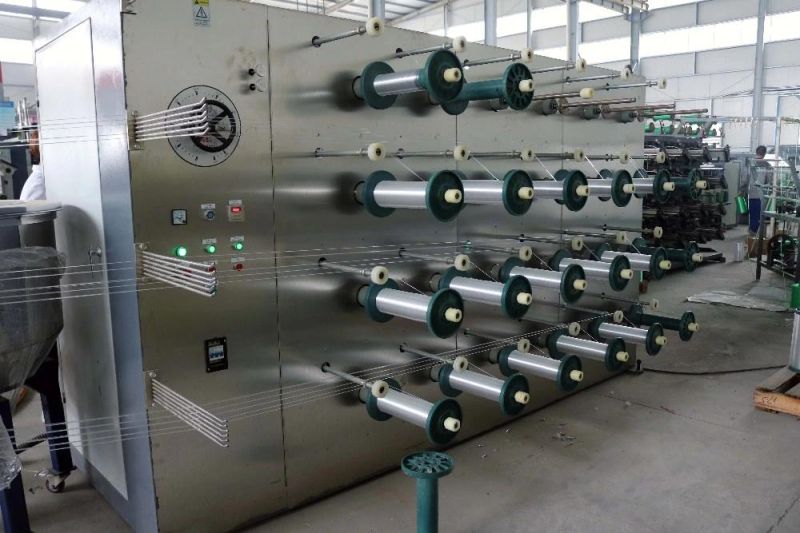

(2) Ring twister

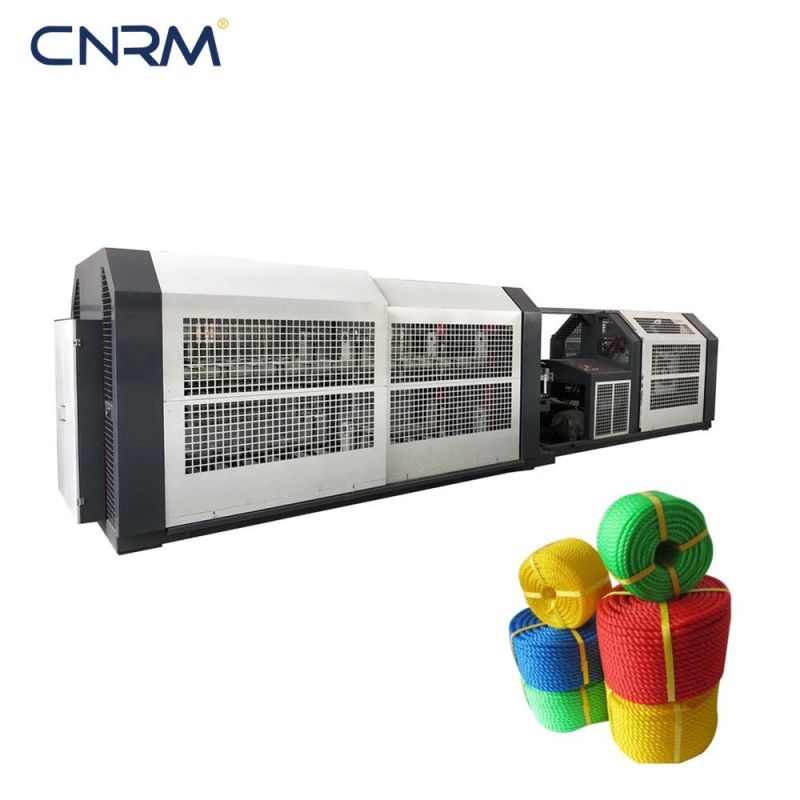

(3) Rope making machine
(1).Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.
(2).Q: Can we go to your factory discussing more detail and checking the quality of the machine?
A: Yes, no problem, welcome to our factory and we will do our best to help you.
(3).Q: Can we inspect the machine before delivery?
A: Yes, you can come and inspect the delivery. If you can not come, we have specialized engineer team to test the machine and inspect the delivery. We guarantee that you can receive a totally good machine.
(4).Q: If we have problem on machine or production, can you help us?
A: Yes, no problem.
We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
(5).Q: When can I expect delivery of my item?
A: All items are dispatched within one week if have stock. Production time will be one month.
(6).Q: Are you a factory or trade company?
A: We are a factory of yarn extruder machine, yarn twister machine, rope machine, winding and packing machine. We have export right. Learn more about our company, please click here.
5.Certification
6.Contact us
Please feel free to contact us ,24 hours service will for you
