• Model NO.：CHSJ-55C
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Extrusion Capacity：80kg,H
• Rotation Speed of Screw：10-100r,Min
• L/D Ratio of Screw：28:1
• Single-Sided Thickness of Film：0.01-0.10mm
• Transport Package：Package
• Specification：SGS
• Trademark：Chengheng
• Origin：China
• HS Code：8477300000
• Production Capacity：100sets,Month

Basic Info.

Model NO. CHSJ-55C Machine Weight 4T Certification CE, ISO9001:2008 Extrusion Capacity 80kg/H Rotation Speed of Screw 10-100r/Min L/D Ratio of Screw 28:1 Single-Sided Thickness of Film 0.01-0.10mm Transport Package Package Specification SGS Trademark Chengheng Origin China HS Code 8477300000 Production Capacity 100sets/Month

Product Description

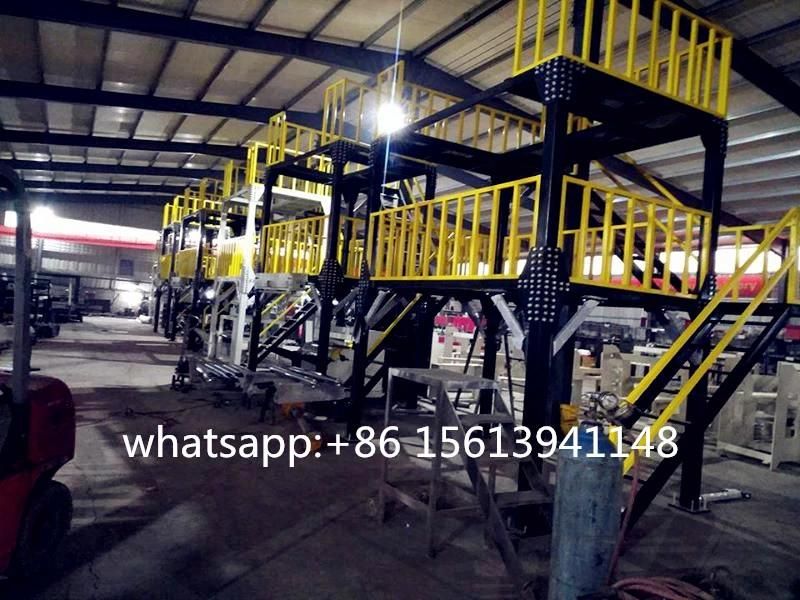

Name: CHSJ-50/55/65/65C Lifting and Rotating Machine Head Film Blowing Machine


Feature:

It is used to blow high/low pressure polyethylene film widely used for producing composite film, packaging film, packaging bag or film for textile and clothing and other packing materials.

The main motor adopts the frequency control of motor speed to improve the speed regulating stability and save the electricity by 30%. Both the screw and the charging barrel are made of 38 chrome-molybdenum aluminum through nitrogen treatment; and the traction frame applies the lifting type.

No matter what size the film is (big or small), it can achieve the best effect of cooling.


Model	CHSJ-55C	CHSJ-60C	CHSJ-65C
Diameter of screw	55mm	60mm	65mm
L/D ratio of screw	28:1	28:1	28:1
Rotation speed of screw	10-100r/min	10-100r/min	10-100r/min
Main motor power  Extrusion Capacity	15Kw 50kg/h	18.5Kw 65kg/h	18.5-22Kw 80kg/h
Maximum folding width of film	800mm	1000mm	1200mm
Single-sided thickness of film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Total power	26Kw	30Kw	36Kw
Machine weight	2.3T	2.6T	3T
Overall dimension	4200 X 2000 X 4900mm	4600 X 2300 X 5600mm	4800 X 2500 X 5800mm
