• Model NO.：GWG
• Condition：New
• Product Name：PE Drip Tape Making Machine
• Other Name：Small Flow Water Supply PE Tape Making Machine
• Processing Type：Pipe Extrusion
• Raw Material：PE Granule
• Usage：Garden Pipe
• Motor：Simens
• Contactor：France Schneider Contactors
• Temperature Control：Japan Omron
• Output：60-120meters,Minute
• Pipe Thickness：0.18mm-0.60mm
• Transport Package：PE Film Winding Wrapping
• Specification：6, 12, 16mm
• Trademark：GPM
• Origin：Shanghai
• HS Code：8477209000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. GWG Condition New Product Name PE Drip Tape Making Machine Other Name Small Flow Water Supply PE Tape Making Machine Processing Type Pipe Extrusion Raw Material PE Granule Usage Garden Pipe Motor Simens Contactor France Schneider Contactors Temperature Control Japan Omron Output 60-120meters/Minute Pipe Thickness 0.18mm-0.60mm Transport Package PE Film Winding Wrapping Specification 6, 12, 16mm Trademark GPM Origin Shanghai HS Code 8477209000 Production Capacity 500 Sets/Year

Product Description

Product Application

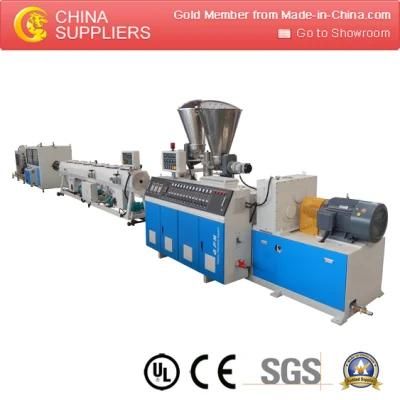

GPM seriespe drip tapes with double blue line making machineis mainly used in the production of agricultural drainage, water supply and drainage, and garden.. The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.

Main Features
1) High output capacity design, maximum sped can reach 15m/min.
2)Independent vacuum and haul-off cutter device, good stability ,low scraprate.
3) No-dust cutter device .
4) CaCO3 can add more than 200%, low cost formula.


Part 1:  The main Extruder
1. The screw is made of nitride steel (38GrMALA), the surface is nitrogen treated to make it hardness.  The extruder of the equipment is comprised of the extruding screw of f65,33: l, the quality of screw and screw barrel are higher than the national standard required.
2. The warming is controlled by PID proportional control in the fluctuation at ±0.5ºC and warmed into seven segment to ensure stable production of the dripping tube.
3. The semi-auto Net-change machine, when pressure contrast reach to desired value, it means remind the operator to change filter net.  Operator may change filter net by touch the filter net control button.  The whole process only takes about 1-2 minutes, it is very efficient work.
4. The main-motor use 37KW direct current motor.
5. Reducer casing use hard gear, surface gear,    self-lubricating, and not make any noise.

Part 2: Continuous dripper extruding system, and the double line extruding system
The screw for continuous dripper extruding is made of nitride steel (38GrMALA), the surface is nitrogen treated to make it hardness.  The extruder of the equipment is comprised of the extruding screw of f45,30: l, the quality of screw and screw barrel are higher than the national standard required.
The screw for double line extruding is made of nitride steel (38GrMALA), the surface is nitrogen treated to make it hardness.  The extruder of the equipment is comprised of the extruding screw of f25,15: l, the quality of screw and screw barrel are higher than the national standard required.
Part 3: Vacuum calibration system
1. The water container is controlled by gearing chain, guiding by straight-line slide-way, this can increase accuracy for the equipment and stable operation for the water container.
2. To avoid tube rotation during production, we make a special device and given tube a treatment.  When tubes pass through this device will not rotated itself, therefore ensure drilling accuracy.
3. Water pump use GRUNDFOS products made in Denmark, and Xinhuan vacuum pump, increase stable performance and reliable equipment.
4. Vacuum cooling water use small closed loop circulation method; it has electrical heater and industrial water cooling machine, attach a filter device. Auto adjustment for hot and cold water. The filter device for the closed circulation system in machine nose modular could save soft water 0.5 m/per day, this may reduce running cost.
5. All parts which connect to the water are made of stainless steel.  Water tank is a special design unit, it save time when operations.
Part 4: Second cooling device
1. The whole equipment made of stainless steel. Cooling time depends on requirement, and may increase and decrease.
2. Install double dryer device to dry drip tube, use less air when machine runs, but it still remove water on the tube.

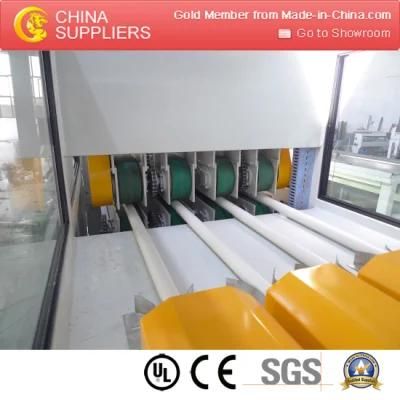

Part 5: Haul-off machine
A special traction engine use double rube caterpillar only for produce drip tube.
This equipment use closed loop structure, it has comprehensive safety measure, and it has an orientation device at entry and exit area. The clearance between caterpillar belts can be adjusted.
3. AC servo-control system is DELTA made in TAIWAN. Maximum running speed can reach 200m/min, it has high accuracy rate when assembly operations.
Part 6: Punching machine.
1. The machine has mechanical slot drilling device which applied international patent technology, is an upgraded and modified automatic tracing punching type. The punching device and emitter detection device can be adjusted according the traction speed.
The system is not limited by production speed, with unique system process, and the punching frequency will be at 400 pieces/min, compare with other drilling method, it has the following features: quick adjustment, accuracy, reliable, low cost for operation and stable performance, suit for auto production assembly line.
2. Punning knife for produce thick tube has been improved, toss scrap method is used for this device, and it is very efficient.
3. Punching machine can drill on different tubes; whole spaces can be adjusted, such as 100mm, 500mm,
4. This punching machine use wheel detection, will not damage surface of tube.
5. Complete new scrap inhale device, which inhale all scrap during production, it is very slinky and useful.
Part 7: Winding machine.
1. Use long arm packing method. Rolling tray, motor use servo system, increase stable performance.
2. Touch screen operation and control, easy monitor and direct observation.
3. Use tension detection and controlled by sliding resistance electrical induction, tension control very delicate, and detection has very high accuracy rate.

Part 8: Electrical equipments.
1. DELTA PLC, Frequency inverter, touch screen.
2. Chint electrical units
3. acoustic-optical warning
4. Data recording
5. Error recording
6. Production calculation
7. Power distribution cabinet


No.	Item	Technical parameter
1	Production speed	60-120meters/minute
2	Diameter of final product	6mm,12mm,16mm
3	Wall thickness	0.18mm-0.60mm
4	Dripper distance	100mm-500mm
5	No. of Extruders	3 sets
6	Main Extruder	65mmx 33/1
7	Continuous drippers  Extruder	45mmx 30/1
8	Double line Extruder	25mmx 15/1
9	Haul-off speed	120meters/minute
10	Perforating Speed	700holes/minute
11	Perforation	Mechanical
12	Winding speed	120meters/minute
13	Winding method	Automatic
14	Winding motor	Frequency inversion
15	Water consumption	Circulating water system
16	Installation power	120KW
17	Dimension (L*W*H)	L30m*W2.5m*H2m

The origin of different components:


No	Component name	Brand name and Origin
1	The extruder	Kangrun, China
2	PLC, Frequency inverter, Servo electric motor, touch screen	Delta, Taiwan.
3	The electrical equipment, such as contacter, low voltage circuit breaker	Chint, China
