3 Layer Plastic Film Co-Extruder Film Blowing Machine
WENZHOU E-SHION MACHINERY CO., LTD.- Type：Three-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1500mm
- Screw Diameter：55X3
- Automation：Non-Automatic
- Computerized：Non-Computerized
Base Info
- Machine Weight：About 6tons
- Certification：CE
- Screw Material：Double Alloy
- Die Head：Rotary Head
- Heater Material：Cast Aluminum
- Motor：China , Siemens Is Optional
- Inverter：China ,Delta or Panasonic Is Optional
- Electric Parts：Schneider ,Panasonic
- Temperature Control：Omron
- Gear Box /Reducer：Shuguang ,Hangzhou Weili
- Winder：Sing , Double
- Air Ring：Double-Lip Air Ring
- Transport Package：Plastic Film ,Bubble Film
- Trademark：E-SHION
- Origin：China
- HS Code：8477309000
- Production Capacity：100sets,Year
Description
If you need other film blowing machine. Please click here
Main Technical Variables:

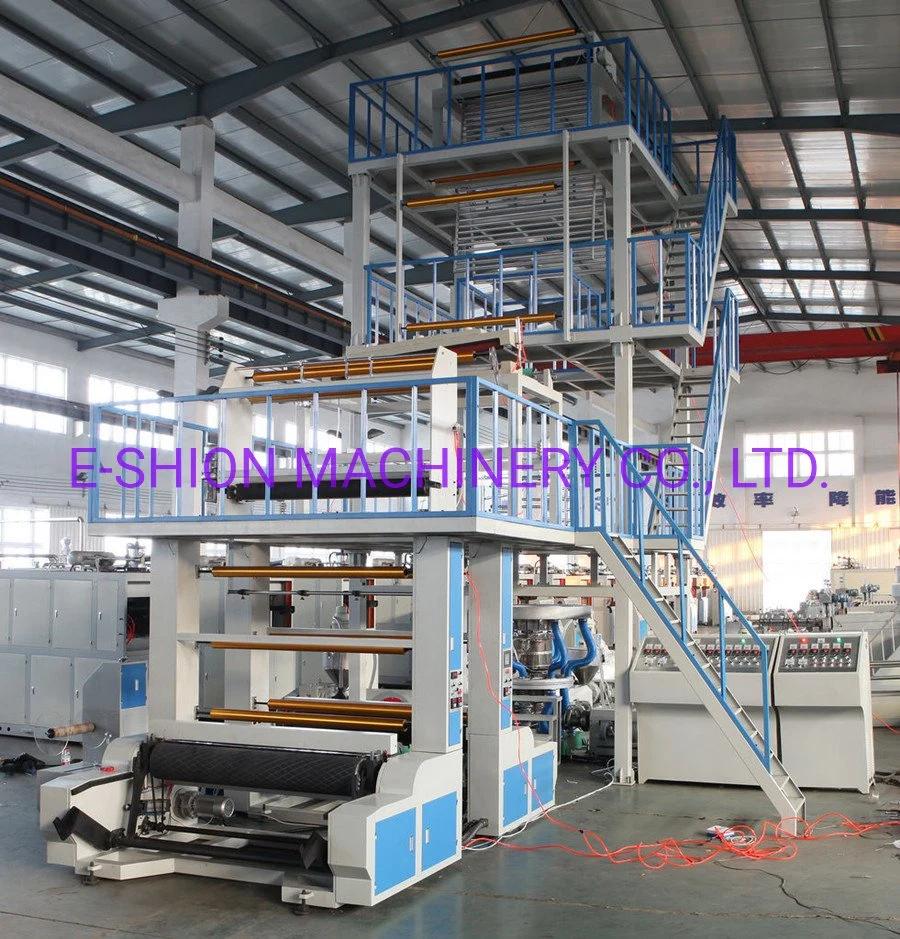

Machine in our customer's workshop:

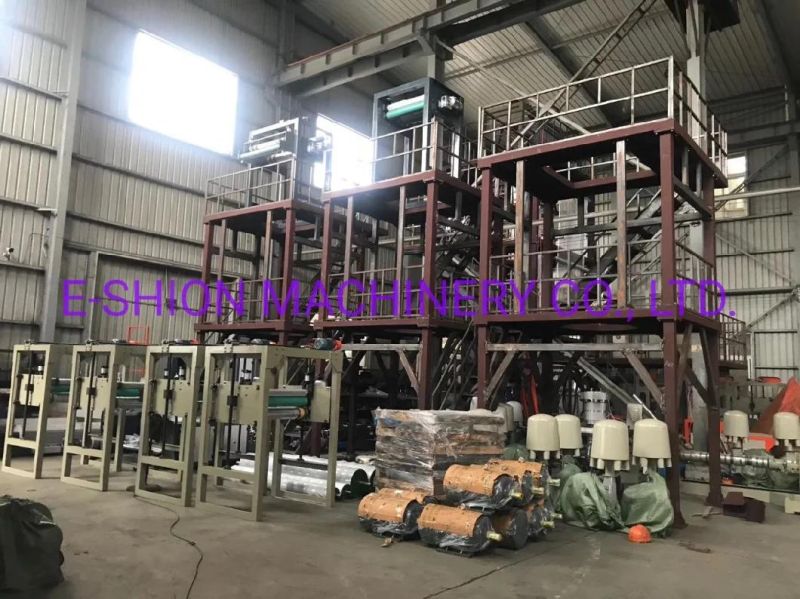

Machines in our workshop :
Main Technical Variables:
| Model | SJ-45×3/FM1000 | SJ-50×3/FM1200 | SJ-55×3/FM1500 | SJ-60×3/FM2000 | SJ-65×3/FM2500 |
| Screw diameter | Ф45mm | Ф50mm | Ф55mm | Ф60mm | Ф65mm |
| Screw ratio L/D | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw speed | 15-120r/min | 15-120r/min | 15-120r/min | 15-120r/min | 15-120r/min |
| Main motor power | 11kw×3 | 15kw×3 | 18.5kw×3 | 22kw×3 | 30kw×3 |
| Extrusion output(single) | 100kg/h | 120kg/h | 150kg/h | 180kg/h | 200kg/h |
| Range of die( THE DIE HEAD CAN BE SPECIAL ORDERED) | Ф200/ Ф250 | Ф200/ Ф250 | Ф250/ Ф300 | Ф500 | Ф600 |
| Single-sided thickness of film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.03-0.10mm | 0.03-0.10mm |
| Max. Folding width of film | 1000mm | 1200mm | 1500mm | 2000mm | 2500mm |
| Electric total capacity | 76kw | 88kw | 102kw | 130kw | 156kw |
| Overall dimension | 6600×4100×500 0mm | 6800×4300×600 0mm | 7000×4800×680 0mm | 7800×5300×860 0mm | 8600×6200×96 00mm |
| Weight of machine | 4.2T | 5.3T | 6.2T | 8.6T | 10.6T |
Machine in our customer's workshop:Machines in our workshop :
