• Model NO.：KDMA-ZY
• Condition：New
• Pipe Layer：3 Layer, 5 Layer
• Pipe Structure：Plastic-Glue-EVOH-Glue-Plastic
• Machine Capacity：15m,Min
• Producing Scope：16-32mm
• Plastic Layer：Pexa
• Machine Control：PLC Intergrated Control
• Low Voltage Electric Component：Schneider
• Frequency Inverter：ABB
• Pipe Length/Coil：50-200m
• Transport Package：Soft Film Packaged
• Specification：35m*4m*2.5m
• Trademark：KAIDEMAC
• Origin：China
• HS Code：8477209000
• Production Capacity：150sets,Year

1Pipe releasing device  2PEXa pipe heating device3EVOH extruder4Glue extruder5co-extrusion die head6Cooling flume7servo haul-off machine8Material loader and dryer9Automatic pipe coiler10Siemens PLC control system11Remote control system

Main features of the EVOH barrier pexa pipe making machine:

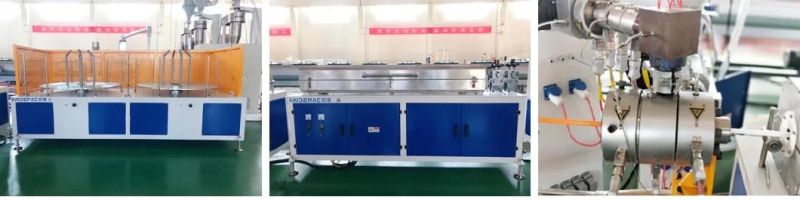

1)Pipe heating oven
2 sets of heating ovens ensure the pipe is heated uniform, heating temperature is controlled intelligent.
2) EVOH and glue extruders are specially designed according the raw material's properties. Reasonable extruder structure makes the extruding pressure is stable, not only increase the melt's plasticizing quality in screw and barrel but also save energy.
3)Special designed 3 layer co-extrusion die head,obtained many national patents. Not only ensure the melts with stable flowing rate, but also with many advantages like longlife span,easy clearance etc.The extruded pipe surface is brightly and with high precision.
Producing scope:16-32mm

4)Siemens PLC system. sync control whole production line, intelligent, easy to learn and operate. Normally, one line with 1-2 workers is enough
5)All electrical components are : SIEMENS, ABB, SCHNEIDER
6)Remote control system is equopped, you only need to prepare one cable and connect one part of our machine with your local internet,then we can help you solve any problems at our factory.
