• Output：40-70kg,H

Basic Info.

Output 40-70kg/H

Product Description

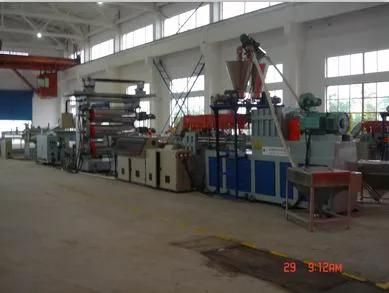

PVC Ceiling  Profile Extrusion Production Line

1. PVC Ceiling Profile Extrusion Production Line Application:
  PVC plastic steel profile extrusion line is mainly producing ceilings, wall panels and other decorative materials.

   2. PVC Ceiling Profile Extrusion Production Line Character:

Screw adopts oil cooling system. Barrel uses a special air cooling system cooling. Plastics mixing uniformity, high output, wide application range, high reliability. Gear box, distribution box specially designed reinforced thrust bearings, drive torque and long service life. Electrical control adopts PLC / PC automatic control, temperature control table control using conventional equipment,.The major part mainly adopts imported components and has a number of fault alarm function, simple operation, easy maintenance,etc.

  3.PVC Ceiling Profile Extrusion Production Line Technical Parameters:


Model Item	SWTHB-1	SWTHB-2	SWTHB-3
Screw Diameter(mm)	48/118	55/120	65/132
Screw Rotary Speed(rpm)	1-45.5	1-38	1-30
Main motor power/heating power (KW)	45.2	71.6	92.5
Output(KG/H)	40-70	70-150	90-250
Net Weight(KG)	6000	7500	9000
Outline Size(L*W*H)(m)	3360*1290*21`27	3620*3500*2157	6725*1550*2814
