• Customized：Customized
• Certification：CE, ISO9001:2008
• Condition：New
• Temperature Controller：Rkc
• Motor：Siemens Beide

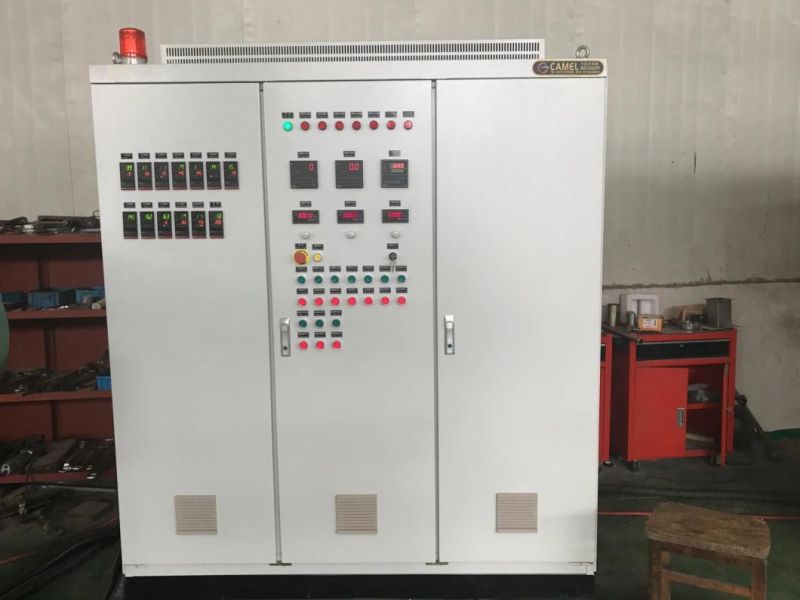

• Control：PLC
• Contactor：Siemens Contactor
• Warranty：1 Year
• Color：Customised
• Plastic Type：Plastic Bottle
• Weight：5-12t
• Voltage：380V 50Hz 3phase(Customized)
• Transport Package：Standard Shpping Package
• Specification：20mx2mx2.5m
• Trademark：CAMEL
• Origin：China(Mainland)
• HS Code：84772090
• Production Capacity：500 PCS,Year

Basic Info.

Customized Customized Certification CE, ISO9001:2008 Condition New Temperature Controller Rkc Motor Siemens Beide Control PLC Contactor Siemens Contactor Warranty 1 Year Color Customised Plastic Type Plastic Bottle Weight 5-12t Voltage 380V 50Hz 3phase(Customized) Transport Package Standard Shpping Package Specification 20mx2mx2.5m Trademark CAMEL Origin China(Mainland) HS Code 84772090 Production Capacity 500 PCS/Year

Product Description

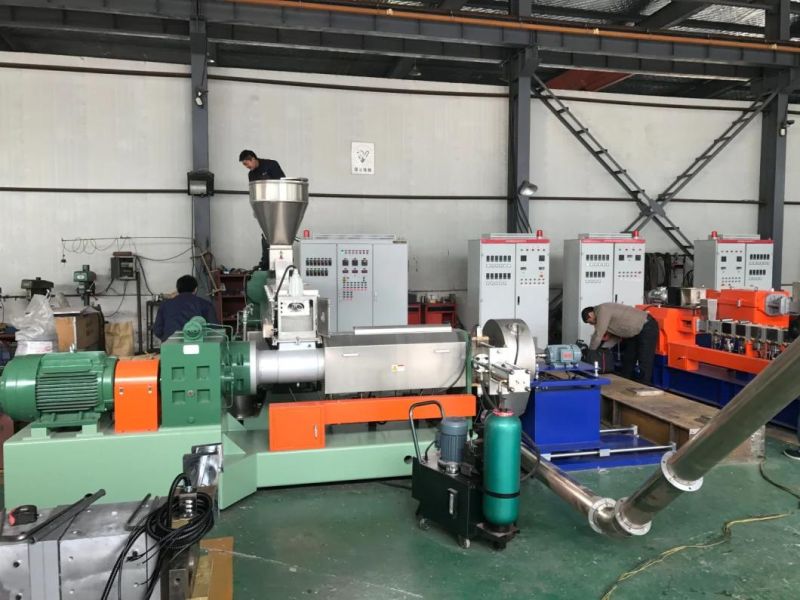

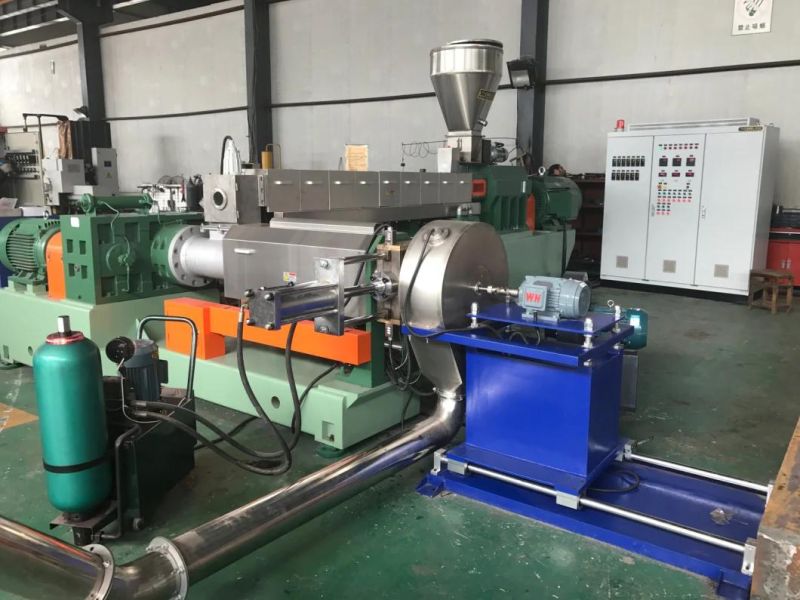

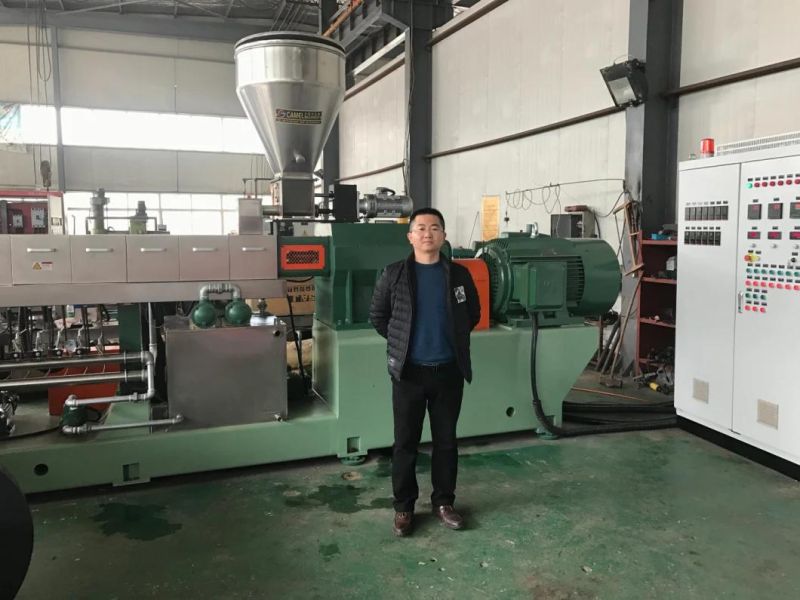

plastic Granulating Machine Pelletizing Line/Granulation Machine
1. Screw components designed by computer aids is kneading type, has excellent self-cleaning function,
 the new kneading block design effectively avoid the problems of overheating and energy consumption.
2. According to process system and formula requirements, the unit can optimize its L/D ratio, barrel structure,
screw array, venting number and location, feeding method, electrical control methods etc. for rational
allocation.

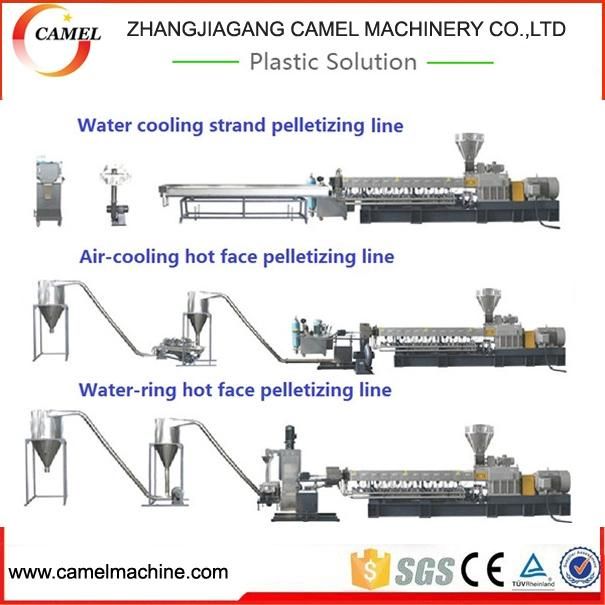

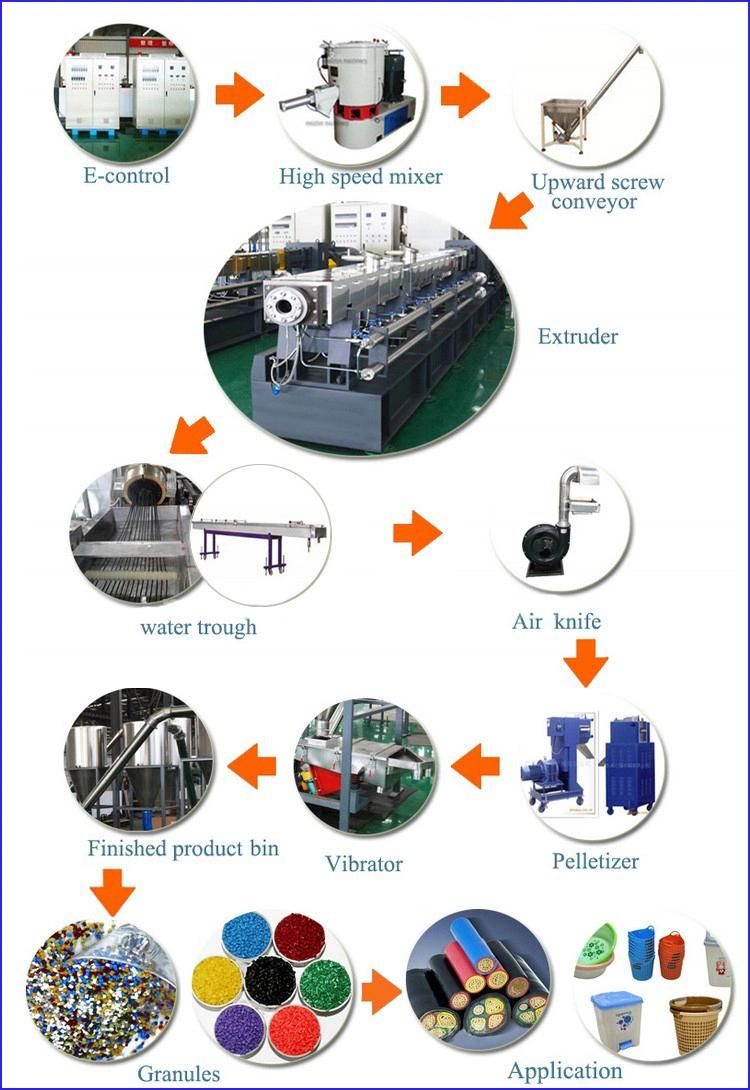

3. Granulation system: water-cooling strand pelletizing, air-cooling die face hot cutting
water ring die face hot cutting, Eccentric water mist hot cutting, water and underwater die face hot cutting and so on.

Technical data:

Model	Screw Diameter  D  (mm)	Screw  L/D	screw speed N (r/min)	Main motor power P(KW)	Screw Torque T (N.m)	Torque Level T/N³	Capacity Q(kg/h)
SHJ20	21.7	28~40	600	3/4	30	4.8	3-15
SHJ35	35.5	28~56	500	11 / 15	115	4.2	20-70
SHJ50	50.5	28~56	500	45 / 55 / 75	425	5.1	80-150
SHJ52B	51.4	28~56	400/500/600/800	45 / 55 / 75	425	5.1	120-280
SHJ65	62.4	28~56	500 / 600	55 / 75 / 90	675	4.8	150-250
SHJ65B	62.4	28~56	400/500/600/800	90/110	675	4.8	200-500
SHJ75	71	28~56	500 / 600	90 /110 /132	1005	4.6	250-350
SHJ75B	71	28~56	400/500/600/800	110 /132/180	1005	4.6	300-700
SHJ95	93	28~56	400 / 500	250 / 315	2815	5.9	600-1000
