• Computerized：Non-Computerized
• Automation：Automatic
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Sinoplast
• Origin：Zhe Jiang, Wen Zhou
• HS Code：8477409000
• Production Capacity：100 Sets Per,Year

Basic Info.

Computerized Non-Computerized Automation Automatic Transport Package Wooden Case Specification CE Trademark Sinoplast Origin Zhe Jiang/ Wen Zhou HS Code 8477409000 Production Capacity 100 Sets Per/Year

Product Description

I. Usage:

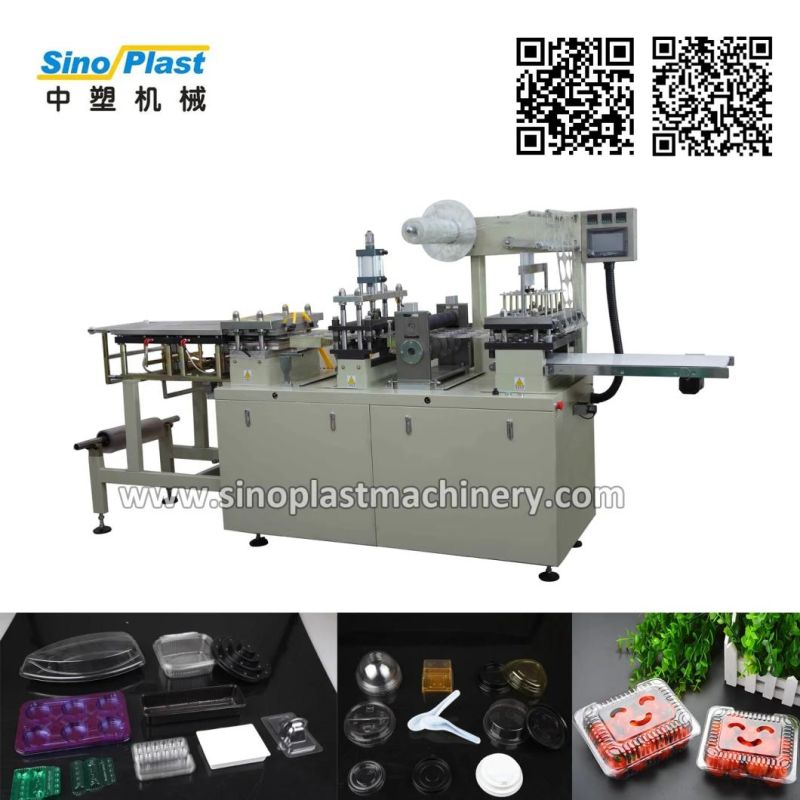

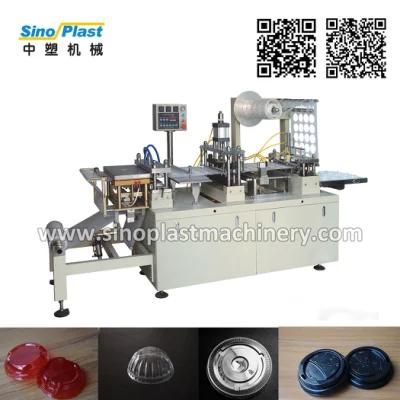

This machine is specially designed for making disposable HIPS/PVC/PET lids for plastic/paper cups, mini soup spoons, trays for medicine and etc.


II. Main Features:
1. This machine adopts sheet roll feeding, heating, molding, hole or cross punching, trimming, finished products transmission automatically, which saves labor and avoids product pollution during the production.
2. This machine is controlled by PLC with interface, which is easy operation and maintenance.
3. The journey of this machine is adjustable, and easy to change the moulds for different sizes of products.

In a word, this is a perfect machine with small workshop requires, less electricity consumption, less labor invests, less waste sheet appears, but high output, favorable price, easy operation and maintenance.


III. Main Technical Parameter:


Model	DP-410	DP-420S
Suitable Material	PS/HIPS/PVC/PET	PS/HIPS/PVC/PET
Journey Range	30-160mm	30-160mm
Max Forming Area	400×160mm	400×160m
Max Forming Depth	32mm	50mm
The Power of Heater	1.5KW*2pcs	6-8KW
Total Power	4.6KW	4-5KW
Required Sheet Width	340mm	340mm
Required Sheet Thickness	0.15-0.5mm	0.15-0.5mm
Air Pressure	0.4-0.7MPa	0.4-0.7MPa
Air Consumption	0.6-0.8 m³/min	0.6-0.8 m³/min
Water Consumption (recycle)	60 liters/hr	60 liters/hr
Punching Frequency	8-32 times/min	8-32 times/min
Power Voltage	380V/50HZ	380V/50HZ
Weight	800Kg	800Kg
Dimension	2700×830×1450mm	2700×830×1450mm

 Please contact with me to get quotation of our machines with details specification!
