• Model NO.：DN8~Dn32
• Engagement System：Full Intermeshing
• Screw Channel Structure：Non Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Coating：Plating
• Certification：Ce, ISO, RoHS
• Condition：New
• Name：Gas Hose PVC,PE Coated Production Lime
• Size：8~32
• Material：PVC,PE
• Color of PVC/PE Cover：Yellow, Red
• Shape：Flat Surface
• Application：Pipe, Flexible Conduit Hose
• Length of Hose：Unlimited
• Payment Term：T,T
• Package：Standard Seaworthy Package
• Transport Package：Standard Seaworthy Package
• Specification：SGS CE
• Trademark：HLT
• Origin：China Jiangsu
• HS Code：8422400000
• Production Capacity：200 Sets

Basic Info.

Model NO. DN8~Dn32 Engagement System Full Intermeshing Screw Channel Structure Non Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Coating Plating Certification Ce, ISO, RoHS Condition New Name Gas Hose PVC/PE Coated Production Lime Size 8~32 Material PVC/PE Color of PVC/PE Cover Yellow, Red Shape Flat Surface Application Pipe, Flexible Conduit Hose Length of Hose Unlimited Payment Term T/T Package Standard Seaworthy Package Transport Package Standard Seaworthy Package Specification SGS CE Trademark HLT Origin China Jiangsu HS Code 8422400000 Production Capacity 200 Sets

Product Description

gas hose PVC/PE coated production lime


Product description
1) Hard Teeth Surface, type 173 Gearbox
2) 18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor
3) The screw & barrel are 38CrMoAl, Nitriding treatment, depth: 0.2-0.4MM, compression ratio:3.2, Length : diameter:25:1 with water coo
ling system;
4) Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs
with two sections of moulds
5) Size range: DN8-32mm

1.Coated size:from 8mm to 32mm
2.it can adjust the speed of the production
3.One machine can have different moulds

The flexible metal conduit PVC coating machine is used to produce outer jacket for metal flexible conduit, the coating material can be PVC, PE, etc. With the plastic coating, the metal flexible conduit can be used for liquid tight material, gas, etc.

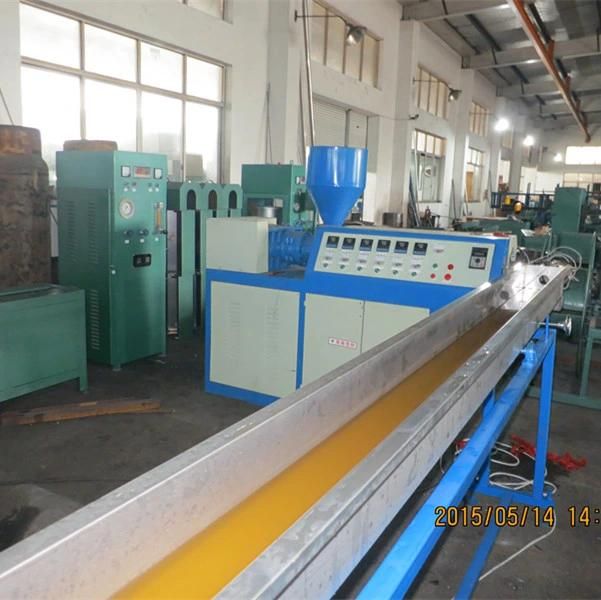

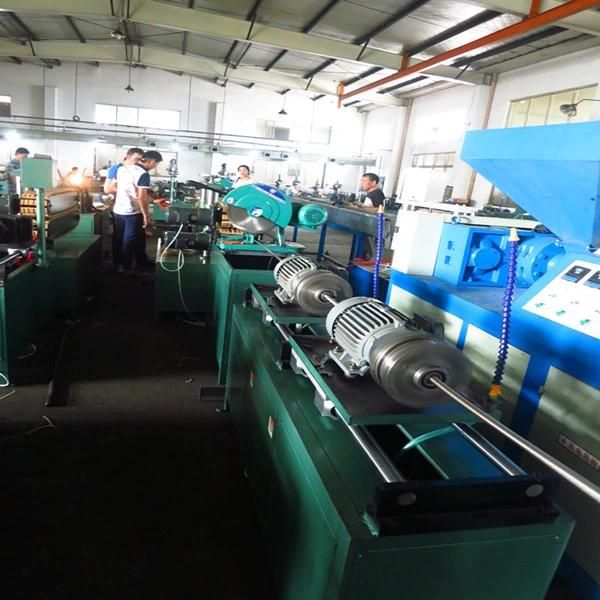

Picture of machine






Related Machine

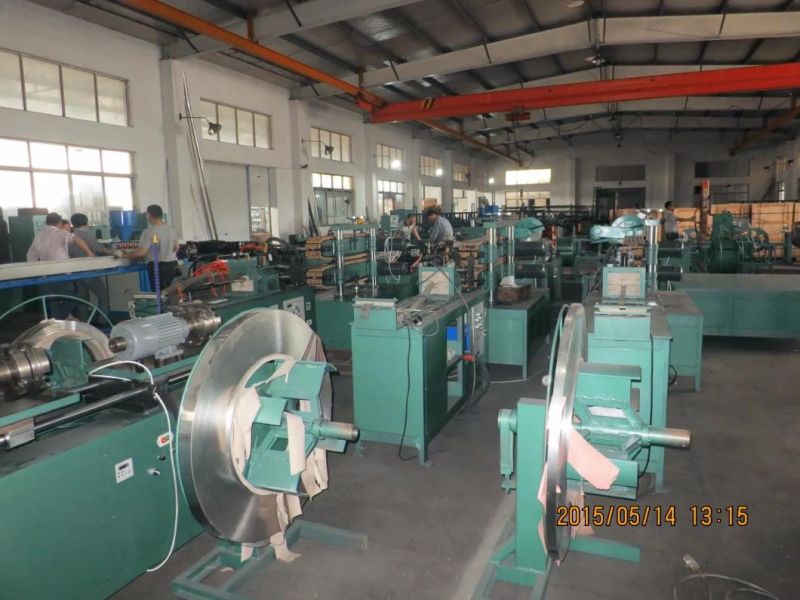

Mechnical metal hose making machine
Size range:DN8-DN32

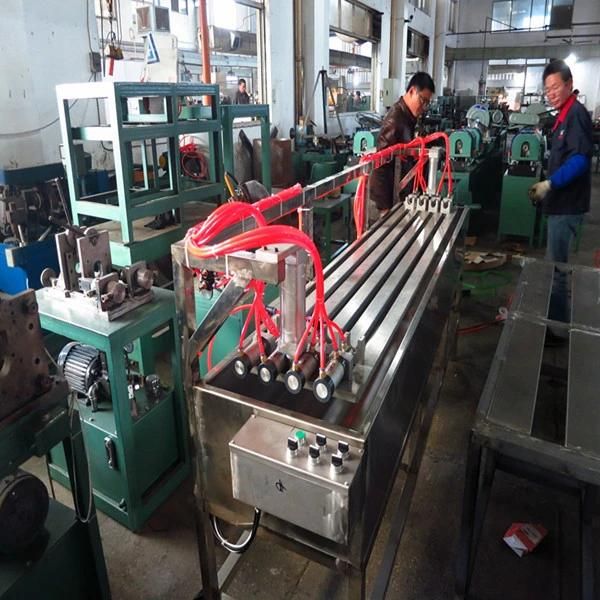

Testing machine
size range: DN8-DN32



FAQ for PVC coated line
1.  Why choose us as your supplier?
We are most professional in PVC coating machine for flexible conduit and hose with more than 30 years' experience
2.  What size can you supply for PVC coating machine?
Machine no. A:DN8-32  B ID7-55; C  ID60-102
3. What can you supply for PVC coating machine?
Application 1:Flat coating for hose before putting on fittings
Application 2:Corrugated coating for hose after welding the fittings
We need to know the following information to quote you correct  coating machinery:
1.Which kind of structure coating type you need?
l  Corrugated surface
l  Flat surface
2.Size of hose you want to coat?
3.Coat layer thickness?
4.Pictures will be better for reference.
