• Input Power：150W
• Motor Speed：1000rpm
• Drilling Height：25-120mm
• Max Profile Width：120mm
• Screw Diameter：3.0-5.0mm
• Profile Length：300-3000mm
• Profile Step Depth：32mm
• OEM：Support
• Certificate：Ce,ISO
• Warranty Time：2 Years
• Transport Package：Plywood Case
• Specification：1500× 650× 1500mm
• Trademark：Hiwoc
• Origin：China
• Production Capacity：10000,Year

Basic Info.

Input Power 150W Motor Speed 1000rpm Drilling Height 25-120mm Max Profile Width 120mm Screw Diameter 3.0-5.0mm Profile Length 300-3000mm Profile Step Depth 32mm OEM Support Certificate Ce/ISO Warranty Time 2 Years Transport Package Plywood Case Specification 1500× 650× 1500mm Trademark Hiwoc Origin China Production Capacity 10000/Year

Product Description

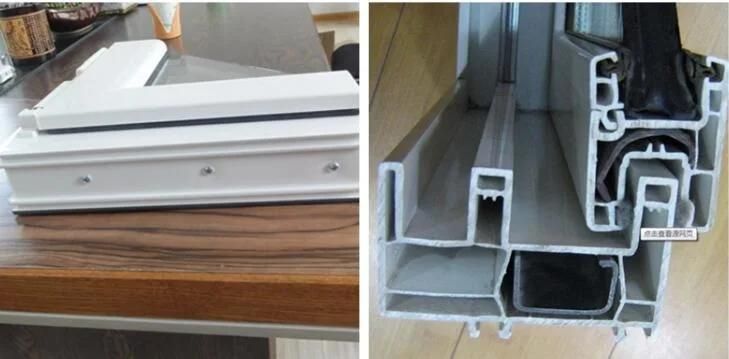

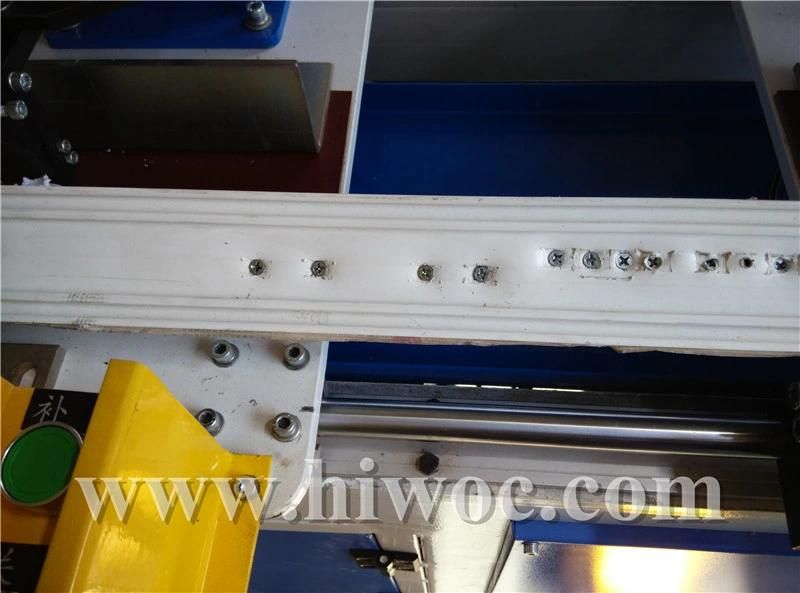

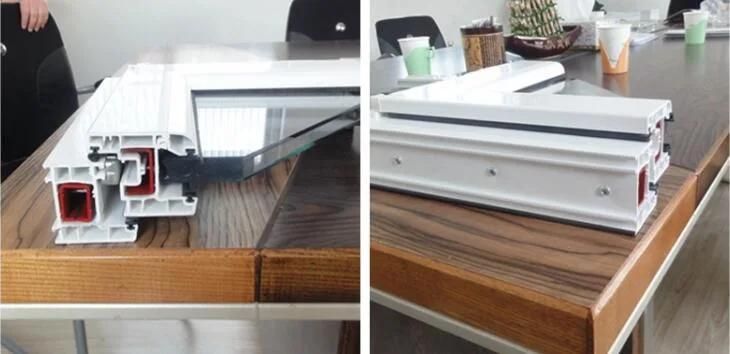

Udes for joining and fixing the reinforcement and PVC profiles together.

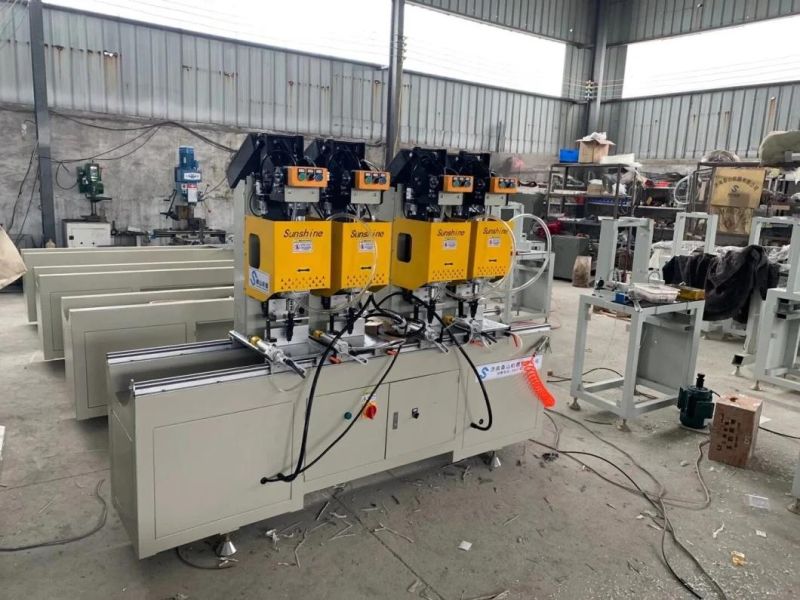

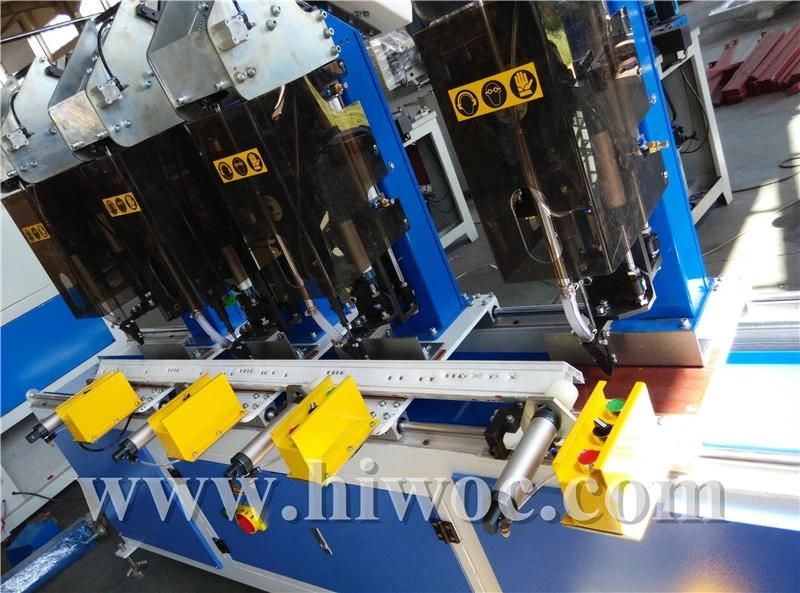

1. Four heads can fasten fours screws.
2. Screw fastening depth can be adjusted conveniently.
3. High speed for feeding the screws full automatically.
4. Can save 3-5 workers, greatly reduce the cost and improve the efficiency.

Parameter
Air Pressure	0.6~0.8MPa
Input Voltage	220V 50Hz or As Customer need
Input Power	1Kw
Profile length	300-3000mm
Profile height	100mm
Profile width	120mm
Screw Diameter	3.0-4.5mm
Screw length	13-19mm
Profile step deepth	32mm
Overall size	1500×650×1500mm
Weight	1000kg



Main accessory
PLC	Taiwan Delta
Solenoid valve	Germany FESTO
Cylinder	PC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switch	Taiwan Delta
Linear bearing system	Linear (South Korean brand)



Standard accessory
Cutters	4pcs
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
