• Model NO.：500
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Model：500
• Power(Kw)：7.5kw
• Main Shaft Speed;(R/Min)：15
• Capacity：up to 600 Kg,Hr
• Reducer Model：K97

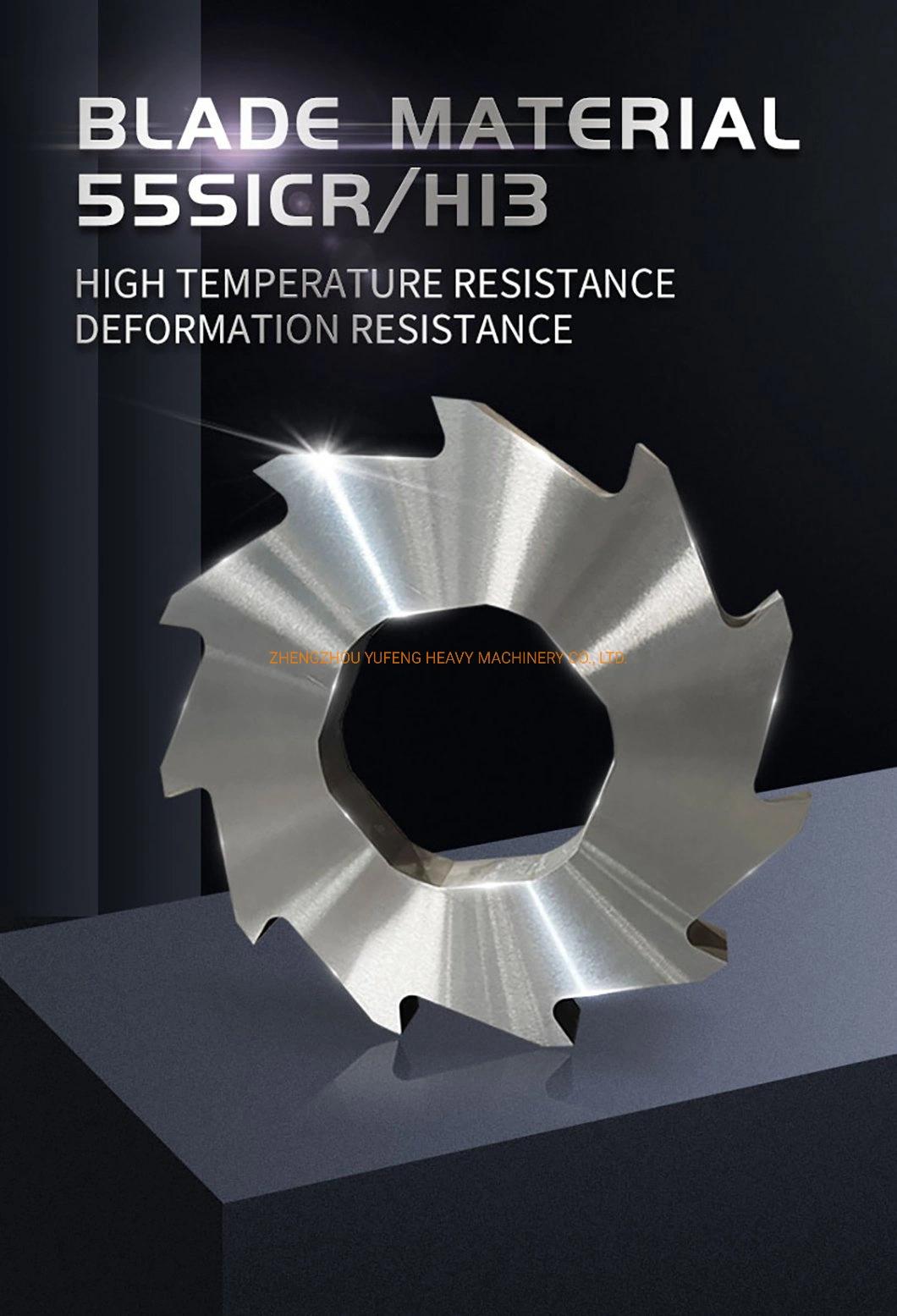

• Blade Materials：55crsi, Also Can Be Customized
• Blade Number：25 Pieces
• Blade Size：Diameter=200mm, Thickness=20mm
• Control Panel：PLC Control Cabinet
• Transport Package：Wooden Case or Container
• Specification：1200*600*1550
• Trademark：Yufchina
• Origin：Henan, China (Mainland)
• HS Code：8479820090
• Production Capacity：10000 Set,Sets Per Month

Basic Info.

Model NO. 500 Knife Roll Solid Knife Roller Automation Automatic Computerized Non-Computerized Certification CE, ISO9001:2008 Model 500 Power(Kw) 7.5kw Main Shaft Speed;(R/Min) 15 Capacity up to 600 Kg/Hr Reducer Model K97 Blade Materials 55crsi, Also Can Be Customized Blade Number 25 Pieces Blade Size Diameter=200mm, Thickness=20mm Control Panel PLC Control Cabinet Transport Package Wooden Case or Container Specification 1200*600*1550 Trademark Yufchina Origin Henan, China (Mainland) HS Code 8479820090 Production Capacity 10000 Set/Sets Per Month

Product Description

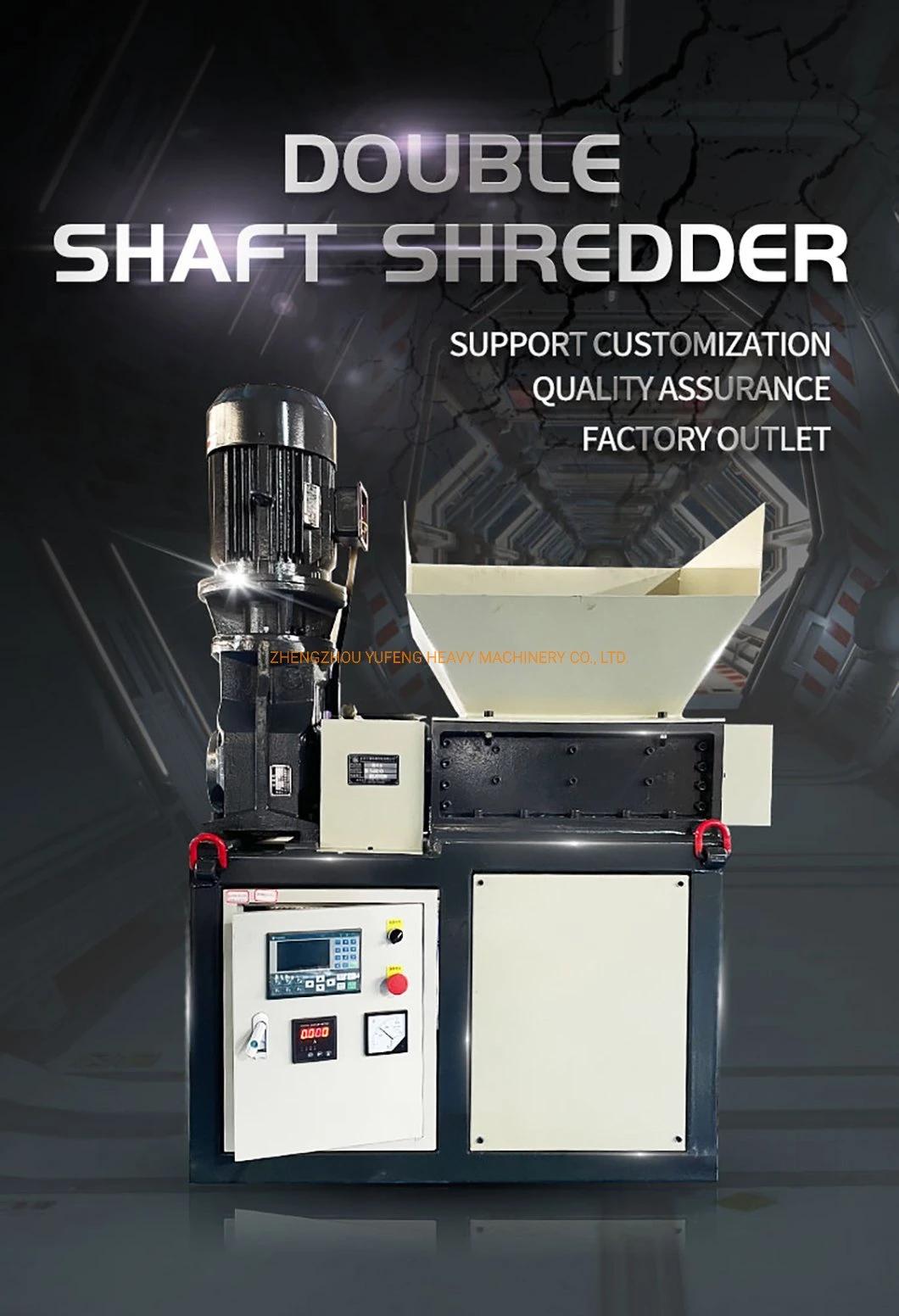

Standard 300kg/h cable fleece shredder machine
Our advanced technology double rollers shredder crusher absorbs the quintessence of shearing crusher from abroad. It absorbs double rollers differential speed flower knife structure, so it solves the problems of easy winding and hard cutting for diferent raw materials.

Raw Materials Application

Plastic	Except for rigid plastics and PVB, other thin plastics can be shredded
Fabric	Cotton, linen, shoes, clothes, textiles
Paper	Books, magazines, newspapers, bags, boxes, office supplies
Metal	light metal, such as copper, tin cans, aluminum cans etc
Kitchen waste	Vegetables, fruits, expired food, plants, foil, gloves
Wood	Thin wood, branches, weeds, leaves, crops

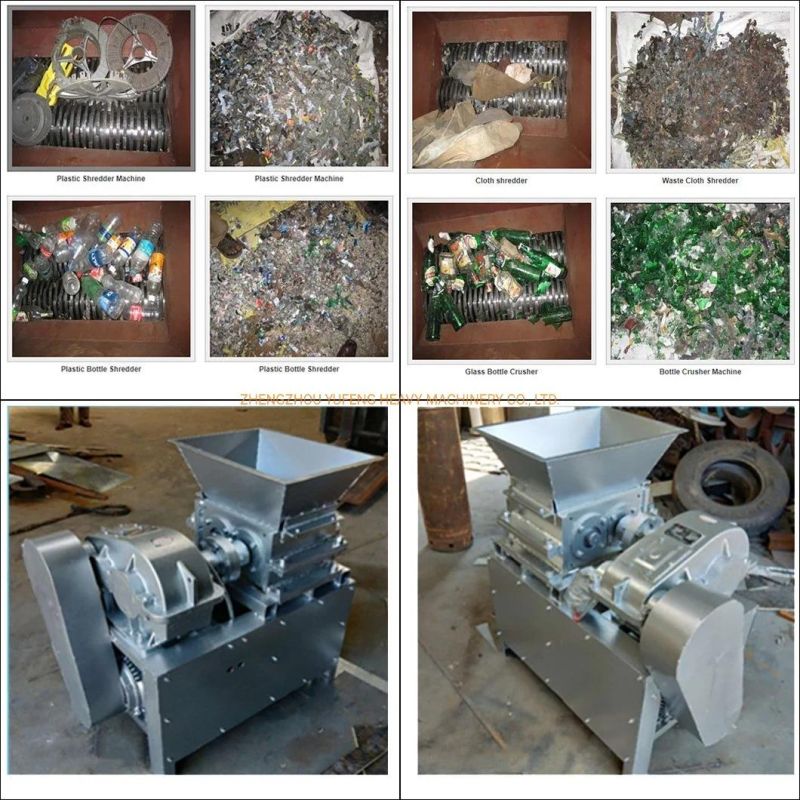

Running Site of Household Garbage Glass Bottle Scrap Fuel Tank Circuit Boards Plastic Shredder

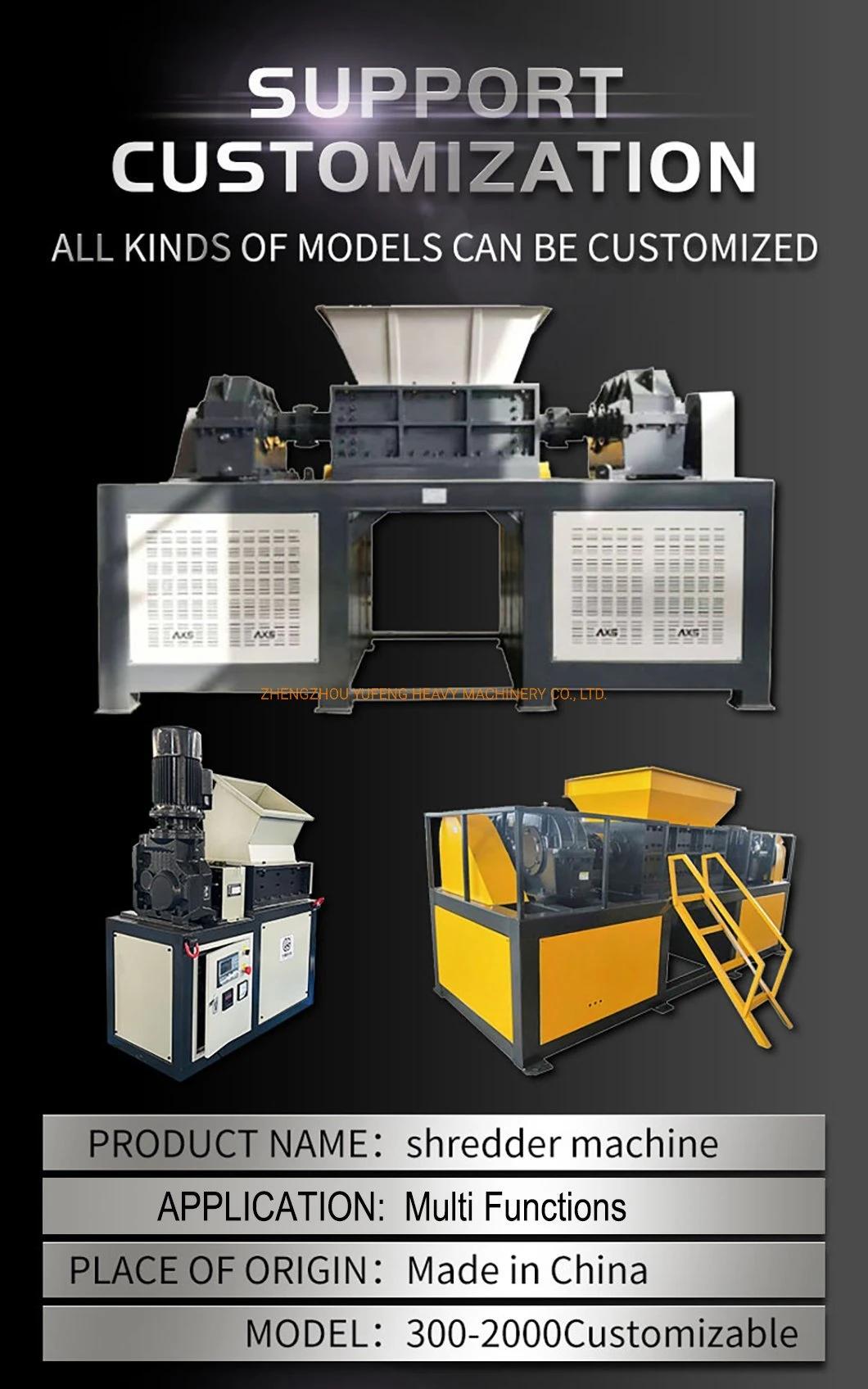

Specification of Plastic Shredder

MODEL	TOOL SPECIFICATION	POWER	NUMBER OF TOOLS	REDUCER	SPEED (r/min)	DIMENSIONS (m)
150	160*10	3KW	15	K76	18-25	0.7*0.4*0.8
200	160*10	3KW	20	K76	18-25	0.7*0.4*0.8
300	180*10	4KW	29	K77	18-25	1.0*0.5*0.9
400	180*10	5.5KW	38	K87	18-25	1.2*0.5*0.9
500	200*20	7.5KW	24	K97	18-25	1.9*1.3*1.5
600	200*10	15KW	48	400	18-25	1.45*0.87*2.2
600	200*20	15KW	24	400	18-25	1.45*0.87*2.2
800	200*20	15KW*2	32	400*2	18-25	2.15*0.87*2.2
800	300*20	30KW*2	18	650*2	18-25	3.4*1.2*2.2
1000	300*25	30KW*2	32	650*2	18-25	3.4*1.25*2.2
1000	300*30	30KW*2	27	650*2	18-25	3.4*1.25*2.2
1000	400*40	45KW*2	20	750*2	18-25	3.4*1.25*2.2
1200	400*30	55KW*2	38	650*2	18-25	4.15*1.25*2.2
1200	400*40	55KW*2	28	750*2	18-25	4.15*1.25*2.2
1500	400*30	75KW*2	48	750*2	18-25	4.15*1.25*2.2
1500	400*40	75KW*2	26	750*2	18-25	4.15*1.25*2.2
1500	400*50	75KW*2	28	850*2	18-25	4.15*1.25*2.2
2000	530*50	90KW*2	38	850*2	18-30	5.25*1.78*2.2
2000	600*60	90KW*2	31	850*2	18-30	5.25*1.78*2.2

Advantage of Different Function Crusher Shredder
a.Heavy knife, high crushing efficiency
b.Knife and fixed knife are made of alloy steel casting, strong and long lifetime
c.Thick sheet iron frame, high torque resistant, very sturdy
d.The thickness and number of claw knife can be replaced according to different materials
e.Compared with other crushers, it has characteristics of low knife shaft speed low noise and low power consumption
