HDPE Thermal Preinsulated Jacket Casing Thin Wall PE Pipe Extrusion Machine
Qingdao Huashida Machinery Co., Ltd.- After-sales Service:Overseas Installation, Free Technical Supporting
- Warranty:12 Months
- Type:Pipe Extruder
- Plastic Processed:PE
- Product Type:Extrusion Molding Machine
- Feeding Mode:One Feed
Base Info
- Model NO.:HSD 600-1200mm
- Assembly Structure:Separate Type Extruder
- Screw:Single-Screw
- Engagement System:Full Intermeshing
- Screw Channel Structure:Deep Screw
- Exhaust:Don′t Exhaust
- Automation:Automatic
- Computerized:Computerized
- Application:for Producing Pre-Insulated Pipe Jacket
- Pipe Diameter:From 600-1200mm
- Raw Material:PE
- Calibration Method:Vacuum and Water Spraying Cooling
- Cutting Method:Planetary Cutting
- Transport Package:Standard Package
- Specification:36m*4m*4m
- Trademark:HSD
- Origin:Qingdao China
- HS Code:8477209000
- Production Capacity:1000unit,Year
Description
Basic Info.
Model NO. HSD 600-1200mm Assembly Structure Separate Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Application for Producing Pre-Insulated Pipe Jacket Pipe Diameter From 600-1200mm Raw Material PE Calibration Method Vacuum and Water Spraying Cooling Cutting Method Planetary Cutting Transport Package Standard Package Specification 36m*4m*4m Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 1000unit/YearProduct Description
HDPE Thermal Preinsulated Jacket Casing Thin Wall PE Pipe Extrusion Machine---Pipe diameter range: 600-1200mm
---The extrusion line comprise equipment and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-efficiency single screw extruder

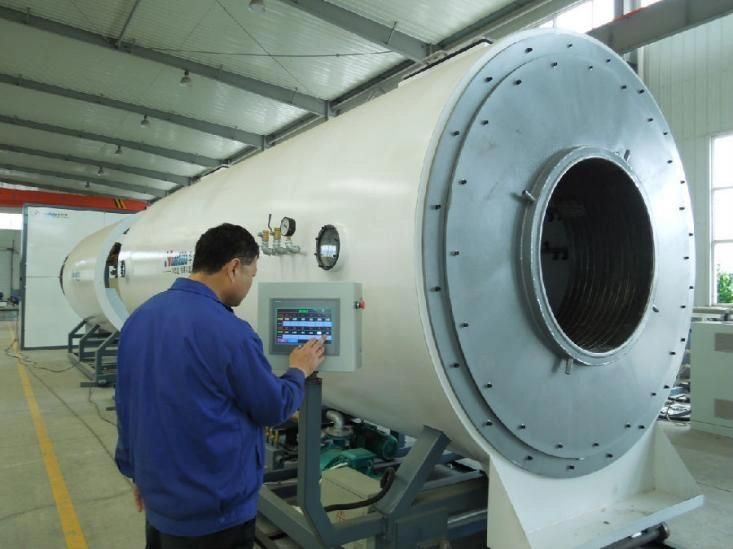

1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker
Style | PE-365/760 | PE-420/960 | PE-850/1372 | PE-960/1680 |
Main extruder | SJ-90/33 | SJ-90/33 | SJ-120/33 | SJ-150/33 |
Pipe diameter | Φ365-960mm | Φ 420-Φ 960 mm | Φ 850-Φ 1372 mm | Φ 960-Φ 1680mm |
Capacity | 550-700kg/h | 550~700 kg/h | 700~900 kg/h | 800-1200kg/h |
Installed power | 360kw | 380 kw | 440 kw | 580kw |
Length | 35m | 36 m | 40 m | 48m |
I. Pipe Usage
---HDPE jacket pipe is out casing of thermal insulating pipe, which is widely used in central heating, oil, natural gas and other industrial areas.
II. Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ90/33---600-700kg/h
SJ120/33---800-900kg/h
SJ150/33---1000-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is less waste pipe and material, no need for workers to crush waste material.
3. High-efficiency.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5. No need to trim edge, once forming.
III. Main machine- High-efficiency single screw extruder

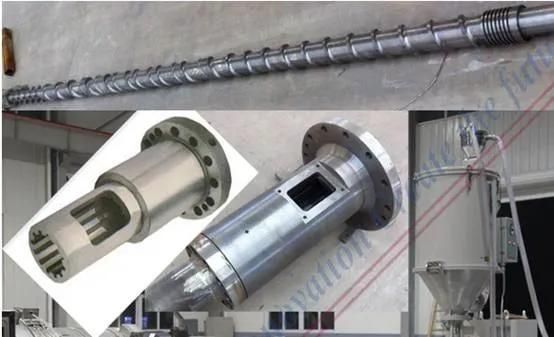

---Single screw is with barrier & mixing head; barrel is a new model with slotting (channel), Both make the security of good jellification, large output and stable performance.IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer;s requirement, to be with PLC, or without. V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- SIEMENS AC contactors
