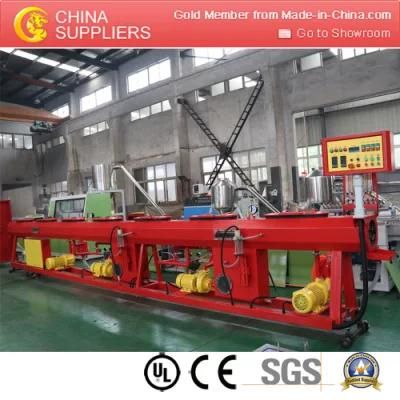

PVC Window Board Making Machine
GPM Machinery (Shanghai) Co., Ltd.- Product Type：PVC Profile
- Screw：Double-Screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, UL, QS, GMP
- Customized：Customized
Base Info
- Model NO.：GYF
- Product Name：PVC Window Board Production Line
- Other Name：PVC Window Board Extrusion Line
- Raw Material：PVC Powder
- Usage：Window,Door,Door Frame
- Motor：Simens
- Inverter：ABB Brand
- Contactor：France Schneider Contactors
- Temperature Control：Japan Omron
- Output：60- 1000kg,H
- Motor Power：15kw-160kw
- Transport Package：PE Film Winding Wrapping
- Specification：100mm-400mm
- Trademark：GPM
- Origin：Shanghai
- HS Code：8477209000
- Production Capacity：500 Sets,Year
Description
SPECIFICATIONS FOR PLASTIC-STEEL PROFILE EXTRUSION LINEModel Screw Diameter(mm) Main Moter(kw) Output Capacity(kg/h) GSZ-45 45/100 15/18.5 60/80 GSZ-51 51/105 18.5/22 80/110 GSZ-55 55/110 22/30 120/150 GSZ-65 65/132 37/45 280/350 GSZ-80 80/156 55/77 380/450 GSZ-80A 80/173 75 500/650 GSZ-92 92/188 110/132 700/850 GSZ-95 95/196 132/160 1000
Name: GearBox
Brand: GPM
Original: Shanghai, China
High efficiency single screw extruder , high output.
Name:Feeding mechanism
Brand: GPM
Original: Shanghai , China
Parallel twin-screw feeder, suitable for the feeding of powder and mixture .
Name: Haul-off
Brand: GPM
Original: Shanghai , China
New-designed haul-off structure , strengthen the design of torque .
Name: No-dust Cutter
Brand: GPM
Original: Shanghai , China
High precision cutting, no dust and low noise.
Smooth fine quality steel doors and windows, inside and outside the consistent quality without the need for special surface treatment, easy processing, after cutting, welding process, the length, width and diagonal windows can finished within plus or minus 2MM, precision, angular intensity can up to 3000N or more.
Sound insulation performance
The main area that accounts for about 80% of the sound insulation glass, insulation plastic doors and windows market some products based on the transmission principle and lotus collaboration acoustic resonance, using different combinations of glass structures, such as hollow glass plastic windows, ordinary double glazing, enhanced sound insulation windows and doors. In terms of the structure of windows and doors, high-quality tape, the use of plastic sealing parts, steel doors and windows so that the sealing performance results are obvious.
For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
mob : +86 13817556740
Jeremy He
