Plastic Machinery

Home > Product > Plastic Pipe Machinery

High Speed PE Pipe Water Supply Pipe Plastic Making Extrusion Machine

Suzhou Midtech Industry Co., Ltd.
  • Product Type：PE Water-supply Pipes
  • Screw No.：Single-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：ISO9001:2008
  • Customized：Customized

Base Info

  • Condition：New
  • High Capacity：400kg,Hr
  • Transport Package：Wood
  • Specification：sgs
  • Trademark：middle tech
  • Origin：Zhangjiagang City
  • HS Code：84772090
  • Production Capacity：300kg,Hr

Description

Basic Info.

Condition New High Capacity 400kg/Hr Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84772090 Production Capacity 300kg/Hr

Product Description

HDPE/PPR/LDPE
plastic Pipe extrusion and production line

PART 1 INTRODUCTION:
 High Speed PE Pipe Water Supply Pipe Plastic Making Extrusion Machine

Through technology combination and continuous innovation, Midtech pleased to provide energy saving (15% down), high capacity (exceed 25% ), high standard (PLC Intelligence), reliable quality (SKF bearing) PE/LDPE/PPR Extruder and pipe extrusion and production line.

Pipe Diameter16-6332-12575-250110-450315-630315-800
Extruder45/3365/3375/3390/33120/33150/33
Cavitysingle strandsingle strandsingle strandsingle strandsingle strandsingle strand
DownstreamLG63LG125LG250LG450LG630 LG800
Total power(kw)70150230380550800
High Speed PE Pipe Water Supply Pipe Plastic Making Extrusion Machine

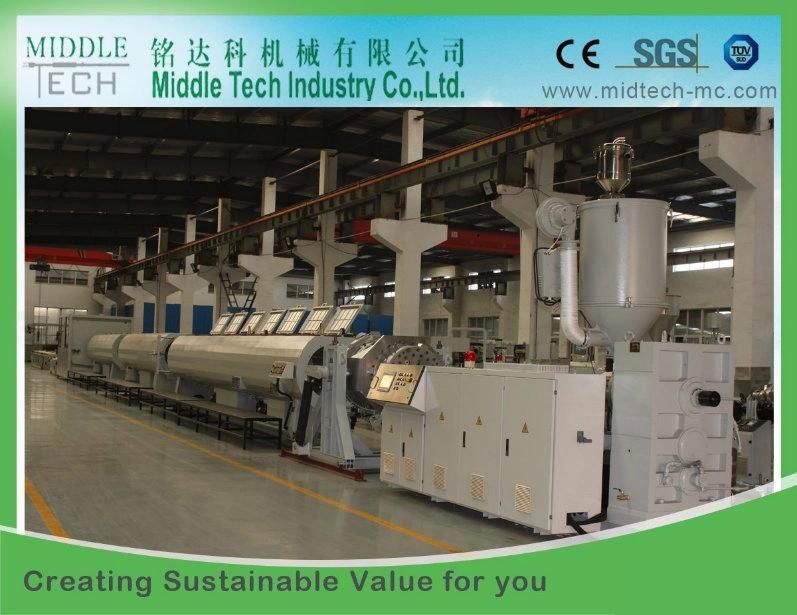

PART 2 Working flown of the pipe production line

Feeder• To feed material into extruder;

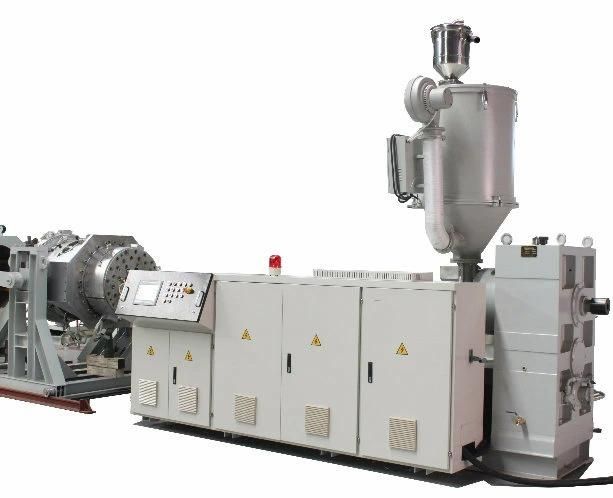

Extruder• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Up to 30m/min of maximum lineal extrusion speed for small pipes
• Suitable for multi-layers co extrusion from 1-5 layers;
• Intelligent PLC controlling system with operation-friendly interface.
Die head• PCA increased extrusion speed and decrease the cooling length,  quality inner wall surface;
• The Bronze bush is wear-resisting and efficiency cooling of pipe surface.
Calibration Tank
Spray tank		• Big water flown filtration system
• Mechanical Water level and temperature control system
Haul off• Variant 2-16 claws based on different pipe diameters,
• Equipped with servo control system for wide diameter range.
Cutter• Chip-free cutter ensuing flat and smooth cutting surface of pipe.
Stacker• Discharge driving by air cylinder
Winder• Suitable for diameter from  5mm-110mm

PART 3 Why choose us
High Speed PE Pipe Water Supply Pipe Plastic Making Extrusion Machine

If you do need any support, please don't hesitate to contact us.
