• Model NO.：SPC-760
• Weight：6000-8000kgs
• Power(W)：45kw
• Warranty：1 Year
• Control Method：PLC
• Forming Area：760X420mm
• Transport Package：Plastic Film
• Specification：CE
• Trademark：Sinoplast
• Origin：Wenzhou, China
• HS Code：8477409000
• Production Capacity：50 Sets Per,Year

Basic Info.

Model NO. SPC-760 Weight 6000-8000kgs Power(W) 45kw Warranty 1 Year Control Method PLC Forming Area 760X420mm Transport Package Plastic Film Specification CE Trademark Sinoplast Origin Wenzhou, China HS Code 8477409000 Production Capacity 50 Sets Per/Year

Product Description

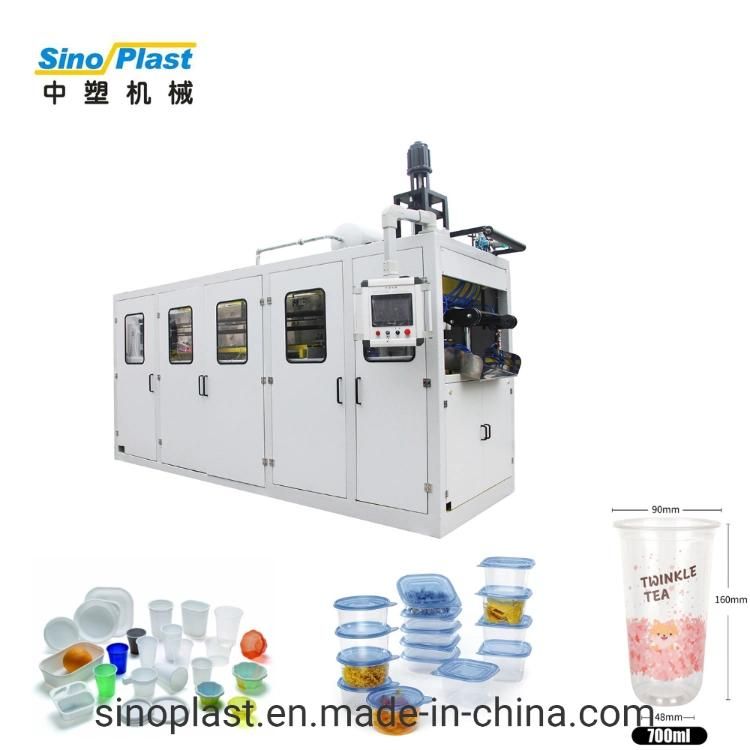

Plastic Cup/Lid/Bowl/Plate Thermoforming Machine/Plastic Cup/Lid/Bowl/Plate Making Machine







I. Usage:

SPC-760 Automatic Disposable Plastic Cup/Lid/Bowl/Plate Thermoforming Machine  is mainly used to formPP/PS/PET/PVC sheet into various kinds of disposable plasti cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup, etc. It could also make some regular shape products, such as plate, bowl, cover, lid, dish, etc with different moulds.


II. Main Features:

1) The stretching of plugs inside of the upper mould are controlled by air cylinder.

2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter. The feeding length is controlled by the encoder.

3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.4) The up mould is fixed and the down mould movement is driven by twin cam. 5) There are total 16 heating zones. The temperature of each zone is controlled by Temperature control module.

6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.

7) We adopt square steel to make the machine frame stronger.

8) This machine adopt PLC and touch screen to control.


III. Main Technical Parameter:

Model	SPC-760A
Mould Driving Method	Cam
Approximate Max. Forming Area	760 x 320 mm
Approx. Running Speed	15-30 Stroke / min  approx. during production
Approx. Sheet width required for feeding.	500 - 760 mm in rolls.
Mode of cutting arrangement.	In mould automatic
Sheet thickness Range	0.20 - 2.0 mm
Material	PP, PS, PET, PVC,PLA
Max. Draw depth, i.e. cup length.	160 mm (Could be special design)
Oil Pump Motor Power	11KW, 6P
Sheet Feeding Motor	2.2KW
Max. Sheet roll diameter.	800 mm
Heating arrangement	Top + bottom heating with IR Ceramic Heater(120pieces, 650W)
Temperature Controller & Thermocouple.	PID  K-Type
Type of Mould	Multi cavity 1 - 3 row.
Approx. Electrical Consumption	45KW/hr
Approximate Dimension	L3100×W1500×H2500 (mm)
Approximate Weight	4000Kg



According to round cup with Dia.=75mm, we could make a mould with

20 cavities or 21 cavities for this machine
