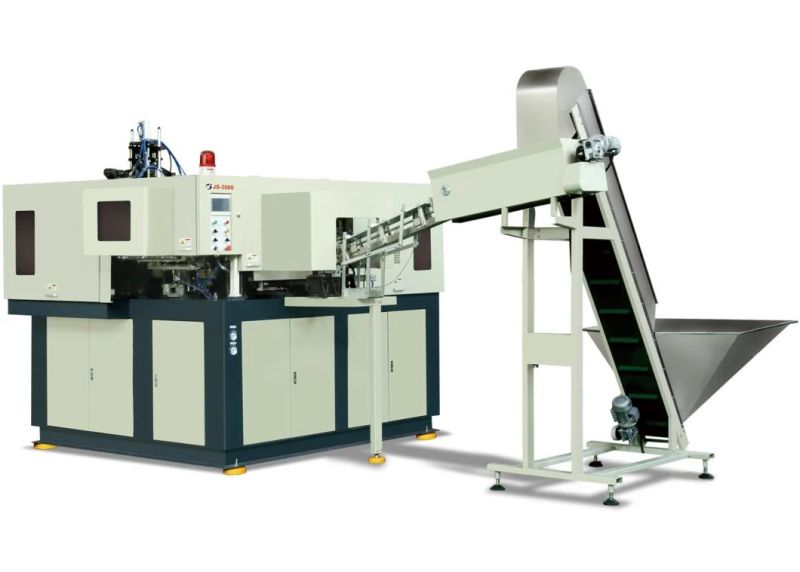

3 Cavities Pet Plastic Blow Molding Machine with CE Automatic Blow Molding Machine

Taizhou Jiansheng Machine Co., Ltd.
  • Type:Pet Bottle Blowing Mould Machine
  • Raw Material:PET
  • Making Method of Parison:Stretch Blow
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE

Base Info

  • Model NO.:JS3000
  • Bottle Liter:0.2L-0.7L
  • Machine Cavity:3
  • Machine Output:2700-3000
  • Transport Package:Wooden Box
  • Specification:SGS, CE
  • Trademark:JS
  • Origin:Huangyan Taizhou Zhejiang
  • HS Code:84773090
  • Production Capacity:2700-3000

Description

3 Cavities Pet Plastic Blow Molding Machine with CE Automatic Blow Molding Machine

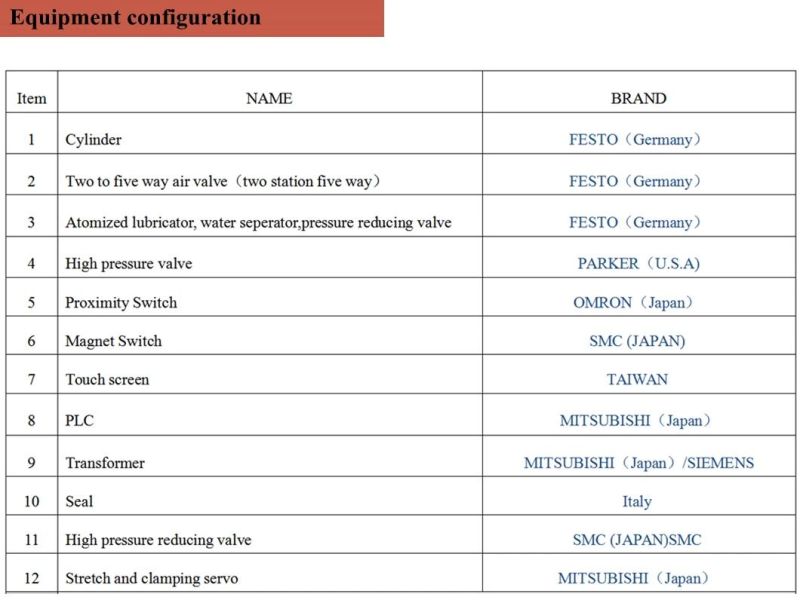

1.High quality compact machine Most popular pet bottle blowing machineJS-3000 With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)

2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain

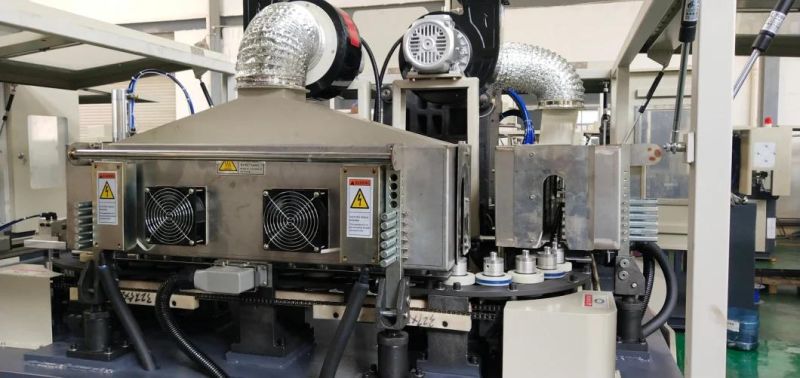

5. Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.

 Model No.UnitJS-3000Production capacityBPH2700-3000Number of Cavity/3Clamping forceKN180Mould opening strokemm100Stretch strokemm280Max.Container Volumeliters0.7Max. Neck Sizemm40Max.Bottle diametermm70Max.Bottle heightmm270Installed Powerkw31Max.Heating Powerkw40Operating Air Pressurekg/cm²8Operating Air Consumptionliters/min1500Blowing Air Pressurekg/cm²35Blowing Air Consumptionliters/min1800Cooling Water Pressurekg/cm²4-5Cooling Water Temperature°C10-20Cooling Water Flowliters/min100Measurement(L*W*H)m2.6*2.2*2WeightTon3

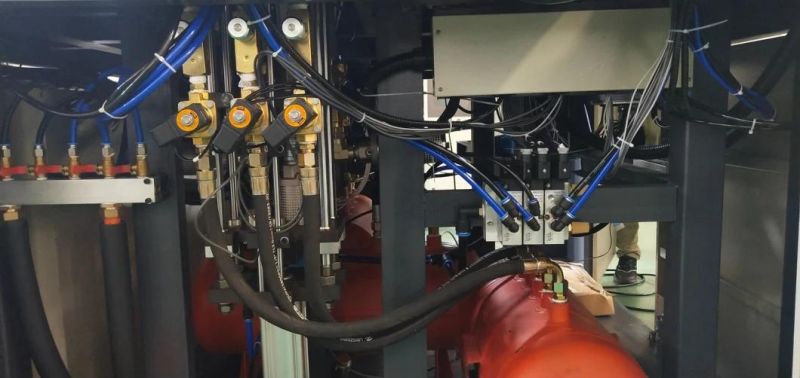

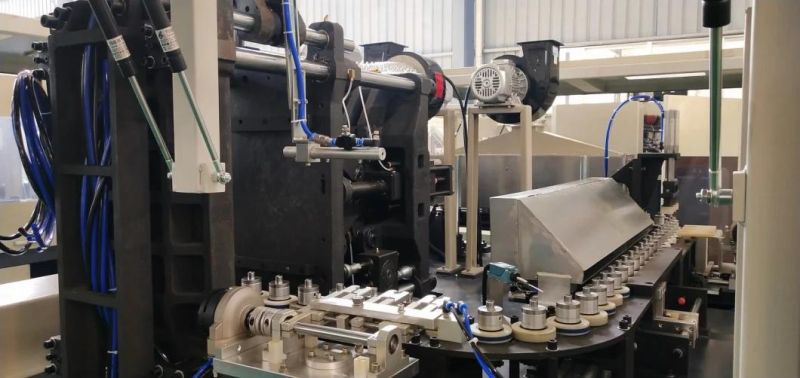

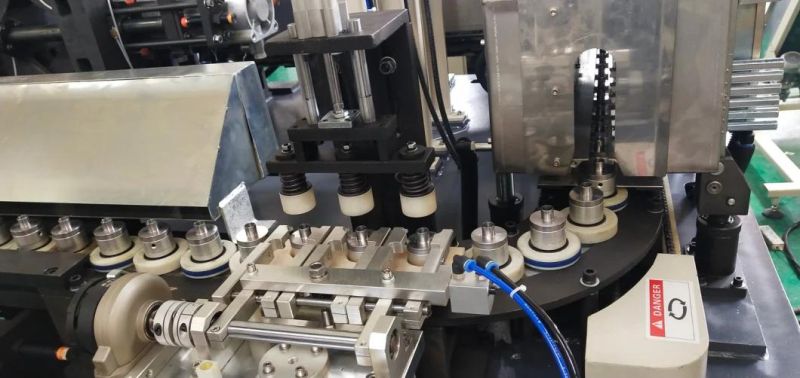

Internal details of the Machine3 Cavities Pet Plastic Blow Molding Machine with CE Automatic Blow Molding Machine3 Cavities Pet Plastic Blow Molding Machine with CE Automatic Blow Molding Machine 3 Cavities Pet Plastic Blow Molding Machine with CE Automatic Blow Molding Machine3 Cavities Pet Plastic Blow Molding Machine with CE Automatic Blow Molding Machine
