Tape Winder for PP Yarn to Make PP Woven Bag

Zhejiang Sanlong Universal Machinery Co., Ltd.
  • Transport Package：Wooden Case
  • Specification：ISO9001
  • Trademark：SANLONG
  • Origin：China

Base Info

  • Model NO.：SJ-ST SERIES

Description

Basic Info.

Model NO. SJ-ST SERIES

Product Description

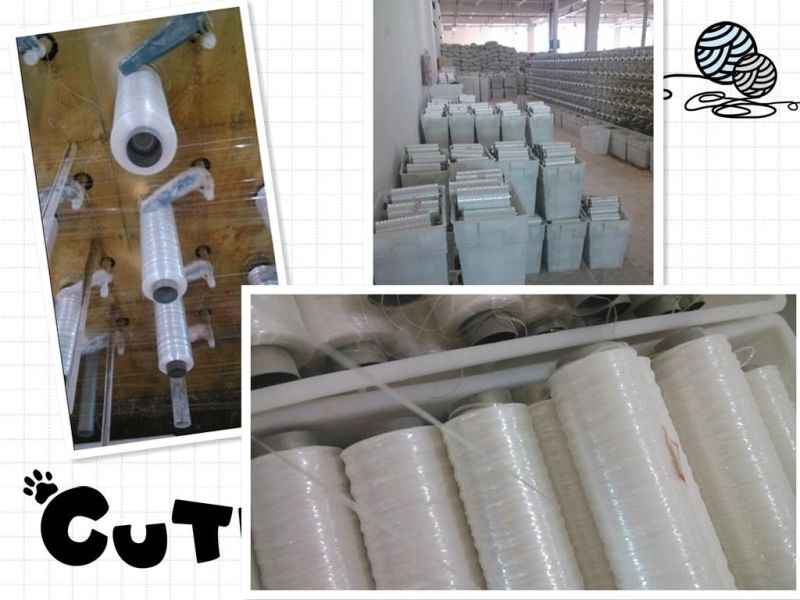

Tape Winder for PP Yarn to Make PP Woven Bag
This machine is newly researched and designed by our factory based on the model of combined cam, it winds up the plastic tape by the back and forth movement of the swinging stem driven by the cam.

It takes less effort and it runs more stable. With less friction factor and longer durability, the prime motor is 60% less in requirement of power consumption. It adapts to bobbins of Dia. 38*230mm, and it is the ideal mate of SJ-L series plastic tape extruder.

Tape Winder for PP Yarn to Make PP Woven Bag
Item

Type
 		Winder Layers
 		Spindle
Number
 		Bobbin Winding Width
(mm)
 		Winding-Tape Diameter
(mm)
 		Line Speed
(r/min)
 		Prime
Motor
Power
(kw)
 		Gross
Motor
Power
(kw)
 		Installation Dimension
(L × W × H) (mm)
 		Weight
(kg)

SJ-ST220/5
 		5 220 200
 		≤ 100
 		50-160 2.2
 		15.5
 		6200×1450×1560
 		3500

SJ-ST260/5
 		5 260 200
 		≤ 100 50-160
 		2.2
 		18.5
 		7200×1450×1560
 		4200

SJ-ST300/5
 		5 300 200
 		≤ 100 50-160
 		2.2
 		20.2
 		8200×1450×1560
 		4800

SJ-ST380/5
 		5 380 200
 		≤ 100  50-160
 		3
 		25.8 10300×1450×1560
 		5800

SJ-ST420/5
 		5 420 200
 		≤ 100 50-160
 		3
 		28.2
 		11200×1450×1560
 		6300

SJ-ST480/5
 		5 480 200
 		≤ 100 50-160
 		3
 		31.8
 		13000×1450×1560
 		7100

SJ-ST520/5
 		5 520 200
 		≤ 100 50-160
 		4
 		35.2 13400×1450×1560
 		7600

SJ-ST580/5
 		5 580 200
 		≤ 100 50-160
 		4
 		38.8
 		15300×1450×1560
 		8400

SJ-ST620/5
 		5
 		620 200
 		≤ 100 50-160
 		4
 		41.2 16200×1450×1560
 		9000
