Conventional Type Lab Extruder for Powder Coating Manufacturing
Dongsun Powder Processing Equipment Co., Ltd.- After-sales Service：Available
- Warranty：One Year
- Type：Thermosets Powder Extrusion
- Plastic Processed：Powder Paint Extruder
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Model NO.：TOPSUN
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Output：1-30kg,H
- Main Motor：3-5.5kw
- Screw Dia.：30
- L/D Ratio：16:1
- Screw Rpm：0-500
- Heating：3.2kw
- Feeder Motor：0.18kw
- Cooling Roller Motor：0.25kw
- Overall Dimensions：1430*550*1300
- Transport Package：Pallet, Case
- Specification：TSX
- Trademark：TOPSUN
- Origin：Yantai, China
- HS Code：8477
- Production Capacity：5 PCS,Month
Description
Basic Info.
Model NO. TOPSUN Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Output 1-30kg/H Main Motor 3-5.5kw Screw Dia. 30 L/D Ratio 16:1 Screw Rpm 0-500 Heating 3.2kw Feeder Motor 0.18kw Cooling Roller Motor 0.25kw Overall Dimensions 1430*550*1300 Transport Package Pallet, Case Specification TSX Trademark TOPSUN Origin Yantai, China HS Code 8477 Production Capacity 5 PCS/MonthProduct Description

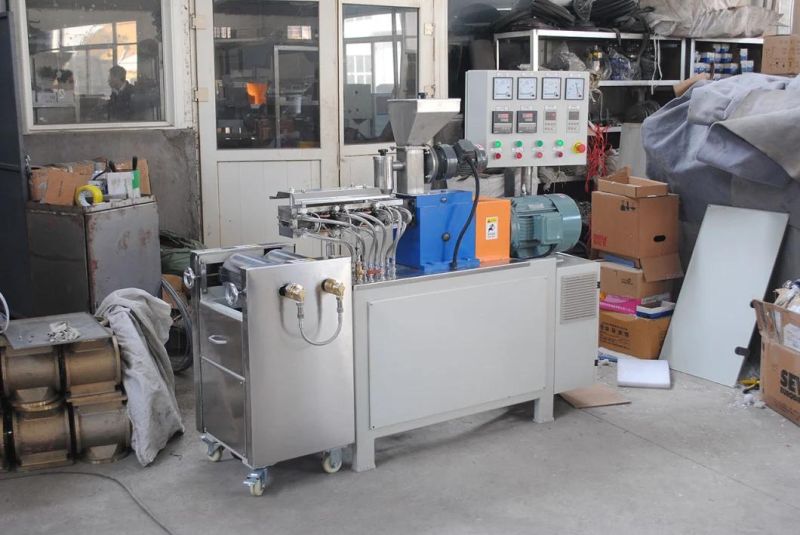

Table-Top Extruder:
Features:
Portable and low cost
Suitable for small batch production
Suitable for formulation test and making samples
Accurate auto temperature control, high cooling & heating exchange
Hinged clamshell type barrel opening, segmented liners
Screww and barrel adopt conventional type or special material lik Cr12MoV CPM ets
Quite gearbox noise with low dB level
Low energy consumption consumption.
Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistant quality, effective communication, responsible service.
