• Model NO.：FB-H
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Machine Weight：2700kgs
• Certification：CE, ISO9001:2008
• Suitable Material：LDPE,HDPE,LLDPE
• Output：46kg,H
• Die Size：40 and 80mm
• Transport Package：Wooden Package
• Specification：4600*2000*4000mm
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：8477309000
• Production Capacity：30 Sets,One Month

Main Technical VariablesModelFB-H-500FB-H-600FB-H-700FB-H-800Screw diameter(mm)55mm55mm60mm65mmScrew L/D RatioL/D28:1L/D28:1L/D28:1L/D28:1Screw rotation10-100r/min10-100r/min10-100r/min10-100r/minPower of main motor15kw15kw18.5kw22kwMax.Extrude Output46kg/h46kg/h60kg/h70kg/hSingle-face Thickess of film0.01-0.10mm0.01-0.10mm0.01-0.10mm0.01-0.10mmMax Film Folding Dia.400mm×2500mm×2600mm×2700mm×2Total Power26kw26kw30kw40kwMachine of weight2700kg2800kg3200kg3600kgOverall Dimension(L×W×H)4600×2000×4000mm4800×2200×4300mm5000×2400×4800mm6800×2600×5500mmDesign and specifications are subject to change without notice.3.Spare Part List:

1.	filter	1 M	8.	electric -testing pen	1 pcs
2.	magetic stone	1 pcs	9.	hexageonic wrench	1 pcs
3.	air pipe	1 pcs	10.	glove	2 pairs
4.	8-10 open and wrench	1 pcs	11.	Steady Bar	1 pcs
5.	12-14 open and wrench	1 pcs	12.	Mould Pipe	1 pcs
6.	14-17 open and wrench	1 pcs	13.	electric-thermal couple (E)	2 pcs
7.	17-19open and wrench	1 pcs	14.	screw heater(stainless steel)	1 pcs

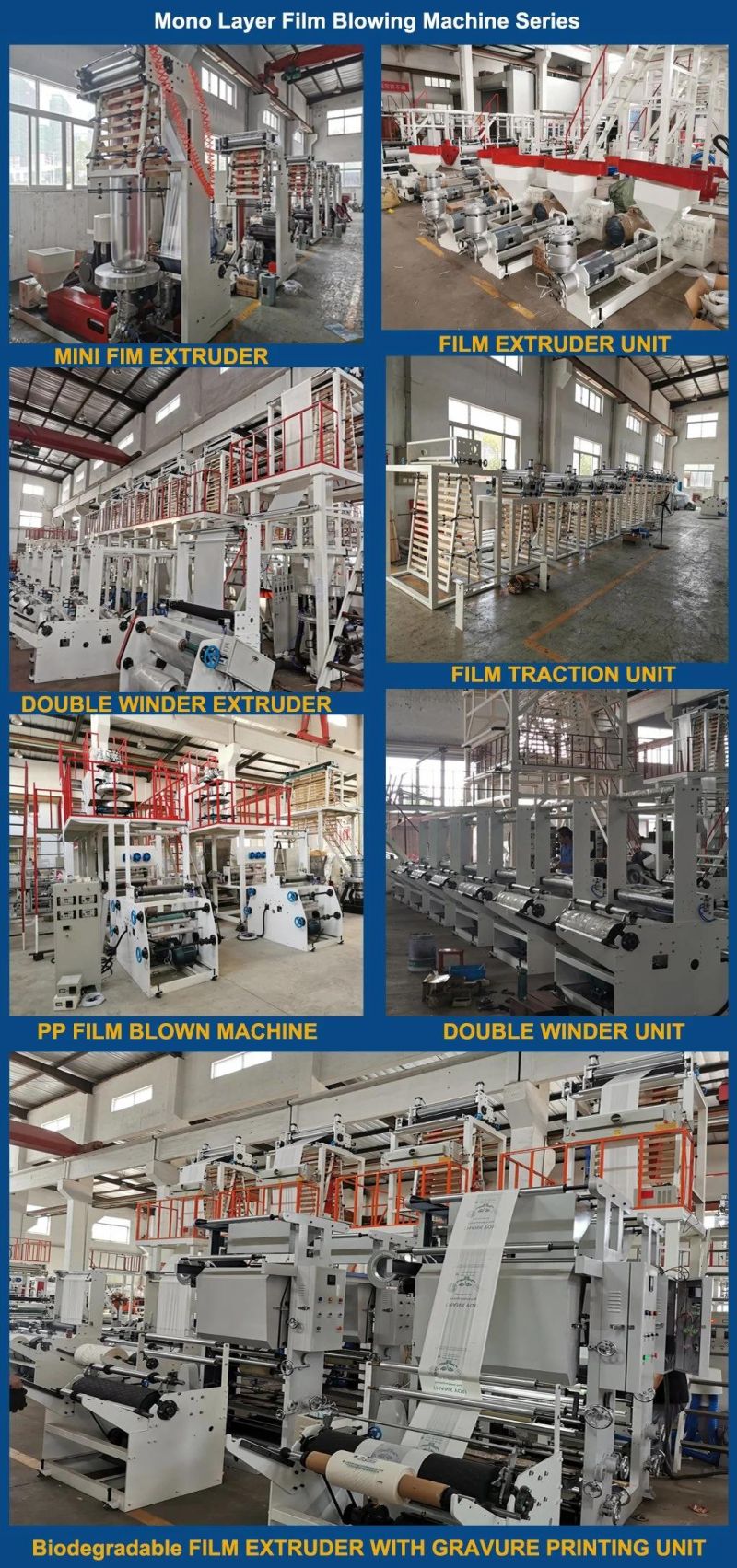

4. Machine Pictures for Reference:

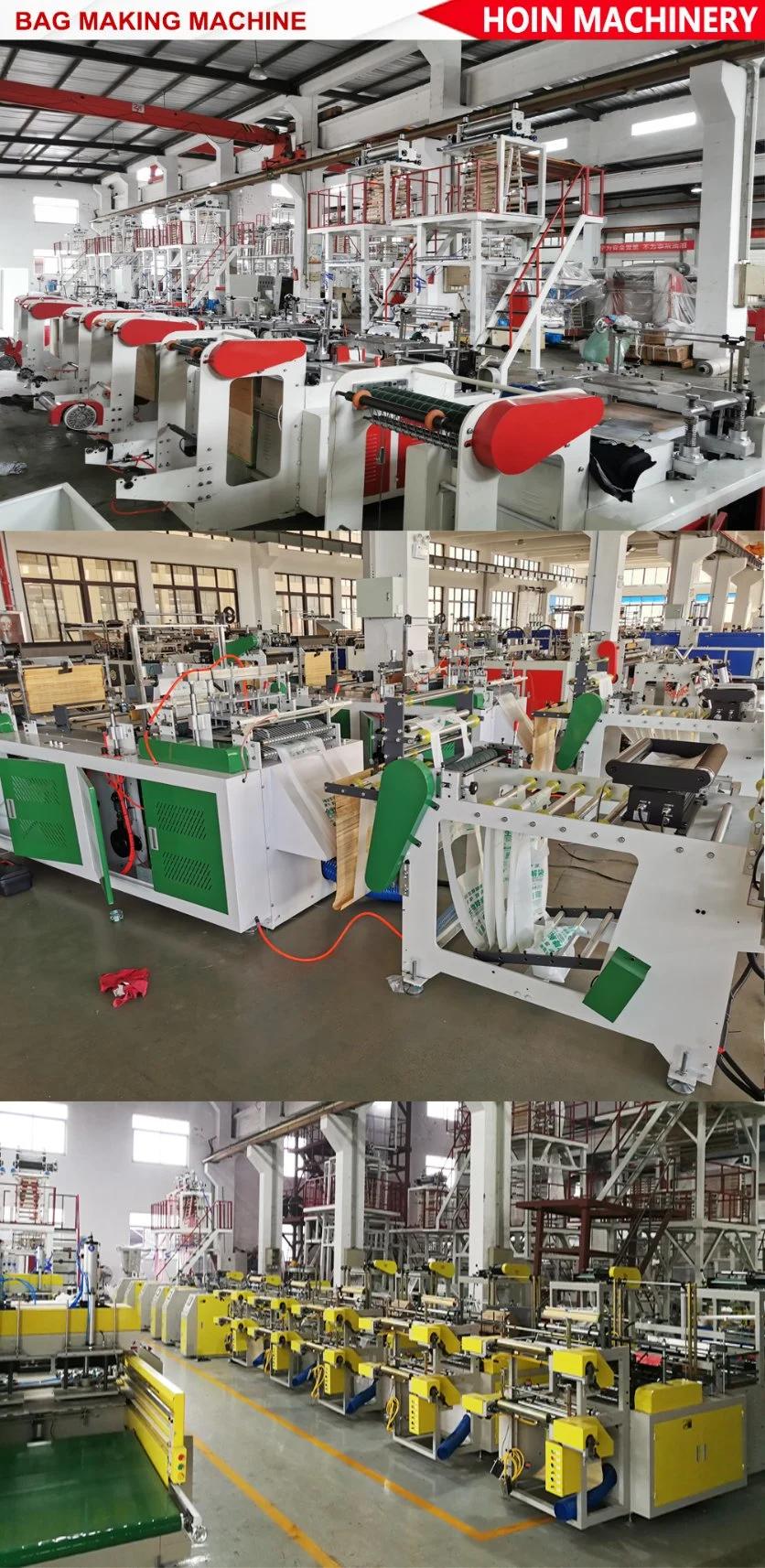

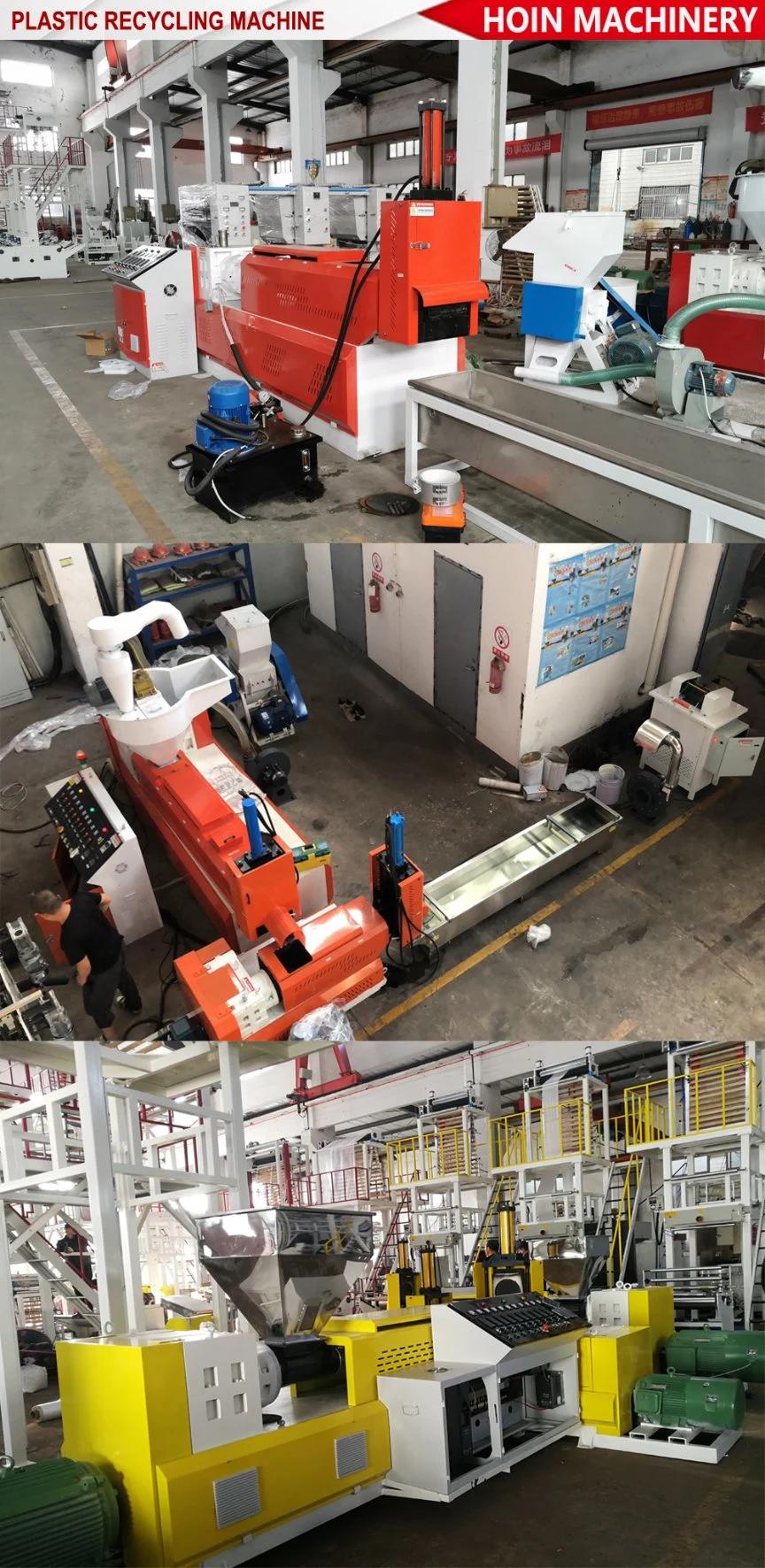

5. Workshop of HOIN

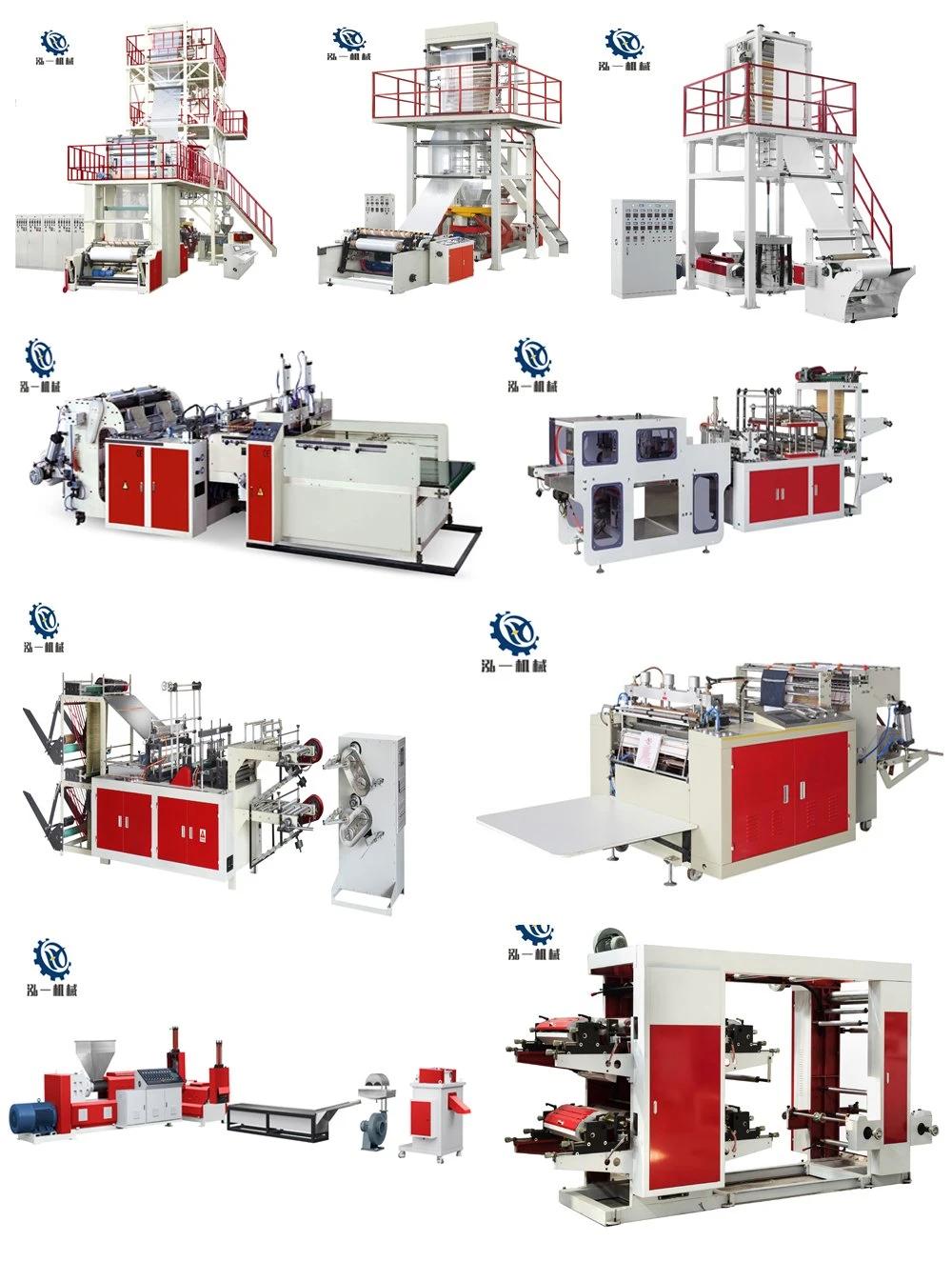

6. More Products Optional:
7.After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query please feel freely to contact with us!
