• Model NO.：CPU30J-D
• Certification：CE, ISO9001:2008
• Transport Package：Plywood Box
• Specification：2500*1500*2500mm
• Trademark：ZCE
• Origin：China
• HS Code：8477800000
• Production Capacity：50,Month

Basic Info.

Model NO. CPU30J-D Certification CE, ISO9001:2008 Transport Package Plywood Box Specification 2500*1500*2500mm Trademark ZCE Origin China HS Code 8477800000 Production Capacity 50/Month

Product Description

Product Description

Application: applicable to the manufacture of casting polyurethane elastomer products whose cross-linking agent is MDI etc. Polyurethane and vacuum degassing can be synthesized in the machine. It produces polyurethane elastomer products with middle and low hardness.

Features:
1.Independent PLC control system in the branch temperature controller o each group.With special electric heating system, oven, piping and valves which can be adjusted separately; multi-point temperature control device is used to ensure that the raw materialto maintain a constant temperature throughout the cycle process; temperature errors ≤ ±2 ºC.
2.The mixing device is equpped with stalic pressure balance device (patented technology), which removes flow error and improve measuring accuracy, meanwhle the stabllity is better; varlable cross-section straight tooth conical mixing head is used 1o ensure no visible bubbles in products.
3. Equipped with the color paste control system and the color paste directly goes into the mixing device; dtterent colors can be switched at any time; the mixing is uniform and the metering is accurate.
4. Adopt the imported PCL cortoller to monitor the entire device control system; it will automalically make judgment of abnormity, diagnosis and alarm, abnormal factors display, PLC module control, casting, automatic cleaning and air impact; stable performance and strong operabllty.

Working Condition

Component Name	Mixing Ratio	Temperature(ºC)	Viscosity(CPS)
A Prepolymer	100	Room Temperrature-110	100-3000
B MDI Semi-Prepolymer	60-150	Room Temperrature-110	100-3000
C 14 Butanediol or BDO	4-15	Room Temperrature-130	100-3000
Catalyst	0.3-3	Room Temperrature	50-2000
Color Paste	0.5-3	Room Temperrature	50-2000

Main Parameters

ITEM/MODEL	CPU30J-D1	CPU30J-D2	CPU30J-D3	CPU30J-D4
Total Discharge Amount(g/min)	250-2500	1000-5000	3000-10000	5000-15000
A Tank Capacity (L)	160	160	250	250
B Tank Capacity (L)	160	160	250	250
C Tank Capacity (L)	30	30	80	80
Pouring Head Stirring Speed(r/min)	3000-5000	3000-5000	3000-5000	3000-5000
Outline Size (L*W*H)(mm)	1790*2940*2450	1790*2940*2450	1790*3040*2450	1790*3040*2450
Total Power (KW)	35	38	40	40
Weight (kg)	2680	2680	2850	2850

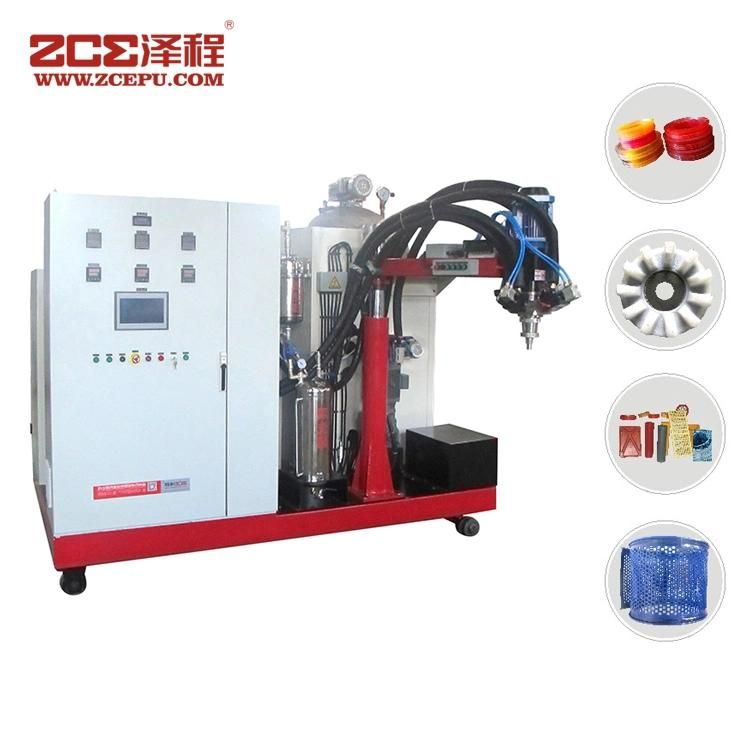

Product Photos

Company Information

Certificate
Packaging

FAQ
