PP/PE Flat Yarn Making Machine
Zhejiang Sanlong Universal Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PP
- Product Type：Granulating Extruder
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：SJ-L SERIES
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Non-Computerized
- Transport Package：in Nude
- Trademark：SANLONG
- Origin：Wenzhou
- HS Code：8477800000
Description
Basic Info.
Model NO. SJ-L SERIES Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Transport Package in Nude Trademark SANLONG Origin Wenzhou HS Code 8477800000Product Description

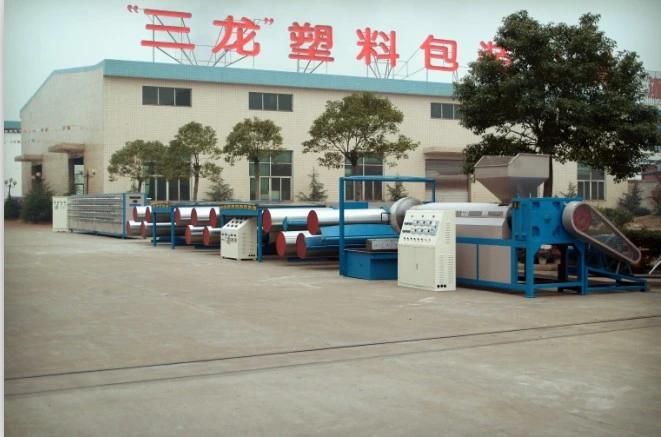

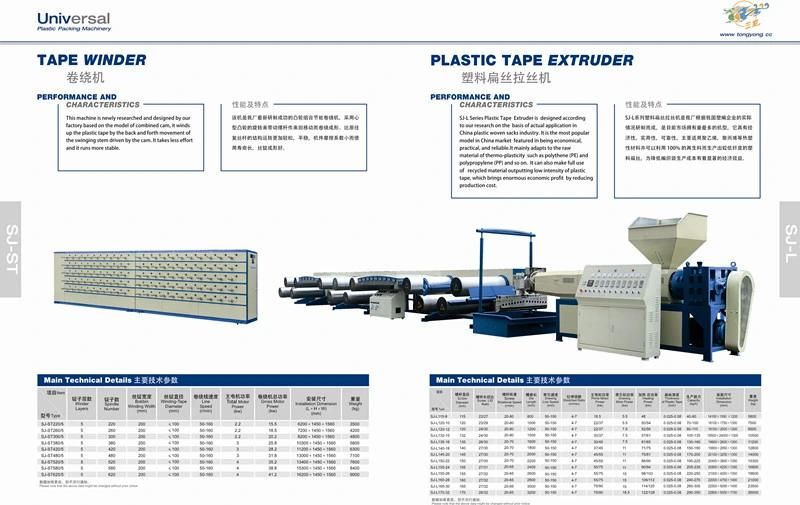

SJ-PLZ Plastic tape extrusion stretching line is specially designed for PP and HDPE with high quality and large capacity.
Capacity: 200~600KG/hour
Available: Woven sack chemical bag foods bag cement bag leno bag jumbo bag geo-textile tarpaulin carpet backing tape artificial grass tape
High Precise T-Die
Simulating extrusion and one-off process molding by CNC guarantee the tape quality.
Intelligentized Control System
The function of data saving, fault alarm can be controlled by touch screen with simple operation.
Haul-Off System
Special design stable flow device and water remove system create the condition for high speed production.
High Speed Winder
By inverter controlled stable tension winding units, the bobbin is formed with equal tension and smooth surface. Speed can be reached 550m/min.
Direct Connection Motor
The motor is directly connected with the extruder, the gear box and connection shaft is removed to save the maintenance requirements and also reduce the power consumption.
| Model | Screw dia. (mm) | Screw L/D | Screw speed (r/min) | Die length (mm) | Drawing Speed (m/min) | Stretch Ratio | Main Motor (KW) | Drawing Machine Power (KW) | Heating Power (KW) | Thickness Of Plastic tape (mm) | Extrusion Capacity (Kg/h) |
| SJ-L145-24 | 145 | 1: 26 | 10-80 | 2400 | 15-120 | 4-7 | 55 | 11 | 120 | 0.03-0.10 | 200-245 |
| SJ-L145-25 | 145 | 1: 26 | 10-80 | 2500 | 15-120 | 4-7 | 55 | 11 | 130 | 0.03-0.10 | 200-245 |
| SJ-L155-26 | 155 | 1: 27 | 10-80 | 2600 | 15-120 | 4-7 | 55 | 15 | 140 | 0.03-0.10 | 210-270 |
| SJ-L155-28 | 155 | 1: 27 | 10-80 | 2800 | 15-120 | 4-7 | 75 | 15 | 165 | 0.03-0.10 | 220-285 |
| SJ-L160-30 | 160 | 1: 28 | 10-80 | 3000 | 15-120 | 4-7 | 75 | 15 | 175 | 0.03-0.10 | 230-300 |
