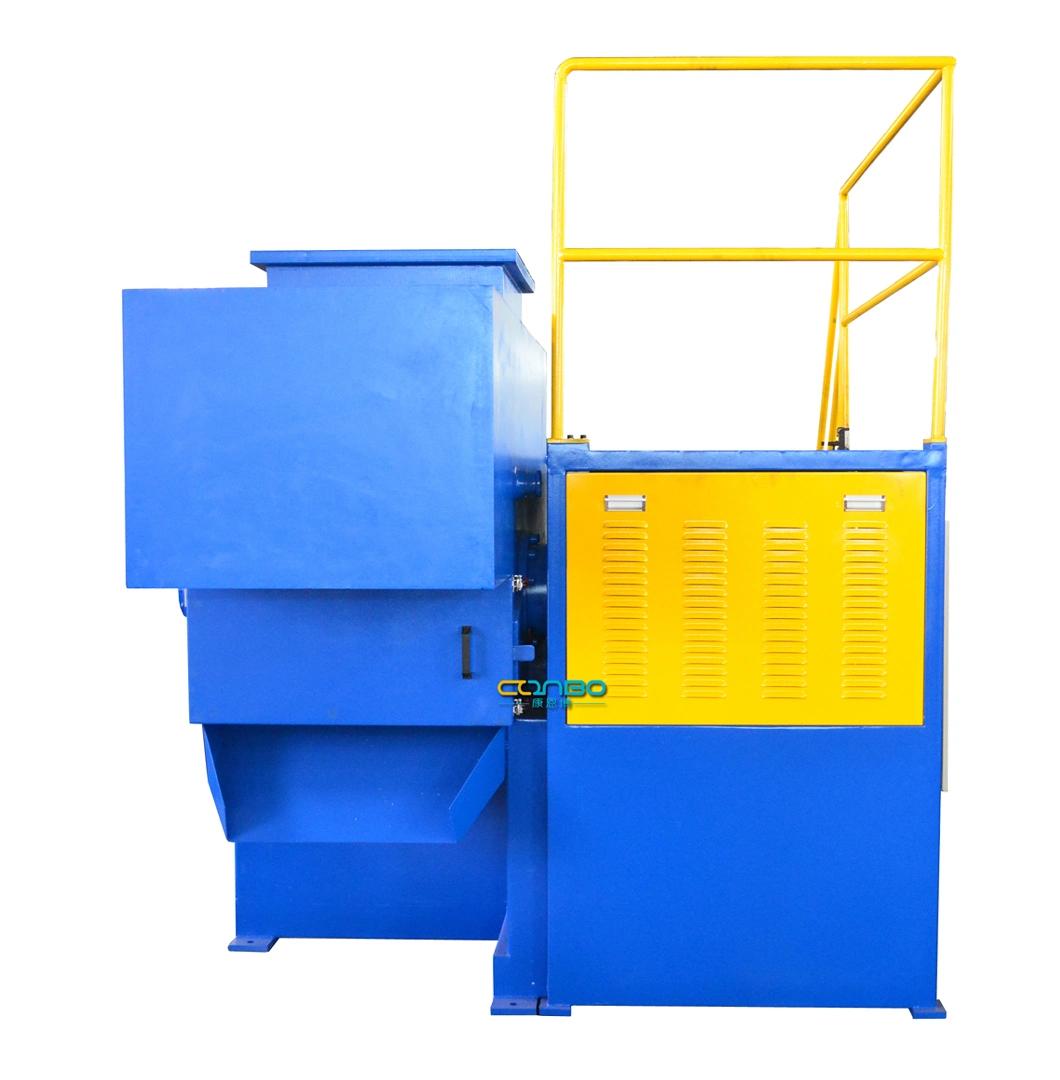

CB-Sp-800 Single Shaft Shredder for Large Plastic PVC HDPE Die Head Materials Wastes

Zhangjiagang Conbo Machinery Co., Ltd.
  • Blade Material：Cr12MOV,SKD-11,D2
  • Rotating Blade Quantity：Different as Different Machine Model
  • Fixed Blade Quantity：2 Sets
  • Rotating Speed：75rpm
  • Rotating Diameter：400mm
  • Motor Power：45kw, 6pole

Base Info

  • Model NO.：CB-SP-800
  • Delivery Time：30 Days
  • Guarantee Period：One Year
  • Electrical Components：Siemens, ABB, Schneider, Omron, etc.
  • Standard Particle Size：Around 60mm (Customized)
  • Transport Package：Plastic Film and Wooden Box
  • Specification：800mm
  • Trademark：CONBOPLAS
  • Origin：Zhangjiagang
  • HS Code：84772090
  • Production Capacity：30 Sets Per Month

Description

No.ItemSpecifications1ModelCB-SP-8002Driving motor power45kw, 6 pole3Suitable max pipe diameter630mm4Suitable wastesplastic pipes, fittings, die head materials, etc.5Feeding mouth dimension680x680mm6Fixed blade quantity2 sets7Rotating blade quantity34+4pcs8Blade hardnessHRC55-589Rotating diameter of shaft400mm10Length of the shaft810mm11Machine programfrom Siemens PLC12Hydraulic pump power3kw13Machine weight5200kg14Overall dimension of machine3800x2300x2200mm (LxWxH)

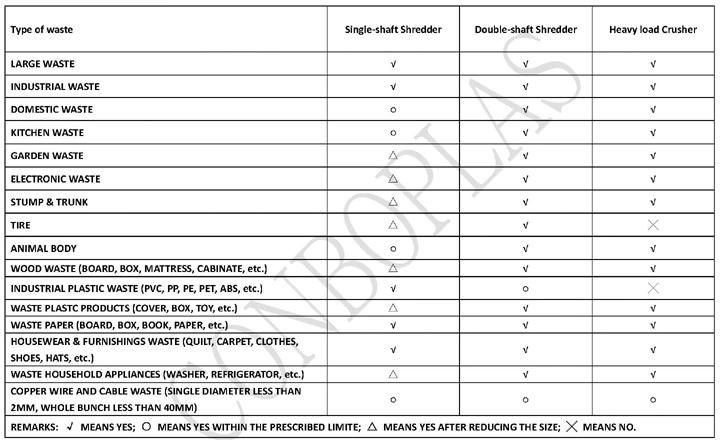

APPLICATIONS:

CB-Sp-800 Single Shaft Shredder for Large Plastic PVC HDPE Die Head Materials Wastes

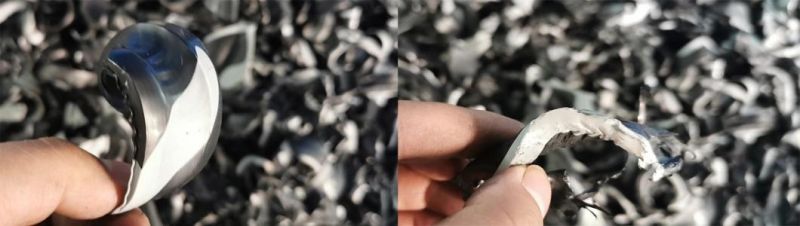

Main shaft and final particle:
CB-Sp-800 Single Shaft Shredder for Large Plastic PVC HDPE Die Head Materials WastesCB-Sp-800 Single Shaft Shredder for Large Plastic PVC HDPE Die Head Materials WastesCB-Sp-800 Single Shaft Shredder for Large Plastic PVC HDPE Die Head Materials WastesCB-Sp-800 Single Shaft Shredder for Large Plastic PVC HDPE Die Head Materials WastesCB-Sp-800 Single Shaft Shredder for Large Plastic PVC HDPE Die Head Materials Wastes
CB-Sp-800 Single Shaft Shredder for Large Plastic PVC HDPE Die Head Materials Wastes
