• Model NO.：SJSZ-65,132
• Motor Brand：Siemens
• Output Capacity：150-180kg,H
• Electric Component：ABB,Omron,Siemens etc
• Machine Color：Customzied
• Transport Package：as Exported Standard
• Specification：10T
• Trademark：QINGDAO TONGSAN
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：50 Sets One Year

Basic Info.

Model NO. SJSZ-65/132 Motor Brand Siemens Output Capacity 150-180kg/H Electric Component ABB,Omron,Siemens etc Machine Color Customzied Transport Package as Exported Standard Specification 10T Trademark QINGDAO TONGSAN Origin Qingdao, China HS Code 84772090 Production Capacity 50 Sets One Year

Product Description

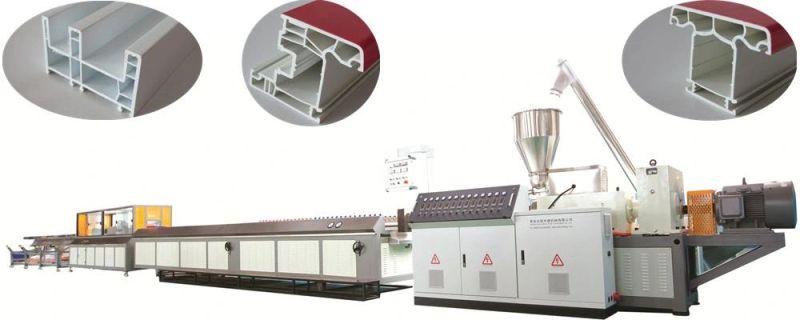

High quality plastic PVC/UPVC window and door profile making machine

A. plastic pvc profiles extrusion line is specializing in producing PVC plastic profiles including doors and windows profiles, decorative plates, tiny foaming profiles and decorative plates.
B. pvc profile machine uses PVC powder as material to produce various sorts of the mentioned plastic profiles as profiles for doors and windows, decorative profiles, etc.
C.By Absorbing advanced technology from abroad, our company developed the large plastic profile extrusion line, which is equipped with conical double-screw extruder, and it possesses the advantages of high degree automation, stable performance, high output and efficiency, etc.
D. If change certain screw and mould, the pvc profile machine can directly extrude foaming profiles, and the effect is much better than that of single-screw.
E.pvc profile extrusion line is optimumly designed by referring to the latest overseas technology, it bears the features of even plasticization, low cutting rate, high output, and long lifespan, etc. And it composes conical double-screw extruder, vacuum sizing platform, tractor, cutting and film coating machine and material stirring bracket,etc.
F.The pvc profile machine is run by alternating current frequency controller or direct current controllable silicon. The temperature controlling instrument is introduced from abroad. In addition, the vacuum pump and traction engine of the auxiliary machines are quality products which can be maintained easily
G.To match with different moulds, the shape-fixing platform of 4m, 6m, 8m or 11m, etc. can be chosen accordingly. The main machine with parallel double-screw is especially suitable for high-speed extrusion of various kinds of profiles.

Model	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Total Power(kw)	25	64	115	168
Max profile with (mm)	200mm	400mm	900mm	1500
Profile products	electricity truck,house deractive line,small profiles	window and door profile,wall panel,ceiling panel	door panel,furniture panel	door panel,furniture panel

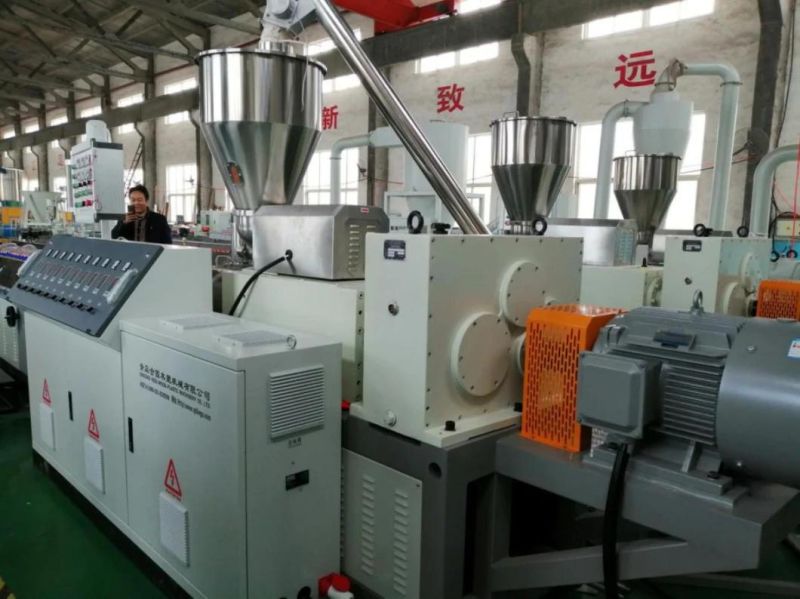

Detailed machine images (1)SJSZ-65/132 Twin conical screw extruder
With auto feeding device
ABB inverter and Siemens motor
Omron temperature controller

(2)SJ-35/28 co-extruder for ASA layer
ASA do not easy to fade color and it has many colors ,can make the profile more beautiful
(3)Die head and calibrator
Customized size and shape
Mold material: 3Cr17
Cooling method: water cooling and vacuum cooling

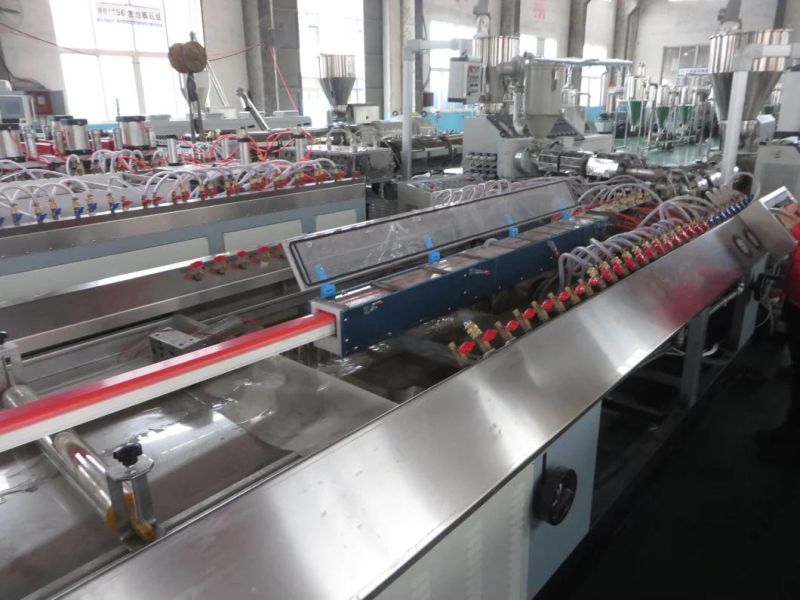

(4)Calibrating table
Length of table:4-12 meter customized
material of table: stainless steel
cooling method: water cooling and vacuum cooling.
vacuum pump: 7.5kw*1 sets,+5.5kw*2 sets
water pump: 2.2kw*1 set

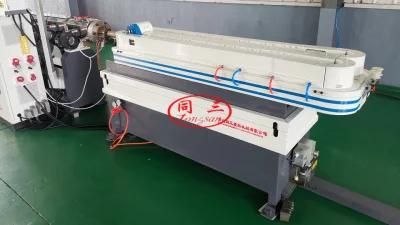

(5)Haul off and cutting machine

Haul off type: double caterpillar
length of haul off: 2.4 meter
control of haul off: frequency control
motor : 1.5 kw
gearbox: double gearbox

This line also can produce PVC WPC door frame.
