• Model NO.：GY-3000
• Customized：Customized
• Certification：QS, GMP
• Condition：New
• Color：Beautiful
• Voltage：Customized
• Motor：Siemens
• Gearbox：Guomao
• Transport Package：Wood Pellet
• Trademark：GY
• Origin：China
• HS Code：847780000
• Production Capacity：10sets,Y

Basic Info.

Model NO. GY-3000 Customized Customized Certification QS, GMP Condition New Color Beautiful Voltage Customized Motor Siemens Gearbox Guomao Transport Package Wood Pellet Trademark GY Origin China HS Code 847780000 Production Capacity 10sets/Y

Product Description



What this machine can do?

Just put the raw material grain into the Funnel.and via the machine heat and water cooling,then produce the plastic sheet.
Production:

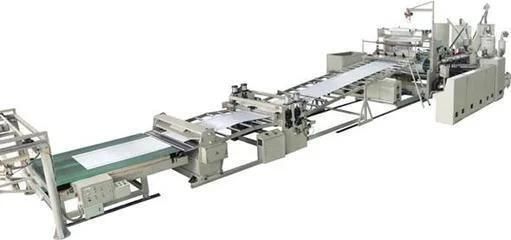

plastic sheet material extruder is composed of extruder,net transducer,die head,calender roller,takein machine,electric controller etc.The operational principle of the unit is as below:According to the tristate change of thermoplastic under different temperatures and take advantage of screw's push effect,turning physical appearance into high pellet state,and then transform into plastic liquid.After flowing from the mould,then wind in received volumes via pressure-ray cooling stereotypes.The main fratures of this crew as below:feed cylinder,screw and mould are made of high quality alloy structure with the nitrogen.It has high hardnenss,corrosion protection,and long use span. The frame head adopts racks of guns and over.The flowing channel is suitable for the fluxion of liquid,non stagnation phenomena,the thickness of products are homogeneous,the pressure-ray roller adopts big screw shafts.It has excellent effect of adopting water cycle to cool,the temperature of feed cylinder and mould head are controlled by controller separately.The rotational speed of screw,pressure-ray machine rotational speed,rotational speed of received volumes can be adjusted respectively to ensure the speed of the whole set synchronous.




This machine is applicable to the production of   ABS,PP PS HIPS PMMA PA POM PC/PP/PE PS EVA sheet  environmental protection biological degradation plastic sheet etc.It is widely used for forming of plastic sheet,packaging products,office supplies,antiseptic adhesive tape such as packaging boxes,cup,bowl,salver and so on.



Input capacity	500kg/h	1000 kg/h	2000 kg/h
Workshop(M*M*M)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	6Persons	8 Persons	12 Persons
Installation power	156KW	307KW	420KW
Water Consumption:	2Ton/h	3.5Ton/h	5 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm

Our service:
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions
