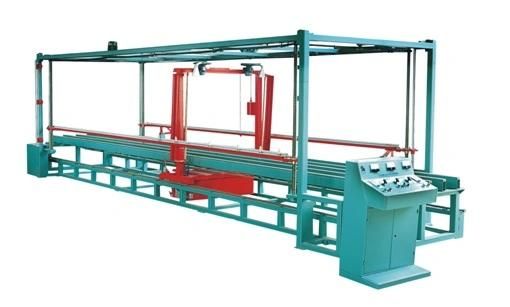

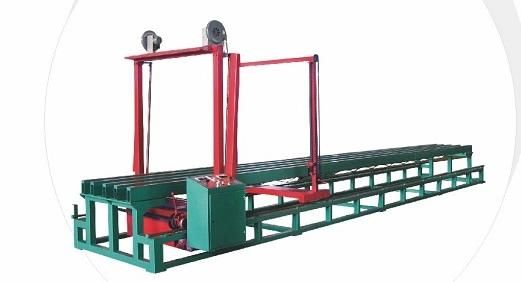

Styrofoam Cutting Machine
Hangzhou Fuyang Wealth Imp & Exp Co., Ltd.- Type:EPS Foam Machine
- Raw Material:EPS Foam Cutting Machhine
- Principle:Hot Wire Cutting Machine
- Automation:Automatic
- Certification:CE, ISO9001:2008
- Brand Name:Block Cutting Line
Base Info
- Model NO.:DSQ2000-DSQ6000
- Model Number:Vcl-200A
- Application:EPS
- Dimensions:4800*1950*1850
- Weight:800kgs
- Connected Load:11.2kw
- Transport Package:Standard Export Package
- Trademark:VST
- Origin:Zhejiang, China (Mainland)
- Production Capacity:30 Units Per Month
Description
Basic Info.
Model NO. DSQ2000-DSQ6000 Model Number Vcl-200A Application EPS Dimensions 4800*1950*1850 Weight 800kgs Connected Load 11.2kw Transport Package Standard Export Package Trademark VST Origin Zhejiang, China (Mainland) Production Capacity 30 Units Per MonthProduct Description
Main Feture:1. The main frame of the machine is welded from square profile steel, with strong structure, high strength and no deformation;
2. The machine can make horizontal cutting, vertical cutting and down cutting automatically, but wires setting is done by hand.
3. Adopts 10KVA multi-tapped special transformer for adjustment with wide adjustable range and multiple votages.
4. Cutting speed range 0-4m/min
Item | DSQ-3000B | DSQ4000Q | DSQ-8000Q | |
Max cutting size(mm) | 3000*1250*1250 | 4000*1250*1250 | 6000*1250*1250 | |
Power | 35kw | 35kw | 35kw | |
Overall dimension(mm) | 5800*2300*2600 | 6800*2300*2600 | 8800*2300*2600 | |
Weight | 2000kg | 2500kg | 3000kg |
