• Model NO.：SJZ65,132 SJZ80,156 SJZ92,188
• Certification：CE, ISO9001:2008
• Customized：Customized
• Main Motor：Siemens Beide
• Inverter：ABB or Delta
• Main Electrics：Siemens or Schneider
• Temperature Control：Omron
• Machine Color：Customized
• Voltage：Customized
• Panel Width：300-1000mm
• Output：150-500kg,H
• Production Direction：From Right to Left
• Delivery Time：45-55 Working Days
• Raw Material：PVC CaCO3 with Additives
• Auxiliary Machine：Mixer, Crusher, Pulverizer
• Transport Package：Wooden Case, Film Packing
• Specification：300mm, 600mm, 800mm
• Trademark：Sunrise Machinery
• Origin：China
• HS Code：84778000
• Production Capacity：100 Set ,Year

Basic Info.

Model NO. SJZ65/132 SJZ80/156 SJZ92/188 Certification CE, ISO9001:2008 Customized Customized Main Motor Siemens Beide Inverter ABB or Delta Main Electrics Siemens or Schneider Temperature Control Omron Machine Color Customized Voltage Customized Panel Width 300-1000mm Output 150-500kg/H Production Direction From Right to Left Delivery Time 45-55 Working Days Raw Material PVC CaCO3 with Additives Auxiliary Machine Mixer, Crusher, Pulverizer Transport Package Wooden Case, Film Packing Specification 300mm, 600mm, 800mm Trademark Sunrise Machinery Origin China HS Code 84778000 Production Capacity 100 Set /Year

Product Description

The PVC profile production line could produce PVC window profile, door frame, board, wall panel, window sill, corner bead, gutters, ceiling, etc. This machine also could produce wood plastic profile ( WPC).

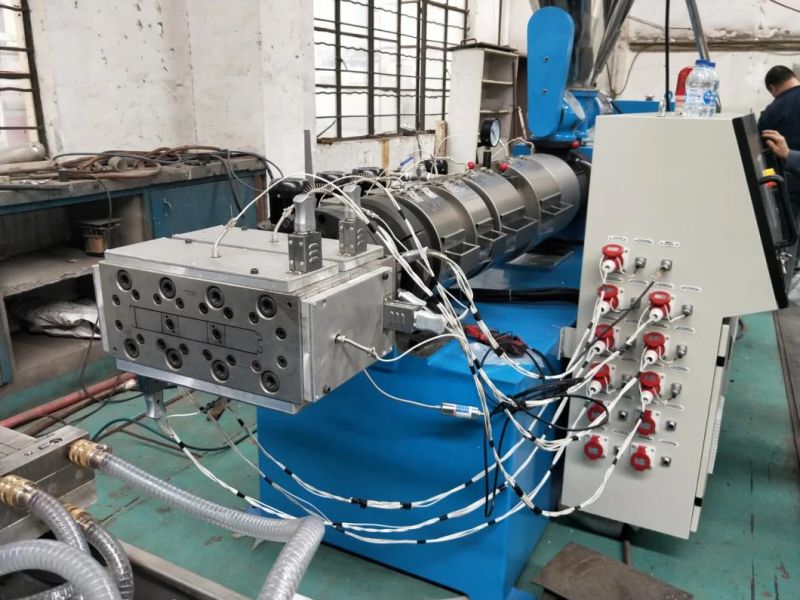

To produce PVC profile, you shall have high speed mixer to mix PVC powder, CACO3 and other additives according to your formula. Then feed the mixture to the conical twin screw extruder for the production. The mixed material will be extruded through different molds to produce different shape profiles. Then it will be calibrated to keep the shape by vacuum calibration tank, then haul off and cutting. You could cut different length as you want, 4 meter, 6 meter, etc.

To guarantee the quality and good performance of our machines, we use Siemens Beide brand main motor for extruder, and ABB inverter for speed control. The lower voltage electrics components are from Siemens or Schneider, temperature control device is from Ormon or RKC.

Siemens PLC and Siemens touch screen computer is also available to meet your specific requirements.

 High quality, good price and reliable performance. Please don't be hesitate to contact us for more details. And we also warmly welcome you to visit our factory.

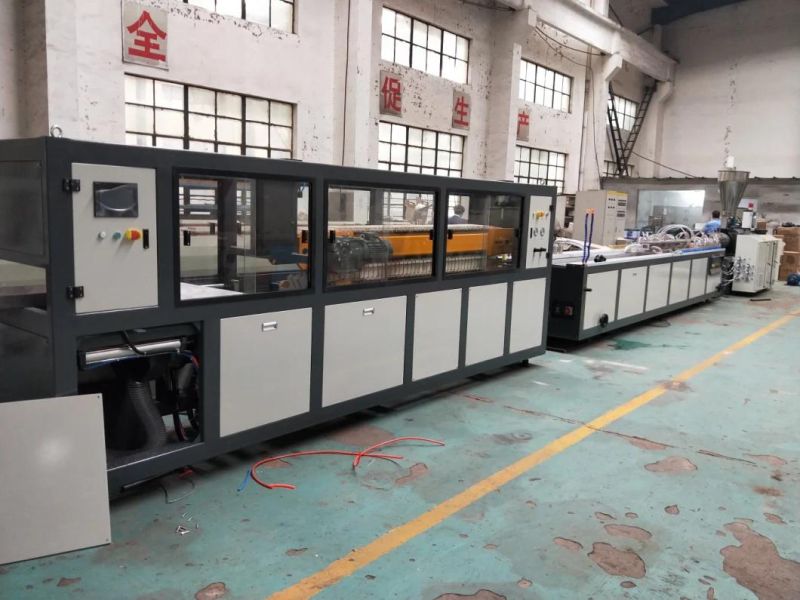

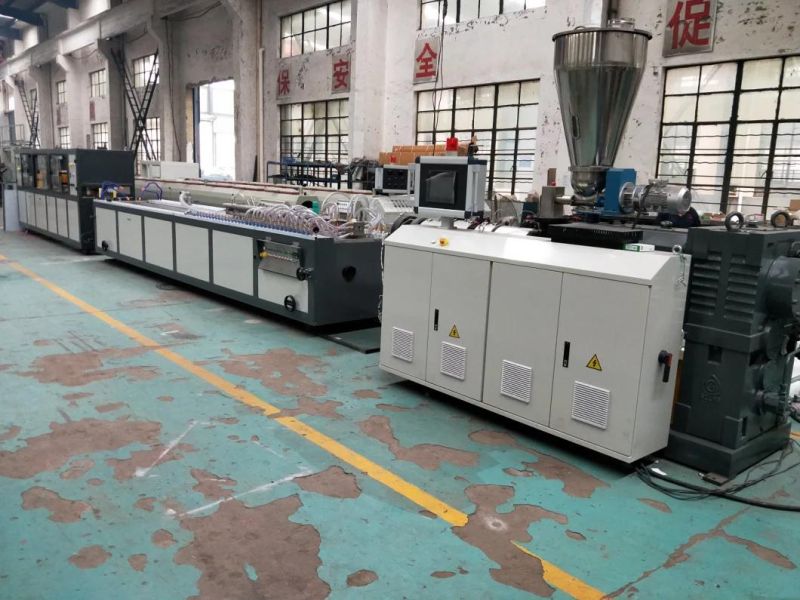

 The PVC Profile production line includes the below machines;

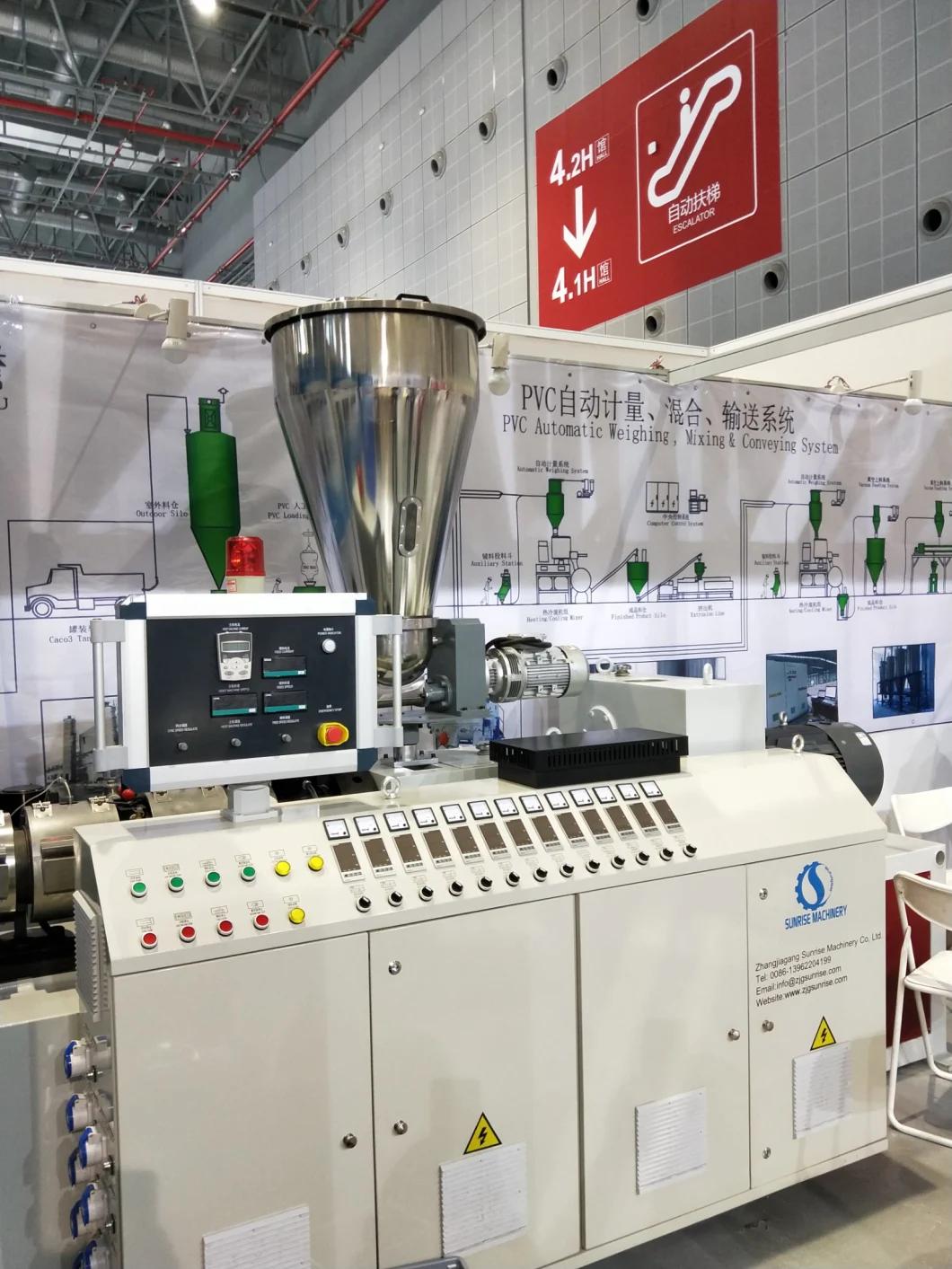

 1. Conical Twin Screw Extruder

2. Extrusion Mold ( The buyer shall prepare the drawing to make the mold)

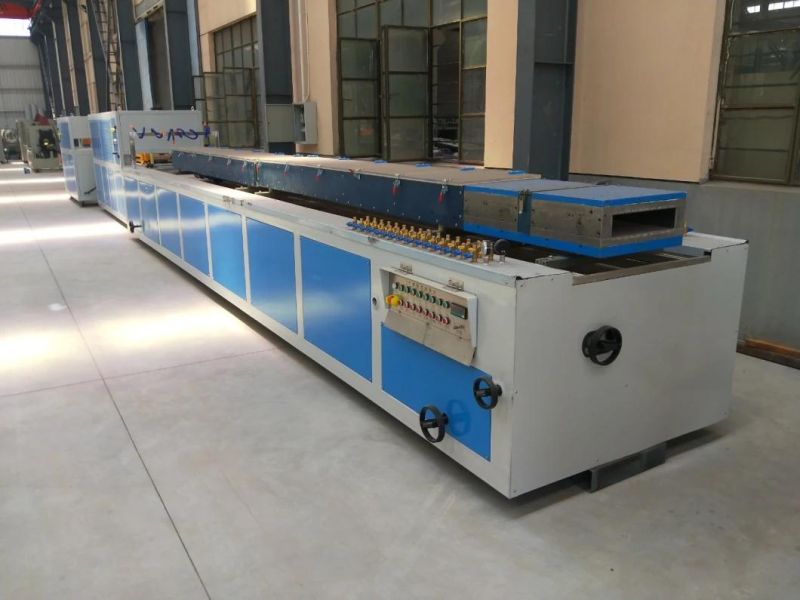

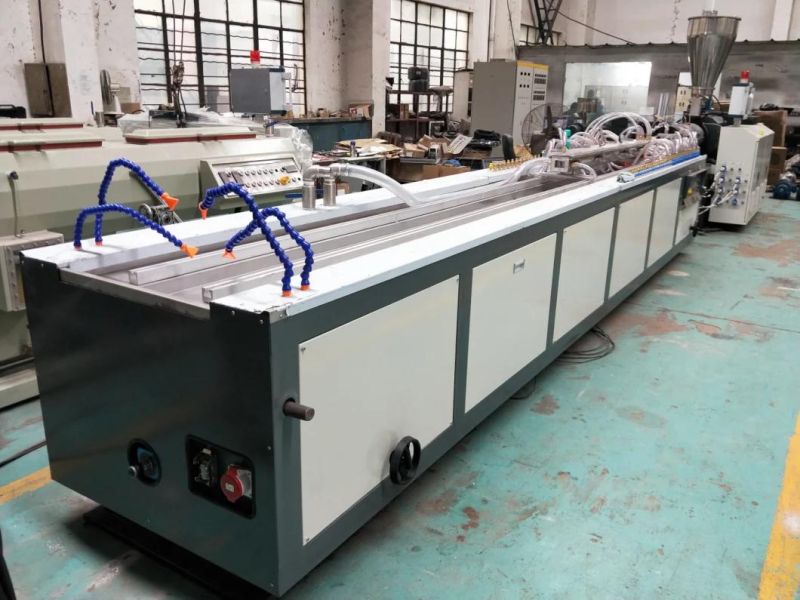

3. Vacuum Calibration Table

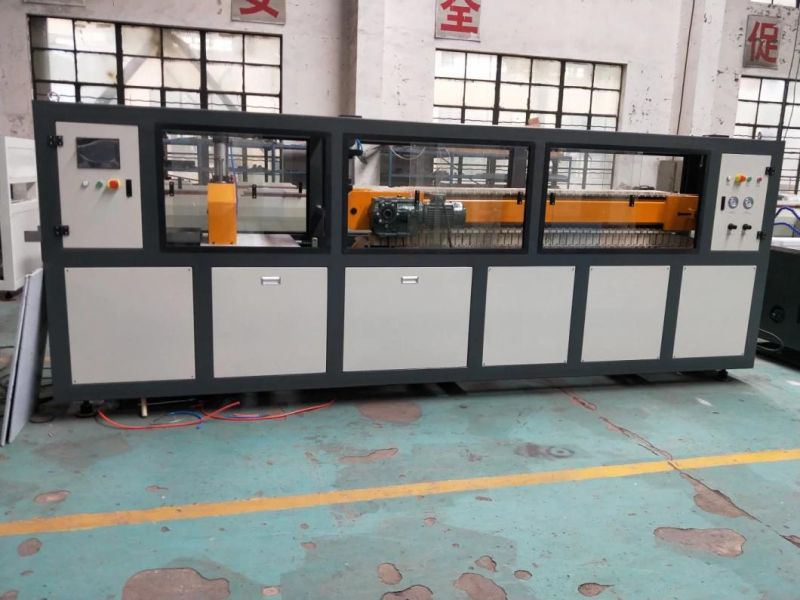

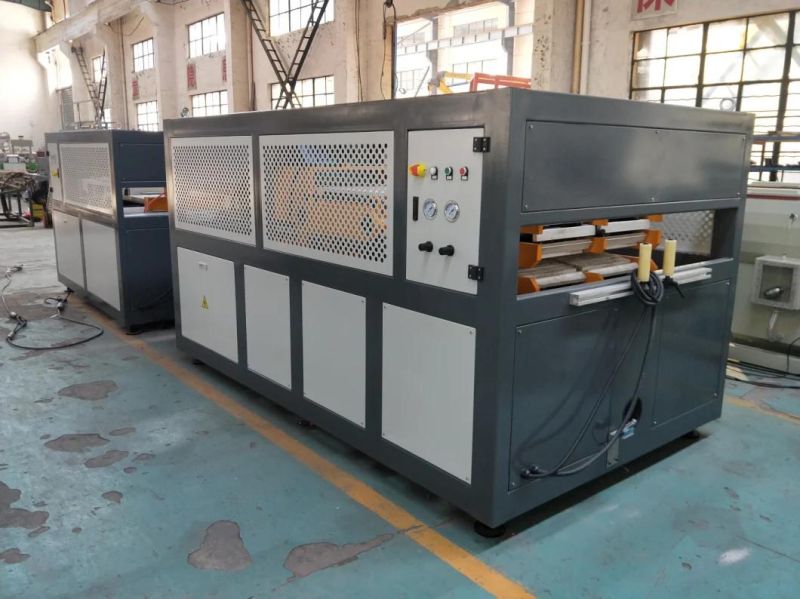

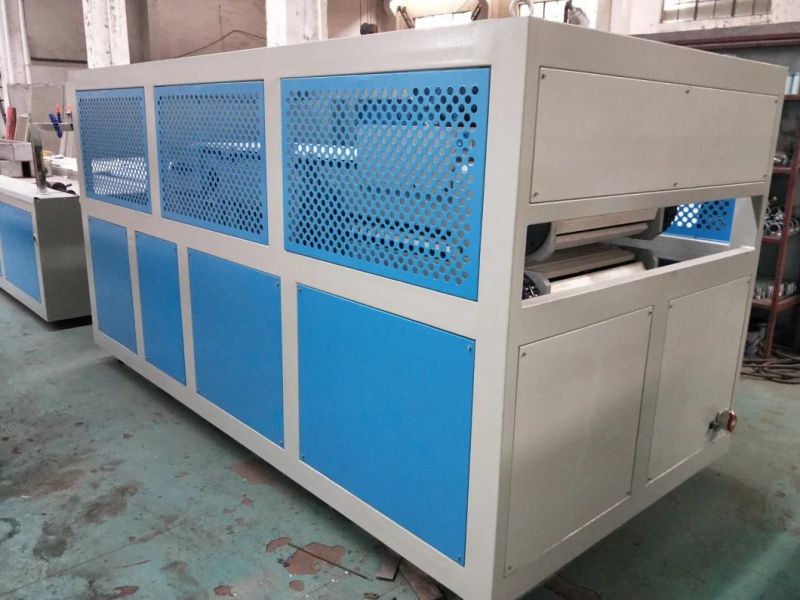

4. Haul Off and Cutter

5. Stacker

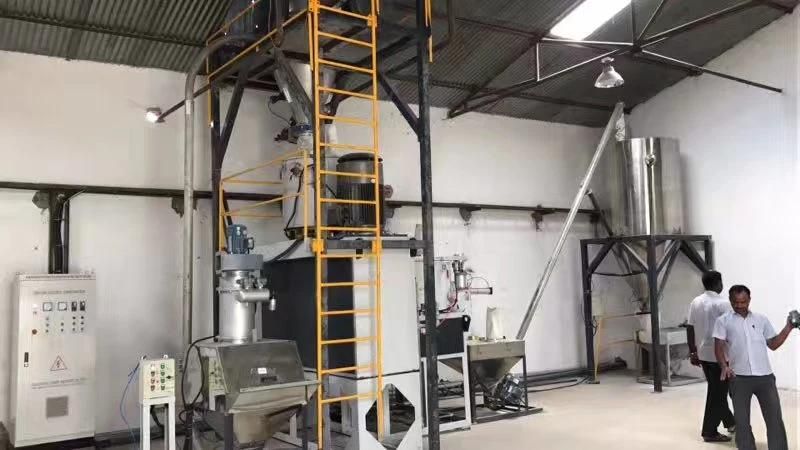

6. PVC Mixer ( for raw material preparation)

7. Crusher and Milling Machine ( for recycle the waste and could reuse for profile production)



Model	SJZ51/105	SJZ55/100	SJZ65/132	SJZ80/156	SJZ92/188
Screw diameter(mm)	51/105	55/100	65/132	80/156	92/188
Quantity of screw	2	2	2	2	2
Max. rotation speed of screw(r/min)	40	38	38	37	36
Effective length of screw(mm)	1200	1200	1440	1800	2500
Main motor power(kw)	18.5	22	37	55	110
Productuion capacity(kg/h)	100	150	250	400	750
Center height(mm)	1000	1000	1000	1100	1200



Company Information

Zhangjiagang Sunrise Machinery Co., Ltd.  is specialized in manufacturing kinds of plastic machines.  Sunrise Machinery is located in Zhangjiagang City, Jiangsu Province, 150km away from Shanghai.

Our main products as below:1. PVC / PE / PPR Pipe Production Line2. PVC window & Door Profile / Panel Production Line3. Plastic Sheet & Wide Board Production Line4. Plastic Shredder, Crusher & Pulverizer5. Waste Plastic Recycling Machines6. Wood Plastic Profile Production Line7. High Speed Mixer for PVC  We have more than 10 years experince in this field. With CE standard and rich experince, Sunrise Machinery will be your reliable supplier for plastic machines.  We warmly welcome friends from all over the world to visit our factory.
 Our Services

1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.

2. Our machine has 12 month guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.

3. If the buyer have any problem during the operation, we will offer technical solutions.

With more than 10 years experince and focus on plastic machines, Sunrise Machinery will be your good choice.
