Tongda Hsll-15L Zero Defect Automatic Plastic Extrusion Machine in High Efficiency

Suzhou Tongda Machinery Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：HSll-15L
  • Rotary Cylinder Brand：Festo
  • Station：Double
  • Suitable Bottle：1-15L
  • Key Words：Automatic Extrusion Blow Moulding Machine
  • Packing：Wooden
  • Use：Hollow Moulding
  • Parison Control：Moog
  • Max. Size of Mold：730*540

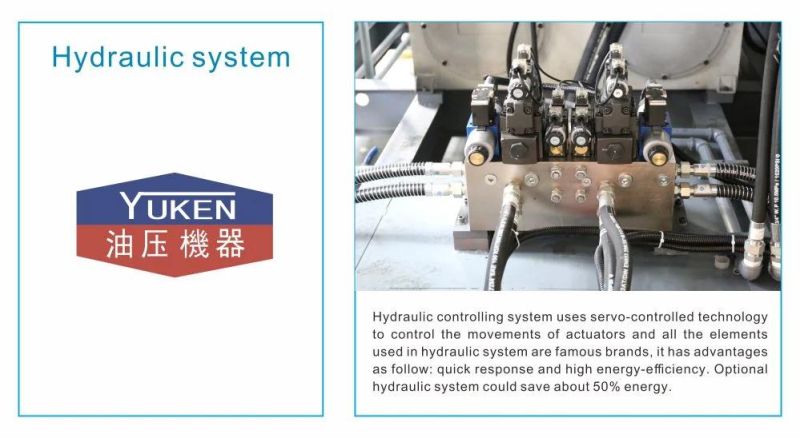

  • Hydraulic Valve：Yuken
  • Color：White
  • Max.Product Volume：15L
  • Dry Cycle：700*2PC,H
  • Output of HDPE：230kg,H
  • Weight of Machine：25000kg
  • Transport Package：Packaged in Wooden Case
  • Specification：6.8*6.4*3.6
  • Trademark：TONGDA
  • Origin：China
  • HS Code：8477300000
  • Production Capacity：600sets,Year

Description

Overview Product Description

Product Details

Tongda Hsll-15L Zero Defect Automatic Plastic Extrusion Machine in High EfficiencyTongda Hsll-15L Zero Defect Automatic Plastic Extrusion Machine in High EfficiencyTongda Hsll-15L Zero Defect Automatic Plastic Extrusion Machine in High EfficiencyTongda Hsll-15L Zero Defect Automatic Plastic Extrusion Machine in High Efficiency

Product Parameters Model UnitsHSll-15L
SpecificationStationSingle/DoubleDoubleMax.product volumeL15Dry cyclepc/h700*2Output of HDPEkg/h230Weight of machinekg25000Size of machine(L*W*H)m6.8*6.4*3.6Die headMax.die diameter(single head)mm200Die head heating power(single head)kw9.1Die head heating zone(single head)-3Central distance of(double head)mm250Max.die diameter(double head)mm120Die head heating power(double head)kw15Die head heating zone(double head)-7Clamping UnitPlaten distancemm350~800Mold moving strokemm750Clamping forcekn158Extruder UnitScrew diametremm100Screw length/diametre ratio-28Screw heating powerkw26No.of heating zone(screw)-5Power UnitOil pump motor powerkw17+4Screw motor powerkw75Total powerkw131.1RemarksAir consumptionm³/min1.2Blow pressureMap0.6Cooling water pressureMap0.3Water consumptionL/min100Max size of mold(W*H)mm730*540Company Information


Tongda Hsll-15L Zero Defect Automatic Plastic Extrusion Machine in High Efficiency
Shipping Packing


Tongda Hsll-15L Zero Defect Automatic Plastic Extrusion Machine in High Efficiency

Why Choose Us


Tongda Hsll-15L Zero Defect Automatic Plastic Extrusion Machine in High Efficiency
Service Marketing Network
FAQTONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a
registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
