Pet Blow Molding Machine, The Main Products of Our Company
Zhangjiagang Eceng Machinery Co., Ltd.- Type：Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：YCQ-2L-2
- Color：Orange
- Voltage：According to Customer Request
- Driven Type：Pneumatic
- Bottle Material：Pet
- Cavity：2
- Theory Output：2500-3000PCS,Hr
- Max. Volume：2L
- Power：43kw
- Size of The Machine：2.5X1.6X1.9 (M)
- Weight of The Machine：3500kg
- Transport Package：Wooden Package or as Customer′s Request
- Specification：ce iso
- Trademark：eceng
- Origin：Zhangjiagang Jiangsu
- HS Code：8477300000
- Production Capacity：100per Year
Description
Product SpecMax. product volume(L/cav) 2 Max. preform neck size(mm) 100 Max. product diameter(mm) 180 Max. product height (mm) 300 Cavities 2 Blow molding part Die force (KN) 100 Die stroke (mm) 270 Max. mould size(mm) 390*345 Mould thickness Adjustable Mould spacing(mm) Adjustable Max. pulling stroke(mm) 400 Operation pressure(Mpa) 0.8-1.0 Operation air pressure consumption(1tr/min) 200 Blow pressure(Mpa) 1.2-2.8 Blow air pressure consumption (1tr/min) 300 Output(pcs/h) 1000-1800 Machine size(LxWxH)(m) 1.46*0.58*1.8 Machine weight(KG) 650 Oven Temperature grade(rate) 8 Heating time(S) 90-200 Voltage(V) 220 or as your request Frequency(HZ) 50/60 Total power(KW) 16 Oven Size (LxWxH) 1.35*0.55*1.15 Oven weight (KG) 300
Technology Advantage
l. Special design,high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation,no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartion

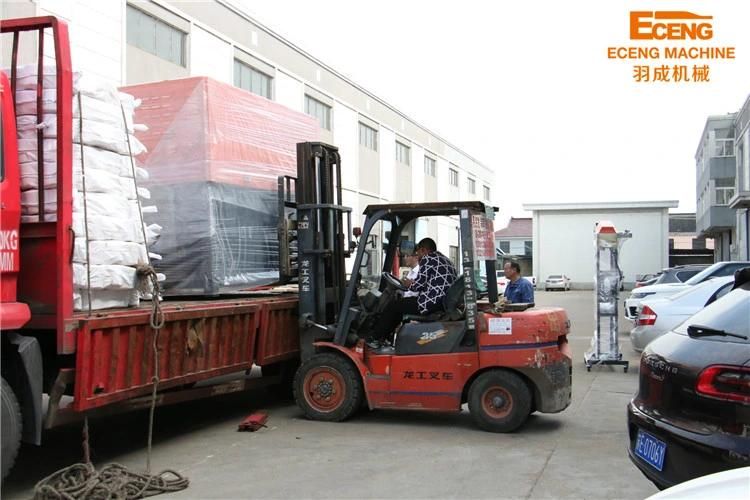

Transportation:
It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Products:
PVC/HDPE/PP-R pipe extrusion line, PVC & WPC profile extruding line and plastic sheet production lines with the relative auxiliary machine, PE film/ PET bottles recycling line and pelletizing lines.
Market:
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!
