• Model NO.：SJ-75,80,90
• Output：50-150kg,H
• Power：380V,3,50Hz
• Application of Final Production：Rope,Net,Broom,Brush
• Screw Size：Single Screw
• Transport Package：Seaworthy Package
• Specification：SGS
• Trademark：ZHUOYA MACHINERY
• Origin：Qingdao, Shandong, China
• HS Code：84772090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. SJ-75/80/90 Output 50-150kg/H Power 380V/3/50Hz Application of Final Production Rope/Net/Broom/Brush Screw Size Single Screw Transport Package Seaworthy Package Specification SGS Trademark ZHUOYA MACHINERY Origin Qingdao, Shandong, China HS Code 84772090 Production Capacity 200 Sets/Year

Product Description

Plastic Filament Extruding Machine

PRODUCT DESCRIPTION:

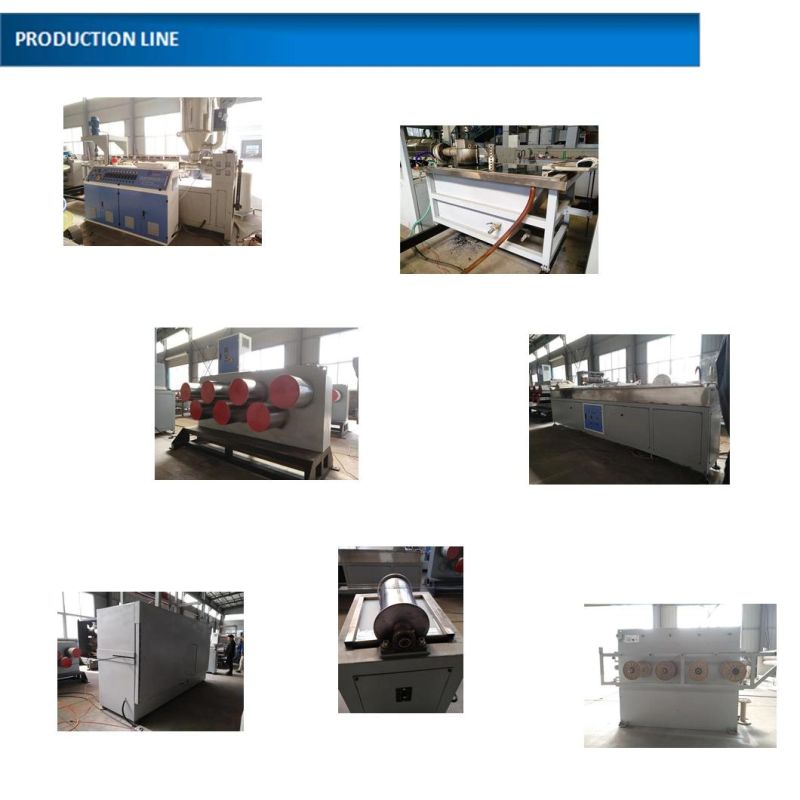

1.Constitution:The production line consists of dehumidifying and crystallizing system, extruder, screen changer, Meter pump, mold, haul-off, oven, and winder, etc.
2.Production Process:Material→ Dehumidifying and Crystallizing → Extruding → Filter→ Metering→ Mold → Cooling→ Haul-off →Water heating→ Haul-off→ Water heating→ Haul-off → Glazing → Shaping → Haul-off→ Winding

MAIN FEATURES:
1.Eco-friendly and Extensive Use: With 100% recycled PET bottle flakes, PP pellets, or PE pellets to produce high quality synthetic hair or eyelash monofilament.
2. Mature Technology and High Performance: New technology, hot wind cycles to dry, increase the viscosity of the bottle flakes material; secondary stretching, increase the tensile strength and elongation, the belt tension reaches more than 10000N
3.Energy Conservation: Precise and energy saving temperature control system, power saving, low noise, low input and high yield.

ELECTRICAL CONFIGURATION:
1) Main motor frequency controller: ABB
2) Temperature controller: OMRON
3) AC contactor: Siemens
4) Thermal overload relay: Siemens
5) Breaker: CHINT or according to customer requirement

TECHNICAL PARATETERS

Power supply	380V,3 phase,50HZ
Raw material	PET/PP/PE/PVC/PBT
Diameter of final product	0.05-2.5mm
Capacity	50-150kg/hour

DIFFERENT MODELS

Model	Filament Dia.	Production capacity	Total Power
SJ-75	0.05MM-2MM	50-85kg/h	80KW
SJ-80	0.05MM-2MM	70-120kg/h	90KW
SJ-90	0.05MM-2MM	85-150kg/h	100KW













Our Service:
1. Pre-sale service:

• Provide market research information and consultation
• Help customers make project planning and systematic analysis
• Maximize customer's satisfaction
• Achieve the mutual benefits of our customers and our company

2. After-sale service:

• Install products and test products for customers
• Provide the formulas and technologies of relevant products and the information   of chemical materials manufactories
• Provide technical direction according to customers' requirements
• Provide technical training for clients' employees

FAQ
Q1: If I need more information, how to contact you?
A:Send me your demands, we will send back detailed machine specifications with working video.

Q2: How to buy your machine?
A: We send detailed machine quotation to you, if you are satisfied, we will make PROFORMA INVOICE for you.  Payment terms: 30% deposit, after machine testing good, 70% before shipment.

Q3: What about warrant?
A: We have one-year warranty.We will provide the spare parts for free except the malfunction caused by your incorrect operation.

Q4: How can I believe your factory and company?
A: You are welcomed to ask authority to visit our factory and machine, we are real factory.

Q5: Do you have other service?
A:We can send engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.

Q6: Where is your factory located?
A:Our factory is in Qingdao city which has the world famous port. If you want to visit our factory, we can come to pick you up.
