110/220 Conical Twin-Screw Extruder/Spc Extrusion Machine/Plastic Sheet Extrusion Line
Wuxi Boyu Plastic Machinery Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Separate Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：SZJZ110
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- High Tech：PLC Control System
- Transport Package：PVC Film
- Specification：50m
- Trademark：BOYU
- Origin：China
- HS Code：8477209000
- Production Capacity：20 Lines,Month
Description
Product specificationsMaximum width is 1050mm, thickness =2-9mm. Normal finished board width: 980mm Normal finished board thickness: δ=1.5~4.0mm 5 Total power of whole machine line About 700KW (The exact total power may something floating
as per different configuration requirements
2.Equipment List & Quantity

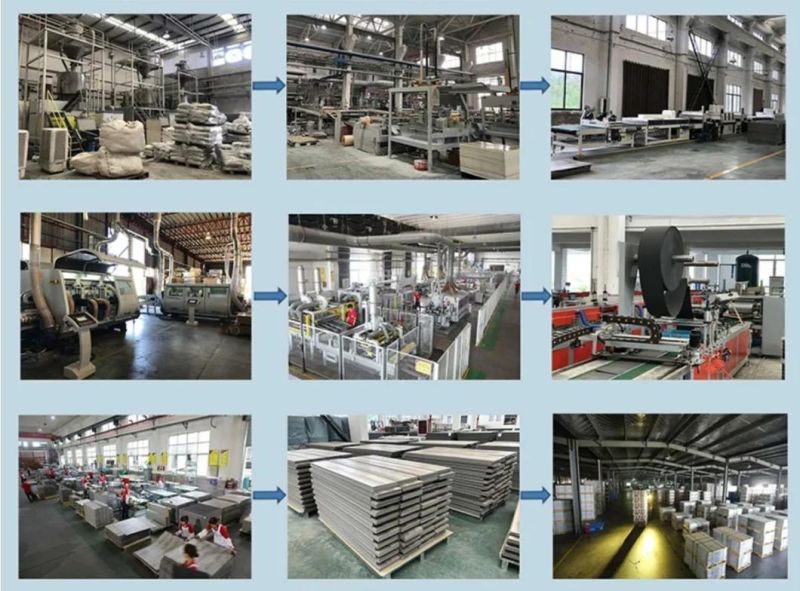

3.Production Flow
Material mixing → Extruder →T-die → Calender→ Cut-to-length →Stacking →UV coating →Saw cutting →
Slick slotting →Backing limitation →QC inspection → Packing
4.Advantages of BOYU SPC Production Machine Line
1. More than 20 years experience on palstic machinery designing and manufacturing:
Leading industry level of mechanical and electric design
Various of machine lines for optional
Provide flooring production proposal of expert level
Proposal customized as per different market demand
High Stability, performance, safet
High efficiency smart equipment, less operator needed
2. EIR(High Quality&High Depth Embossing Performance)
The word leading level EIR technology
The unique one key embossing function is effectively short operation time
Deep embossing is helpful to achieve products differentiation
Constant tension system for film unwinding
Automatic deviation rectification system for film unwinding
3. Simple and Smart Electric Control System
PLC smart control system
Profinet connection method, to ensure fast data communication and achieve remote monitoring
Adopted famous internationla brand of electrical elements , much more decrease the faluts ratio.
Synchronous line speed control system
Anti-screw breakage, anti-bloacking die, automatic stacking control system
Automatic oil/water temperature control system

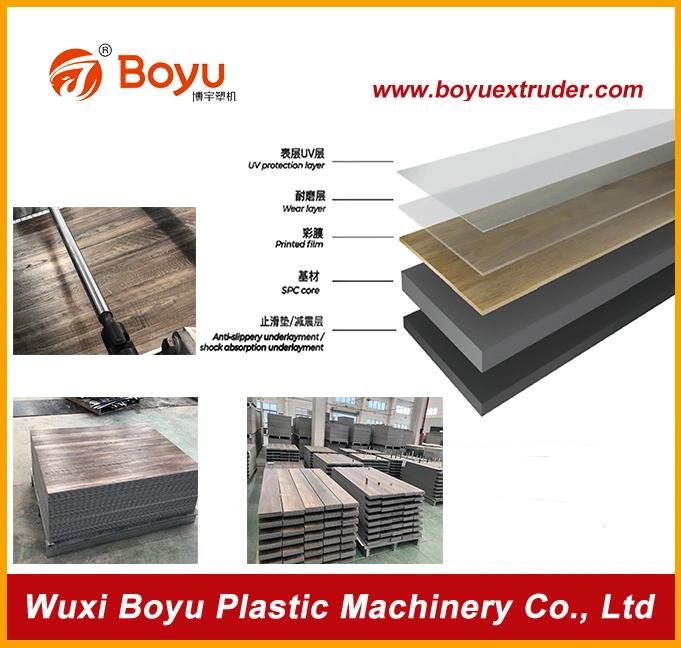

5.Finished board
The SPC floor is fire-proof, moisture-proof, antiskid,mildrew proof, tough and wear-resistant, with good decoration effect, convenient installation and simple maintenance. It is a high-quality environmental protection floor decoration material. The main raw material of SPC floor are PVC and Calcium powder, and these materials are non-toxic and environmental friendly renewable resources. The EIR system can ensure accurate synchronize of embrossing pattern and color film pattern, and make SPC floor feel as nature as wood floor.

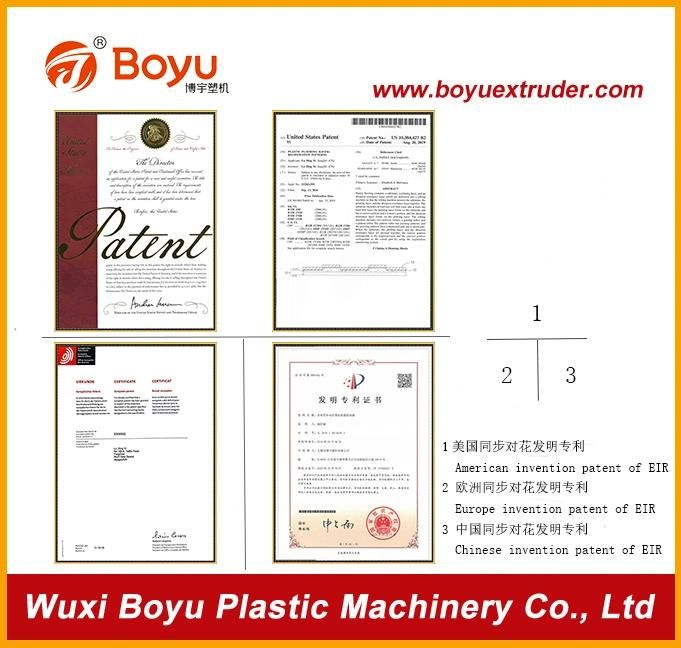

6.EIR Patent
7.Our Services:
1. Pre-sale service:
To provide market research information and consultation;
To provide all kinds of convenience and market service;
To help customers make project planning and systematic analysis;
To maximize customer's satisfaction.
2. After-sale service:
To install products and test products for customers;
To provide the formulas and technologies of relevant products and the information of chemical materials manufacture;
To provide technical direction according to customers' requirements;
To provide technical training for clients' employees;
To be responsible for maintenance service, door-to-door service under necessary circumstance.
3. Technology Support
Provide different products for formula and material supplier.
Production technology&Technical guidance.
Technicians dispatching for Guidance and technology exchange.
8.Shipping
9. Project Case
as per different configuration requirements
2.Equipment List & Quantity
| No. | Equipment Name | Quantity | Remark |
| 1 | Φ110/220 Conical twin-screw extruder | 1 Set | |
| 2 | Extrusion die | 1 Set | |
| 3 | Five-roller calender | 1 Set | |
| 4 | Film unwinding mechanism & magnetic powder controller | 2 Units | For two working position |
| 5 | Oil roller heating system (integral) | 1 Set | 4 units |
| 6 | Cooling bracket | 1 unit | |
| 7 | Longitudinal edge cutting mechanism | 1 unit | |
| 8 | Traction machine | 2 sets | |
| 9 | Length meter | 1 Set | |
| 10 | Plate shearing machine | 1 set | |
| 11 | Automatic plate lifting and stacking system | 1 unit | |
| 12 | Electric control cabinet | 1 unit | |
| 13 | Cooing water spray tank | 1 unit | |
| 14 | Wear layer pre-heat device | 1 unit |
3.Production Flow
Material mixing → Extruder →T-die → Calender→ Cut-to-length →Stacking →UV coating →Saw cutting →
Slick slotting →Backing limitation →QC inspection → Packing
4.Advantages of BOYU SPC Production Machine Line
1. More than 20 years experience on palstic machinery designing and manufacturing:
Leading industry level of mechanical and electric design
Various of machine lines for optional
Provide flooring production proposal of expert level
Proposal customized as per different market demand
High Stability, performance, safet
High efficiency smart equipment, less operator needed
2. EIR(High Quality&High Depth Embossing Performance)
The word leading level EIR technology
The unique one key embossing function is effectively short operation time
Deep embossing is helpful to achieve products differentiation
Constant tension system for film unwinding
Automatic deviation rectification system for film unwinding
3. Simple and Smart Electric Control System
PLC smart control system
Profinet connection method, to ensure fast data communication and achieve remote monitoring
Adopted famous internationla brand of electrical elements , much more decrease the faluts ratio.
Synchronous line speed control system
Anti-screw breakage, anti-bloacking die, automatic stacking control system
Automatic oil/water temperature control system
5.Finished board
The SPC floor is fire-proof, moisture-proof, antiskid,mildrew proof, tough and wear-resistant, with good decoration effect, convenient installation and simple maintenance. It is a high-quality environmental protection floor decoration material. The main raw material of SPC floor are PVC and Calcium powder, and these materials are non-toxic and environmental friendly renewable resources. The EIR system can ensure accurate synchronize of embrossing pattern and color film pattern, and make SPC floor feel as nature as wood floor.
6.EIR Patent
7.Our Services:
1. Pre-sale service:
To provide market research information and consultation;
To provide all kinds of convenience and market service;
To help customers make project planning and systematic analysis;
To maximize customer's satisfaction.
2. After-sale service:
To install products and test products for customers;
To provide the formulas and technologies of relevant products and the information of chemical materials manufacture;
To provide technical direction according to customers' requirements;
To provide technical training for clients' employees;
To be responsible for maintenance service, door-to-door service under necessary circumstance.
3. Technology Support
Provide different products for formula and material supplier.
Production technology&Technical guidance.
Technicians dispatching for Guidance and technology exchange.
8.Shipping

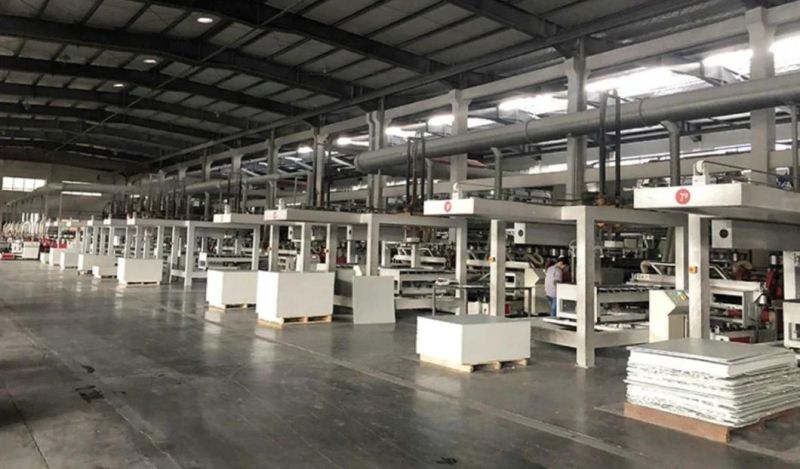

9. Project Case
