PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine

Shandong Hightop Group
  • Raw Material：PU Foam
  • Principle：Hydraulic

Base Info

  • Model NO.：CNMC500
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008
  • Gross Weight：240kg
  • Working Fluid Pressure：6-8MPa
  • Transport Package：Wooden Box
  • Specification：1400mm*990mm*60mm
  • Trademark：CNMC500
  • Origin：Shandong China
  • Production Capacity：1000sets,Month

Description

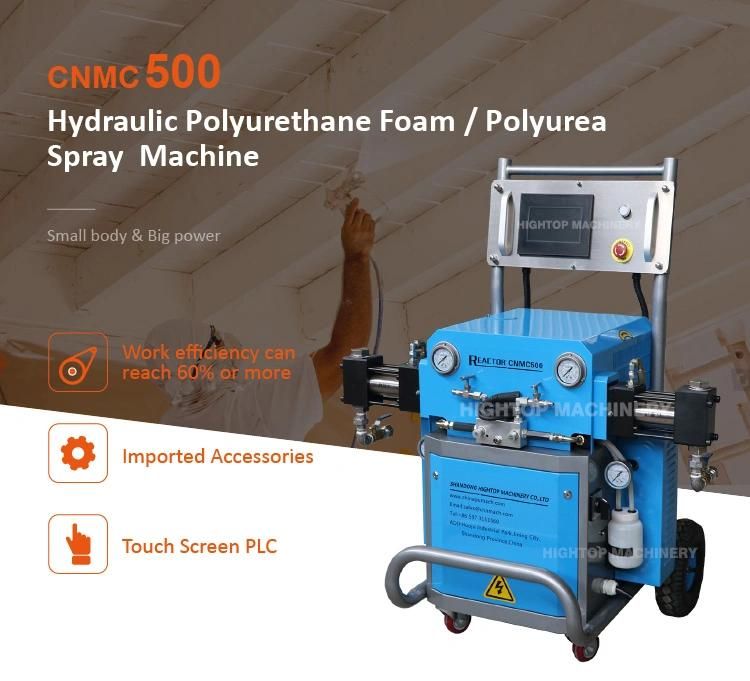

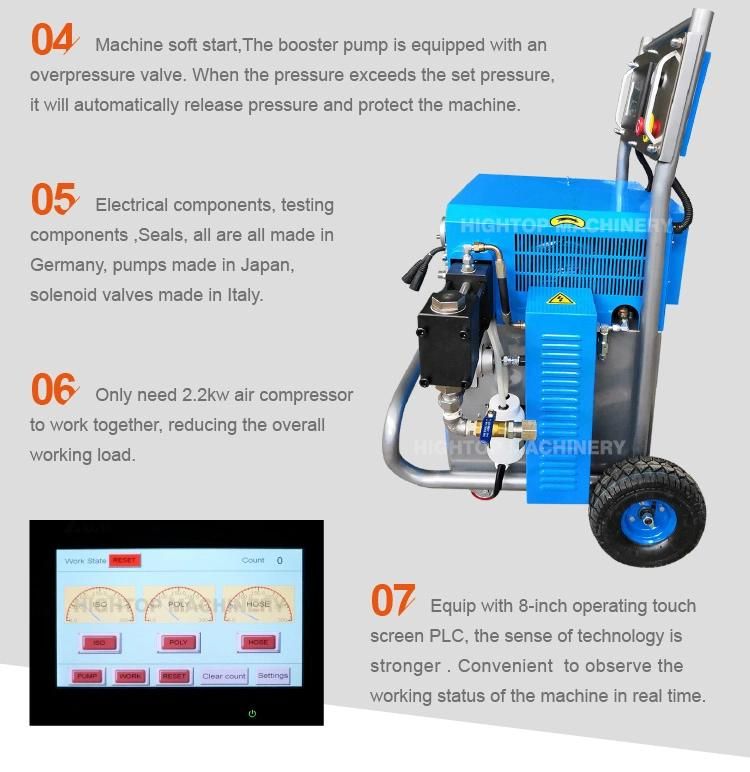

ItemCNMC-500 Hydraulic polyurea spray machine

Standard

configuration

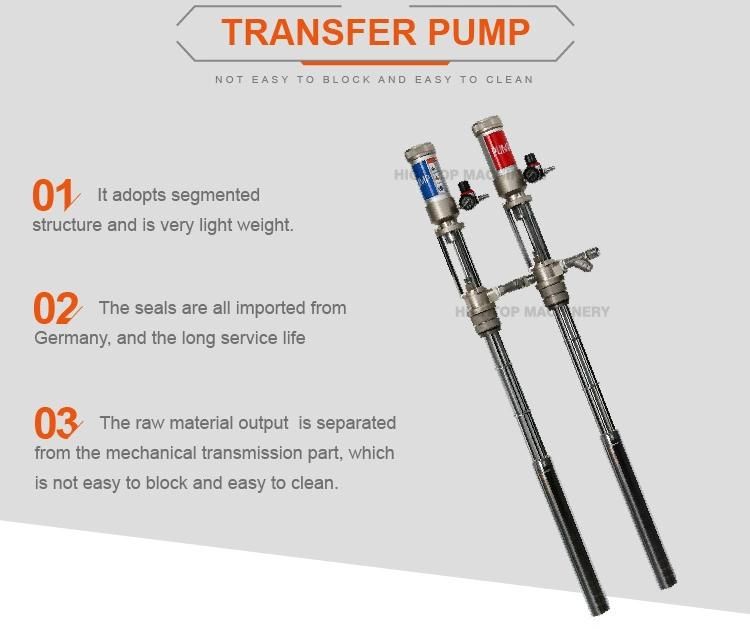

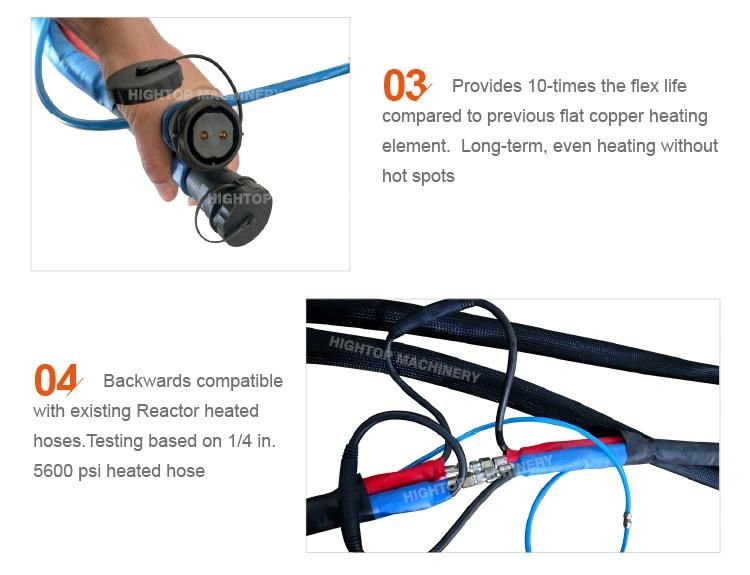

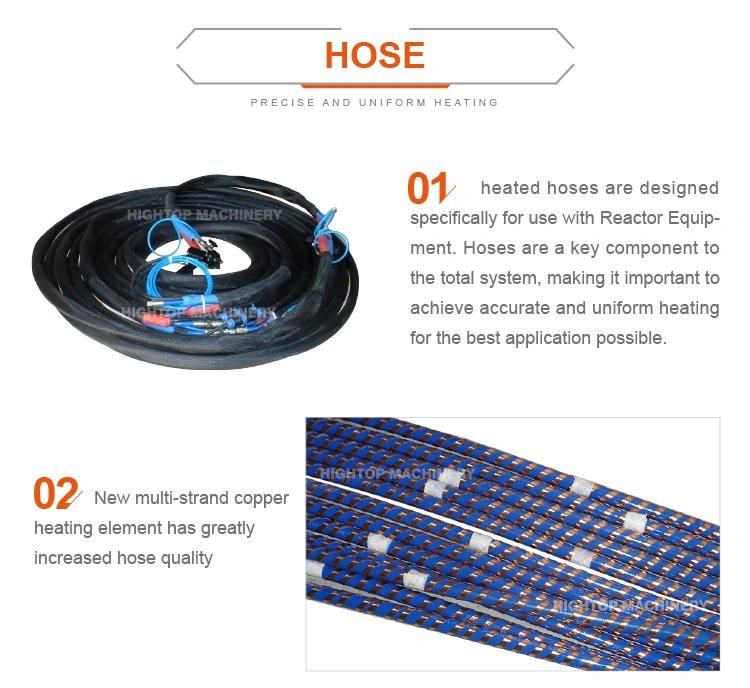

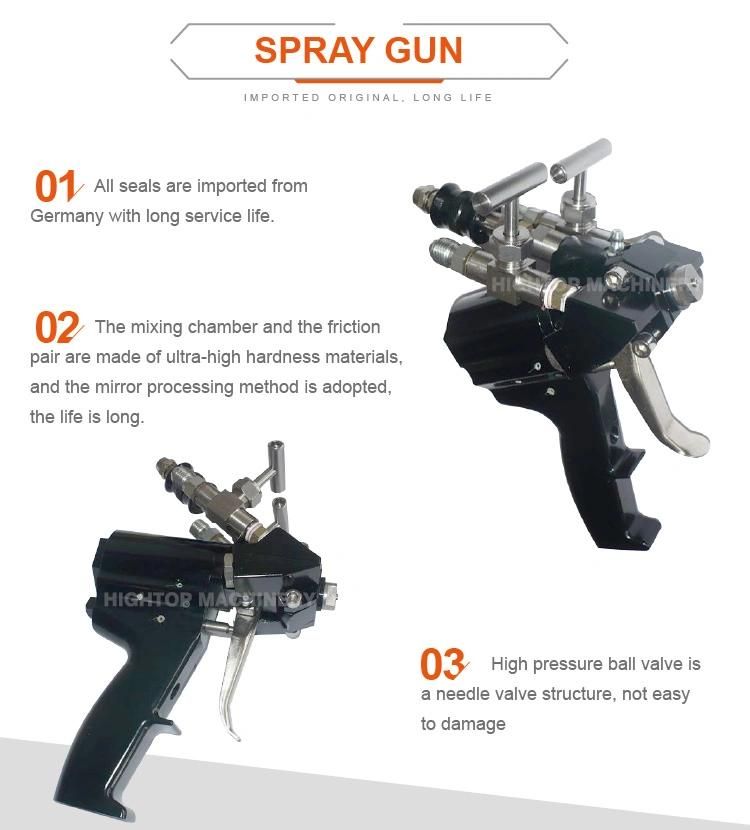

Proportion Fixed Mainframe: 1 setSelf-cleaning spray gun: 1 setFeeding pump: 2 setsHeating hose: 49.2 feet (15m)Connecting hose from feeding pump to machine: 10 feet(3m)Connecting hose from heating hose to gun: 5 feet(1.5m)Rings and ToolsTechnical DataThe ratio of raw material: 1:1(Fixed)The viscosity range of raw material: 200-1000CPS (Under the operate temperature)Max Working pressure: 25 MPa (200 bar)Max fluid temperature: 88°C (190°F)Max Output: 14kg/min (30 lb/min)Heating hose power: 2000W*2Max hose length: 94m (308 feet)Whole power: 17KWVoltage: 380V/400V 3 phaseOperate temperature: 0°C-70°CClean mode: Self-clean by airMax heating hose length: 308 feet (94m)Working fluid pressure: 6-8MpaMachine size: 1400mm*990mm*60mmGross weight: 240KG
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
PU Foam Spray Machine Insulation Foam Spray Machine Waterproof Polyurea Spray Machine
