Lab Two Roll Mill with Heating and Cooling Function

Dongguan Xihua Machinery Technology Co., Ltd.
  • After-sales Service:a Lifetime of Service
  • Warranty:3 Years
  • Roller:Two
  • Certification:CE
  • Condition:New
  • Mixed Capacity:0.1-1kgs or Designated

Base Info

  • Model NO.:XH-401CEW
  • Temperature of The Roller:Electrical Heating Room Temp ~ 300ºC
  • Heating Mode:Electrical Heating
  • Revolution of The Roller:Dual-Frequency Limitless Speed Change
  • Roller Pitch:0.1~5mm Adjustable
  • Size of The Roller:Φ120mm*L350mm or Designed
  • Transport Package:Wooden Case
  • Specification:1300*600*1350mm
  • Trademark:Xihua
  • Origin:China

Description

Technical Parameter Of XH-401CE lab two roll millApplicable materialsPP, PE, PVC, rubber, etc.Mixing capacity0.1-1kgs or designatedRoller diameter120mm or designedRoller width350mm or designedRoller gap0.1 - 5mm (adjustable)Speed of roller0-30r/minCooling modewater coolingHeating modeelectrical heating Safety deviceprotective cover, safety lever, reverse door, emergency stop buttonMotor1HP (2 Sets)Power supply380V/50Hz/3 phases or Customerized

Main Features of lab two roll mill

1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.


Certification

Lab Two Roll Mill with Heating and Cooling Function



Detailed Images
 Lab Two Roll Mill with Heating and Cooling FunctionLab Two Roll Mill with Heating and Cooling Function

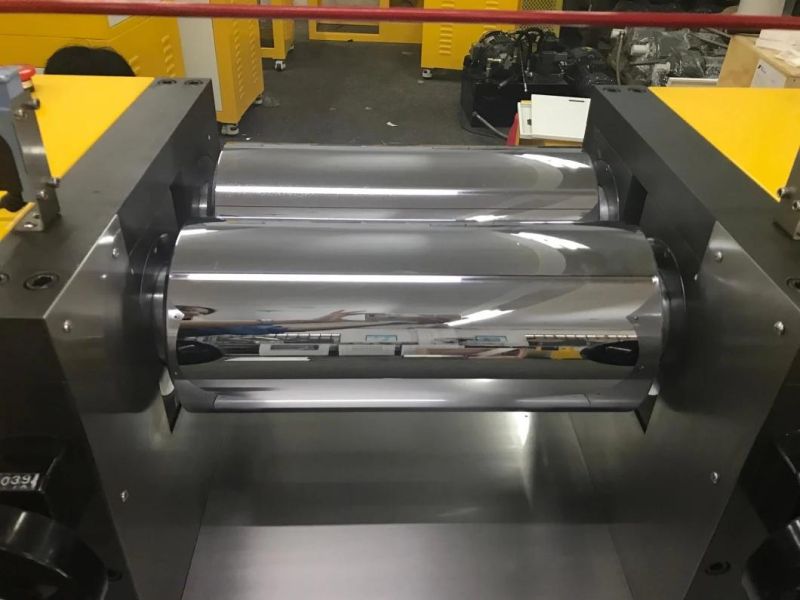

1. Alloy steel roller, High wear resistance, no deformation, high overall hardness, 0-to-0 grinding
2. Rubber and plastic is different. We will suggest the roller to you according to your material.

3. The size of the rollers and equipmentcan be increased according to customer's requirement.
 Lab Two Roll Mill with Heating and Cooling FunctionLab Two Roll Mill with Heating and Cooling Function

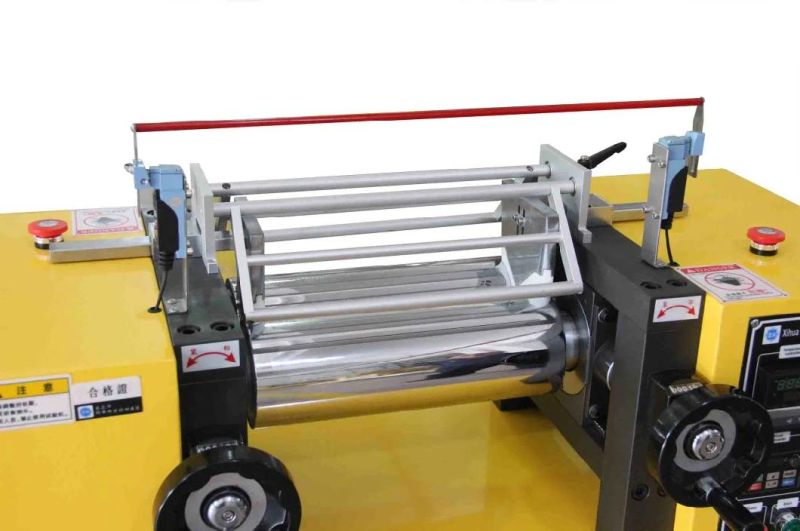

1. Safety Device: Reversible rollers (by kicking at the door of the machine). Safety switch. Protective cover.(It can add some other safety device according to your requirements)

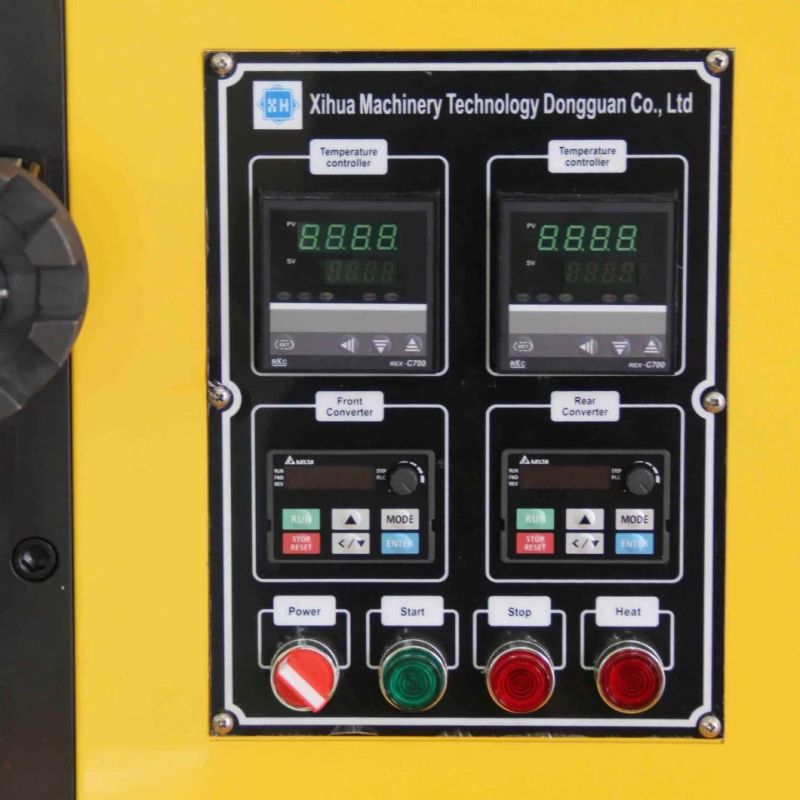

2. It adopts Japanese RKC, LED temperature controller and high precision sensor, Accurate and stable temperature, Speed of roller are easy to control by two frequency converter.

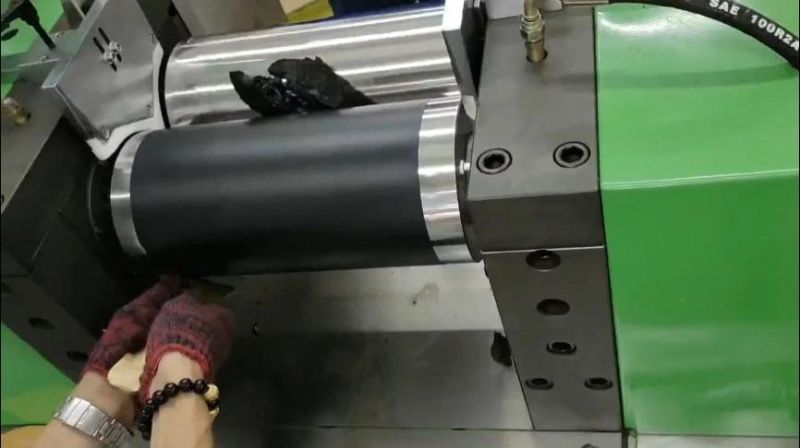

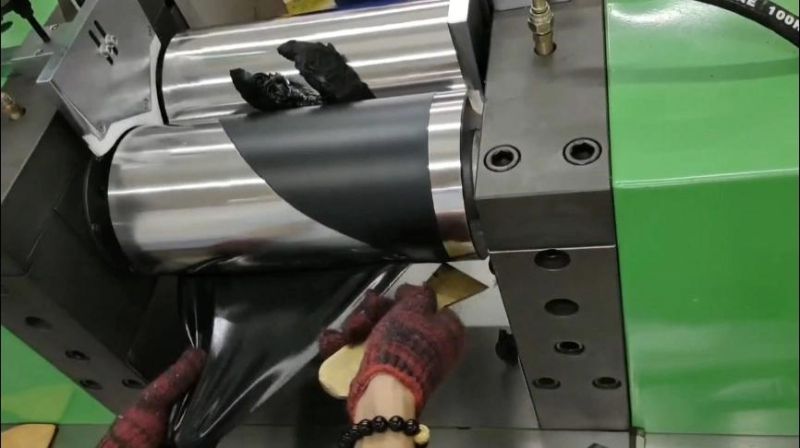

Picture is made of Rubber mixingLab Two Roll Mill with Heating and Cooling FunctionLab Two Roll Mill with Heating and Cooling Function

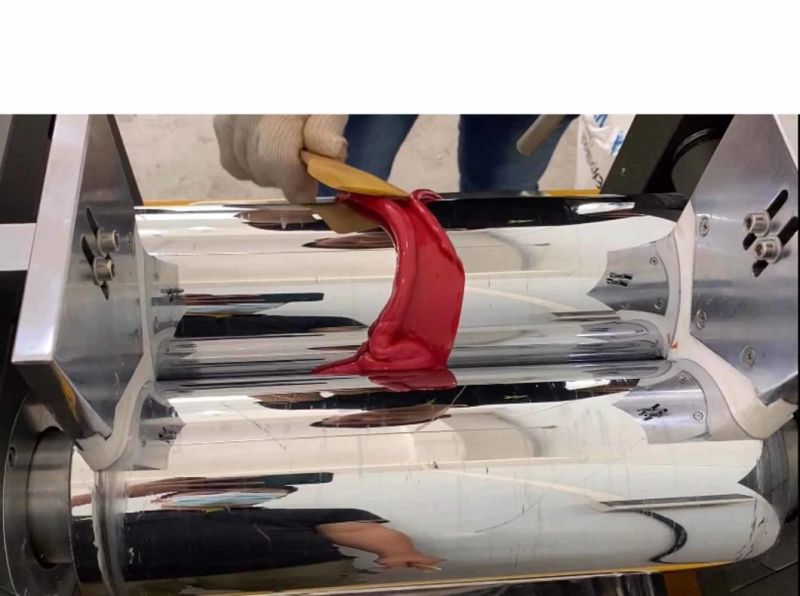

Picture is made of PP mixing
 Lab Two Roll Mill with Heating and Cooling FunctionLab Two Roll Mill with Heating and Cooling Function

Our Service

If you face any problems in future during testing process we promise we will give you a reply within 24 hours and solution provide within 2 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.Onsite Service
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information

A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
24-hour Online contact
Free software upgrades
Free information

A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
Device Problem Handling
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door serviceLab Two Roll Mill with Heating and Cooling Function
