• Model NO.：SKY-12
• Driven Type：Pneumatic
• Power：43kw
• Weight：3500kg
• Voltage：According to Customer Request
• Color：According to Customer Request
• Raw Material：PET
• Making Method of Parison：Extrusion-Blow Molding
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Nude Package,as Customers Request
• Specification：4.5*1.6*1.9 (L*W*H)
• Trademark：SKYMACHINE
• Origin：China
• HS Code：8477300000
• Production Capacity：200 Sets Per Year

Basic Info.

Model NO. SKY-12 Driven Type Pneumatic Power 43kw Weight 3500kg Voltage According to Customer Request Color According to Customer Request Raw Material PET Making Method of Parison Extrusion-Blow Molding Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Transport Package Nude Package/as Customers Request Specification 4.5*1.6*1.9 (L*W*H) Trademark SKYMACHINE Origin China HS Code 8477300000 Production Capacity 200 Sets Per Year

Product Description

SKY-12 Semiautomatic bottle blow molding machine( For 3-6gallon )
Specification:

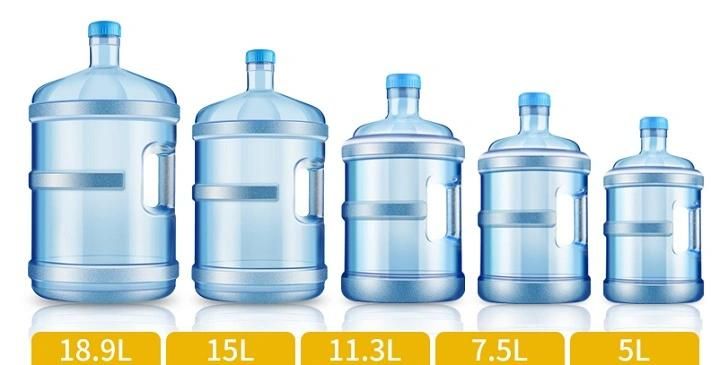

HY-Y blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
Perfect function with economic investment.
Small size and compact construction with no space waste.
Easy to operate and maintain ,operation by one person.
Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.






Semiautomatic Bottle Blower Model List


Model	Bottle Volume	Theoretical Output	Blower(L*W*H)	Blower/Weight	Heater(L*W*H)	Heater/Weight	Power
SKY-12	10L-25L	90-180pcs/h	218*77*196cm	1000kg	237*68*135cm	380kg	40kw
SKY-8Y	0.01L-2L	1200-1600pcs/h	160*60*161cm	500kg	187*63*145cm	250kg	17.5kw
SKY-SA4	0.01L-2.5L	2000pcs/h	190*88*180cm	1000kg	190*66*160cm	380kg	18kw
SKY-5L	0.01L-5L	300-800pcs/h	175*67*186cm	600kg	187*63*145cm	250kg	17.5kw
SKY-10L	5L-10L	300-500pcs/h	193*72*183cm	800kg	187*63*145cm	250kg	17.5kw

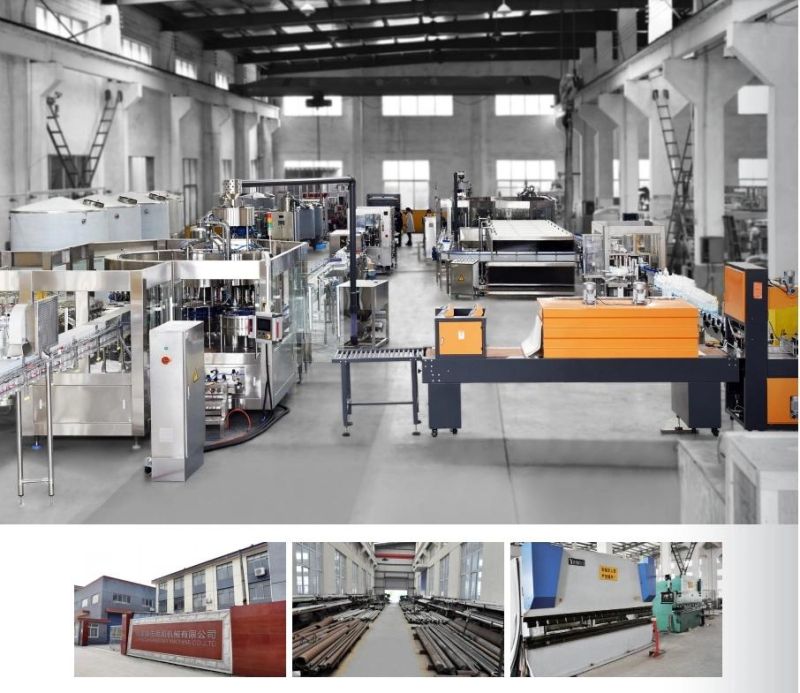

CompanyProfile





FAQ

1. A: Are you factory?How many workers do you have?

    B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.

2. A: What about after sale service?

    B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

3. A: What about installation?

    B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.

4. A: What do we do if we encounter problem about the machine ?

    B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

5. A: How can you control the quality and delivery?

    B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .

Customer Photos





Package: standard export wooden case
Manufacture time: 30~60 days after signing the contract
Installation and adjustment time: one week at least
Guarantee time: 12months after machines running in buyer's factory.
