• Model NO.：BX-SJ
• Machine Weight：Depend on Machine Size
• Certification：CE
• Film Type：LDPE, HDPE
• Machine：Film Blowing Machine
• Certificate：CE,SGS
• Transport Package：Film Packing
• Specification：CE, SGS
• Trademark：BINHAI
• Origin：Ruian City, Zhejiang, China
• HS Code：8477309000
• Production Capacity：180 Sets,Year

Basic Info.

Model NO. BX-SJ Machine Weight Depend on Machine Size Certification CE Film Type LDPE, HDPE Machine Film Blowing Machine Certificate CE,SGS Transport Package Film Packing Specification CE, SGS Trademark BINHAI Origin Ruian City, Zhejiang, China HS Code 8477309000 Production Capacity 180 Sets/Year

Product Description

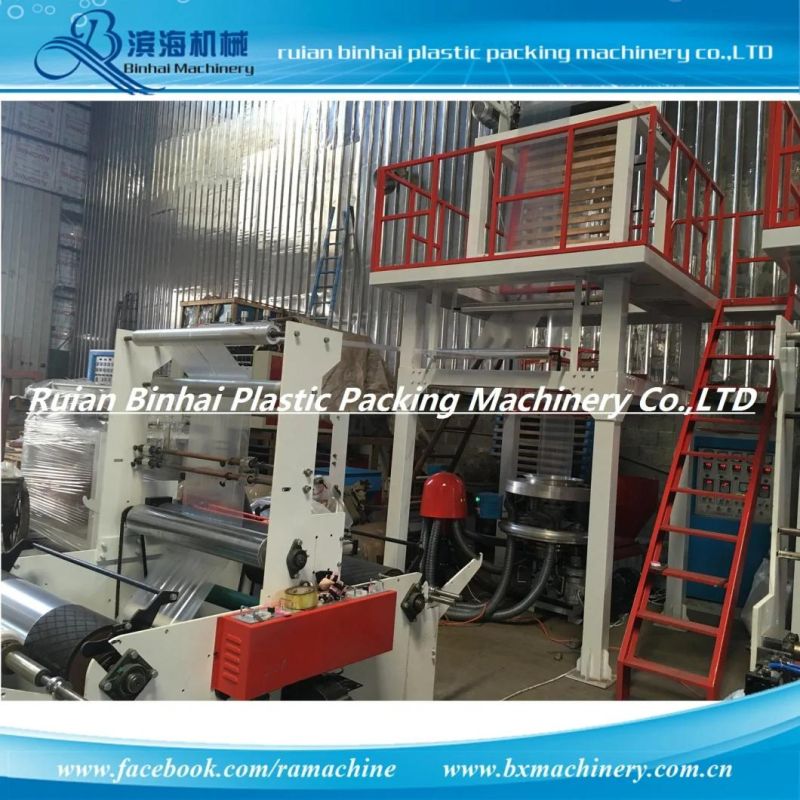

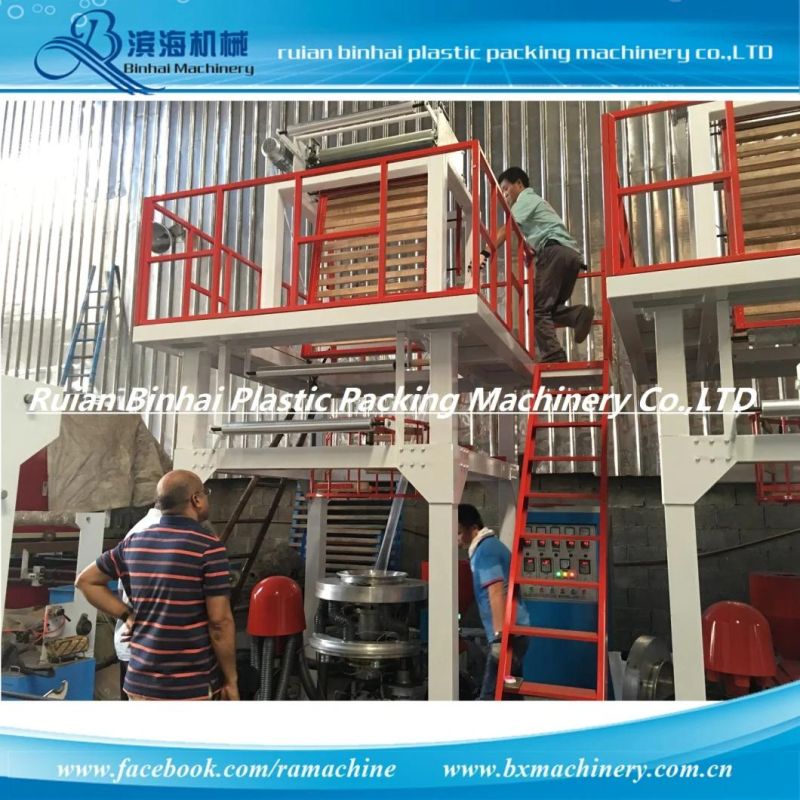

Characteristics For SJ Series Film Blowing Machine

It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.

Optional equipment:

1) auto loader
2) embossing roller
3) film surface treater
4) die rotary device
5) air compressor
6) mechanics screen changer
7) up and down




Model	SJ-B50	SJ-B55	SJ-B65	SJ-B65-1
Screw Diameter	50mm	55mm	65mm	65mm
Screw Ratio(L/D)	28: 1	28: 1	28: 1	28: 1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	11Kw	15Kw	22Kw	22Kw
Max Output	30-35	40-45	50-55	60-65
Max. Folding Width of Film	600mm	800mm	1000mm	1200mm

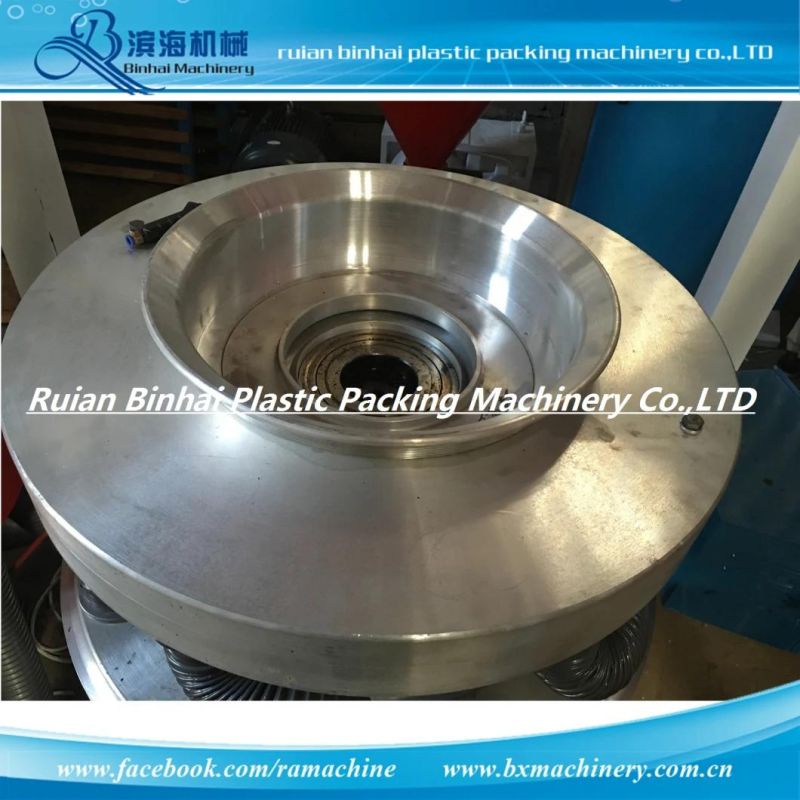

Die head	Φ 60, φ 120	Φ 80, φ 150	Φ 120, φ 200	Φ 150, φ 250
Single-sided Thickness of Film	0.008-0.08mm	0.008-0.08mm	0.008-0.08mm	0.008-0.08mm
Total Power	22Kw	26Kw	30Kw	36Kw
Weight of Machine	2T	2.3T	2.6T	3T
Overall Dimensions	4000 x 1800 x 4600mm	4200 x 2000 x 4900mm	4600 x 2300 x 5600mm	4800 x 2500 x 5800mm

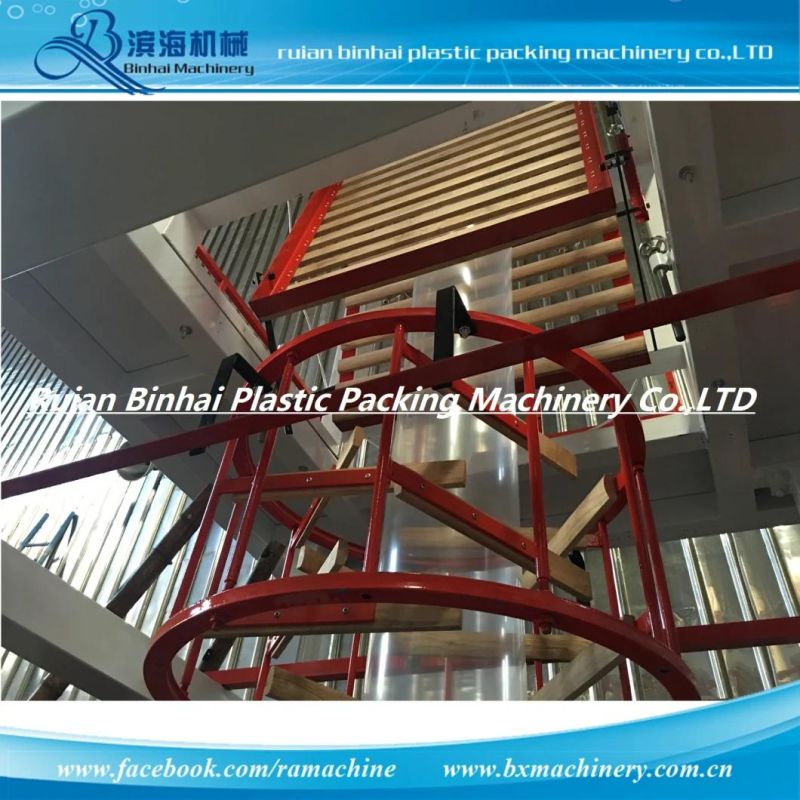

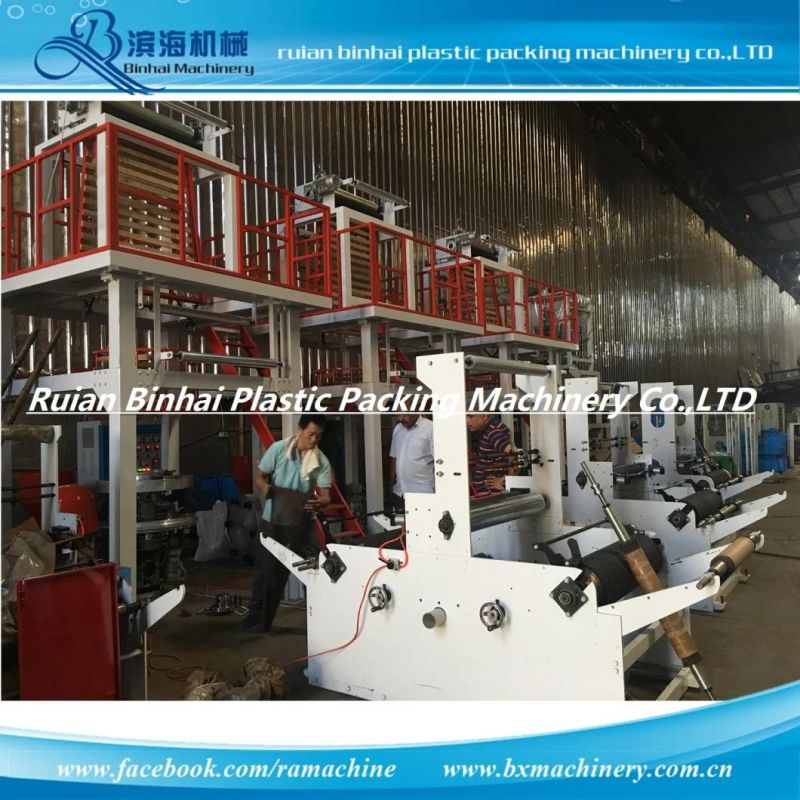

 PE  Film Blowing Machine :

---- What's your products size
---- Products need print not
---- Film need slit not
---- Single Layer, Two Layer or Three Layer  ?

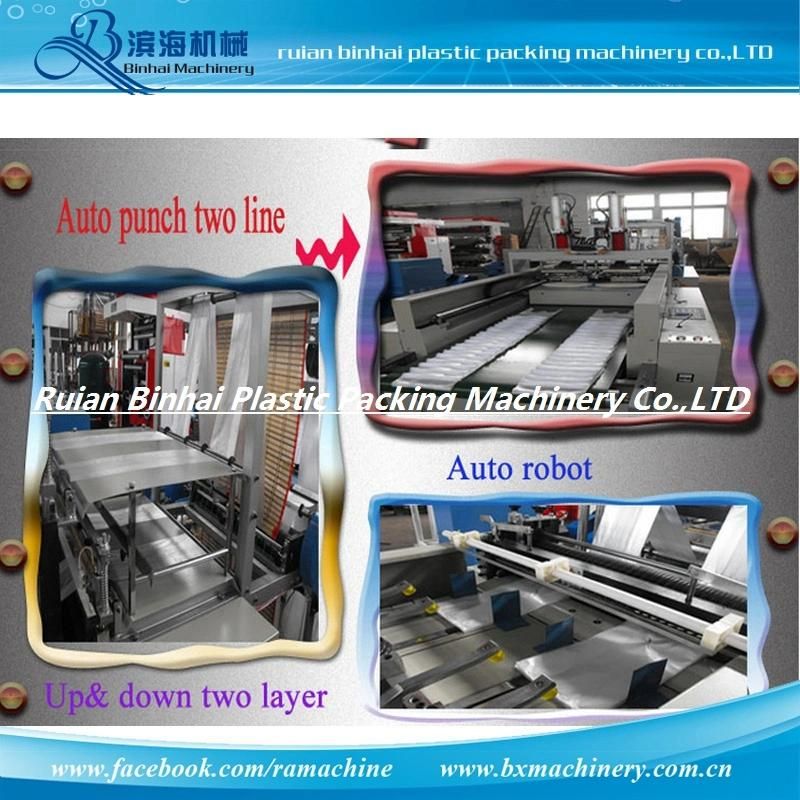

This is Bag Making Machine for T shirt Handle bags , / shopping bags/ garbage bags.

Cold Cut
Do one line , two line , Four Lines , 6 Lines .
with auto puncher . (Optional : Manual puncher )
If your material is HDPE  , Suggest Heat cut  , one line and two lines as optional .















shipping & Package




The End , thanks for your reading .
