Automatic Plastic Thermoforming Machine for PS/BOPS/PVC/Pet Material
Zhejiang Hongyin Machinery Co., Ltd.- Certification:UL, CE, ISO, ISO9001:2008
- Column number:Four Column
- Molding Method:Thermoforming
- Automatic Grade:Automatic
- Computerized:Computerized
- Automation:Automatic
Base Info
- Model NO.:HY-51,62
- Driven Type:Pneumatic
- Raw Material:BOPS, PVC, Pet,HIPS
- Application:Plastic Packaging
- Brand Name:Hongyin
- Model Number:Hy-51,62
- Processing Type:Plastic Thermoforming Machine
- Product Type:Plastic Packaging
- Max Forming Area:510*620mm
- Transport Package:Wooden Packaging
- Specification:CE
- Trademark:HongYin
- Origin:Zhejiang Ruian
- HS Code:847780000
- Production Capacity:50sets ,Years
Description
Basic Info.
Model NO. HY-51/62 Driven Type Pneumatic Raw Material BOPS, PVC, Pet,HIPS Application Plastic Packaging Brand Name Hongyin Model Number Hy-51/62 Processing Type Plastic Thermoforming Machine Product Type Plastic Packaging Max Forming Area 510*620mm Transport Package Wooden Packaging Specification CE Trademark HongYin Origin Zhejiang Ruian HS Code 847780000 Production Capacity 50sets /YearsProduct Description
Automatic Plastic Thermoforming MachineI. Introduction With The Machine
HY-51/62 automatic plastic thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming and cutting info one process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.
II. Application Area:
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.
III. Machine Picture

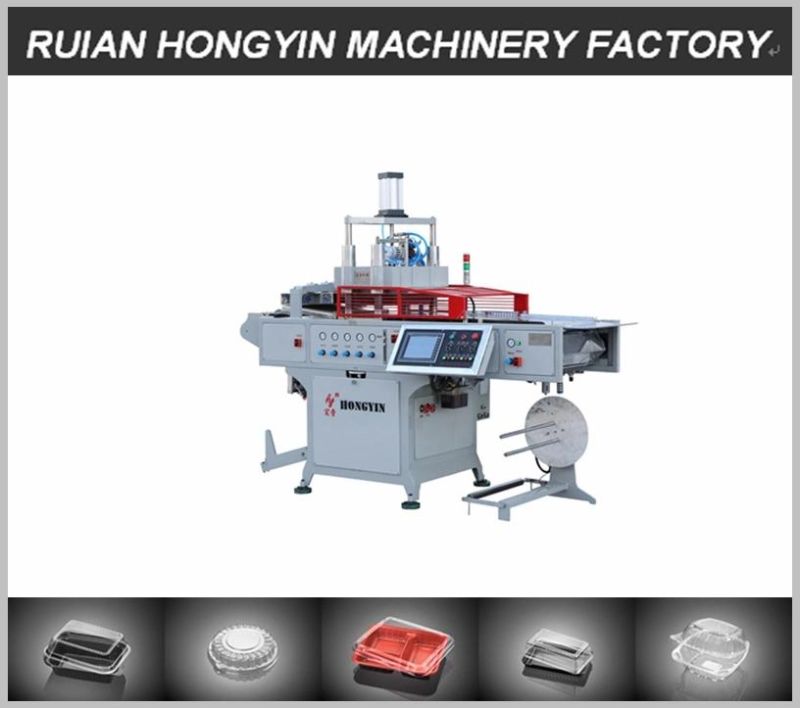

1. HY-51/62 automatic plastic thermoforming machine workshop.
2. The HY-51/62 plastic thermoforming machine's stacker
This stacker can be on-line with fully automatic BOPS plastic thermoforming machine, realizing stable and successful production.

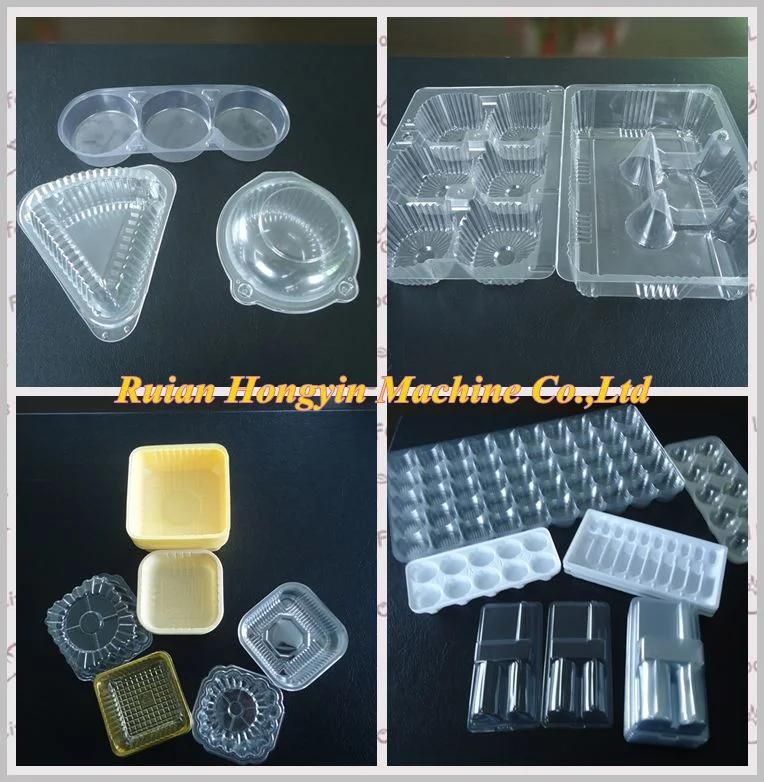

3. HY-51/62 thermoforming machine products samples
IV. About Ruian Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Ruian Hongyin Company have a specialize and efficiency working team. If you are new on the printing and packing area, Some samples of your products could be shew to us will be appreicate, we will give you specialized suggestion of whole work.
2. Installation Service:
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training, cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.
3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
If you are interest in our machine, please feel free and contact me.
Contacter: Michael Rao
Tel: 00 86 15158704325
Fax: 0577 6555 3321
Website: http: //www. hongyin. cn
www. china-hongyin. com
1Forming area:510×620mm | 2Forming depth:100mm |
3Sheet thickness range:0.15-1mm | 4Sheet roller diameter:710mm |
5Cutting length:6350mm | 6Ari pressure:0.7Mpa |
7Water consumption: 10Liters/min(15-20ºC) | 8Air consumption:2200 Liters/min |
9Forming Speed:600-1200 Cycles/min | 10Power:3-N AC380V±15V 50/60HZ |
11Preheater power:2kw | 12Mould plate heating power:4.8kw |
13Heating plate power:15kw | 14Sheet width:650mm |
15Weight:2500kg | 16Dimension(L×W×H)2750×1410×2350×(mm) |
