• Model NO.：ht
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Application：Rigid,Semi-Rigid,Soft PVC Film,Sheet
• Size：Customized
• Capacity：Customized
• Transport Package：Plywood
• Specification：CE
• Trademark：B-TRUST
• Origin：China
• Production Capacity：350-4000kg,H

Basic Info.

Model NO. ht Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Application Rigid/Semi-Rigid/Soft PVC Film/Sheet Size Customized Capacity Customized Transport Package Plywood Specification CE Trademark B-TRUST Origin China Production Capacity 350-4000kg/H

Product Description

Rigid PVC Sheet Calendering Line
Main application: vacuum forming PVC sheet, medical packaging PVC sheet, PVC magcard material,PVC poker sheet, PVC clock face, colored PVC sheet etc.

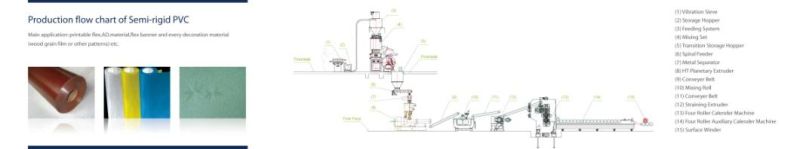

Semi-rigid PVC Sheet Calendering Line
Main application: printable flex, AD material, flex banner, decoration material(wood grain film,marble film etc.)

Soft PVC Sheet Calendering Line
Main application: various kinds of inflatable toys, raincoat material, salt film, agricultural film, packing for home textile etc.

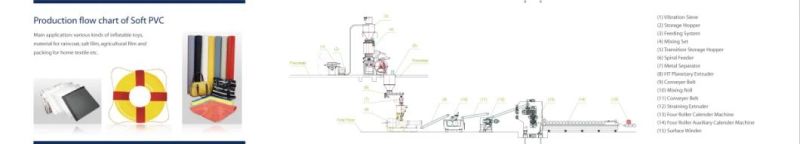

PVC Film/Sheet Calendering line
1.Automatic Weighing System
For powder measuring&liquid measuring
Function: auto dosing, auto feeding, PLC auto control.
2.Super Mixer
Jacketed barrel,pheumatic discharging,stainless steel surface
3.Cooling Mixer
Jacketed barrel,pheumatic discharging,stainless steel surface
4.Planetary extruder
Perfect plasticizing & homogenizing quality,excelent self-cleaning screws, long service life,
electric power savings    , short formula change times,maximum CaCO3 /filler plastification capacity,low
cost,competitive Product quality
5. Mixing Roll
Bearing standing:iron casting processing with lubricating holes, auto. material turnover device,adjustable air cylinder control,gyro spinning type
6.4-roll Calender machine/5-roll calender machine/6-roll calender machine
Application:high quality rigid,simi-rigid and soft PVC sheet.
Composition:body, roller unit,gap adjusting device,roller suspension & bending device,cross device,stock stop device,reduction gearbox,main rotary unit,cardan,lubrication system,oil-pressure system,bottom roller scrap take-off device,piping,power off ON-OFF
7.embossing, cooling,scrap cutting unit and platform scale
Parts of Machine:leading outlet unit,embossing wheel unit,cooling wheel unit,waste film trimming,piping
8.Dual axial type auto. center  winder
Profile steel welded frame, tempering treatment, tension control system
9.AC Motor and control system
Location: calender machine and its rear segment ,main circuit switch, other circuits switch and protection circuit
10.Roller temperature control system
Temperature control: oil-type die heater,electric heating; micro-computer working system; all-in-one fail-safe, displaying and controlling entrance, exit of hot kerosene and temperature setting, with excellent functions of automatic safety protection
11.Conveyors and scrap winders
12.Die heater(heated-used cooling wheel in rear segment)
