• Model NO.：JS-TGW120
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Extruder：120X30mm
• Output：100-250kg,H
• Width：3000mm
• Power：190kw
• Weight：8.5tons
• Dimension：16X4X4.2m
• Transport Package：Suit for Sea Transport
• Specification：1 set
• Trademark：JUNSHENG
• Origin：China
• HS Code：8477209000
• Production Capacity：20set,Year

Basic Info.

Model NO. JS-TGW120 Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Extruder 120X30mm Output 100-250kg/H Width 3000mm Power 190kw Weight 8.5tons Dimension 16X4X4.2m Transport Package Suit for Sea Transport Specification 1 set Trademark JUNSHENG Origin China HS Code 8477209000 Production Capacity 20set/Year

Product Description

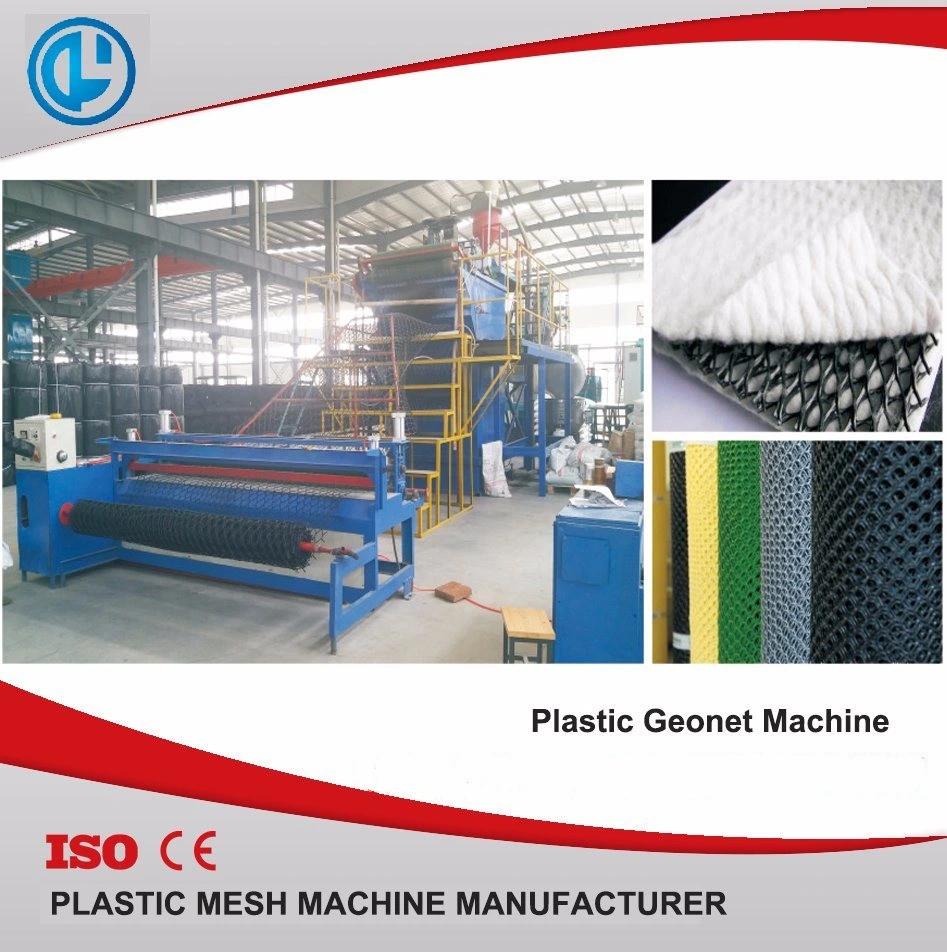

Plastic Geonet Machine with One Extruder From China

Description

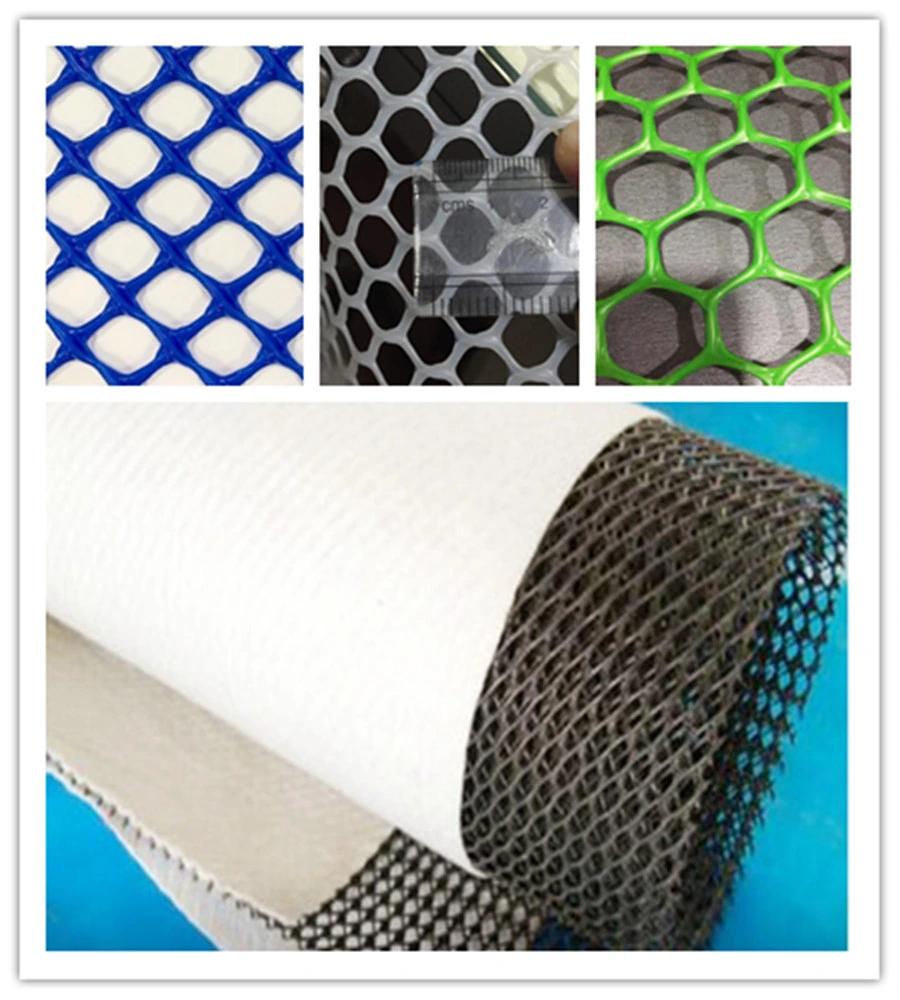

Plastic geonet machine is mainly use HDPE, LDPE, PP as raw materials, adding antistatic agent, anti-aging agent and other additives, then extrusion into the net, this kind of net with the features like wear-resiatant, corrosion resistant, toughness and other features, can be replaced by wire mesh.





Specification

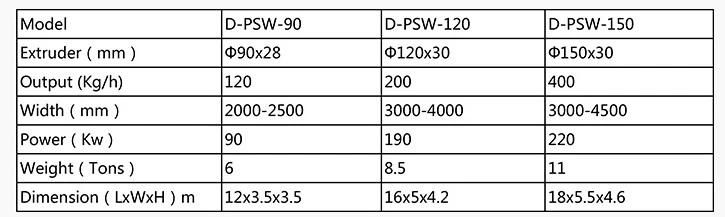

Technical Parameters

Model                                                           DY-TGW120

1.1 Automatic feeder                                     1 set
Feeding method                                            by vacuum
Hopper material                                            stainless steel
Feeding height                                              ≤5m
Feeding capacity                                           300kg/h/set
1.2 Single screw extruder                               1 set
Screw dia.                                                    Φ120mm
L/D ratio                                                      30:1
Rotary speed                                                 0-75rpm
Main motor power                                         110KW
Frequency speed adjustment                           transducer motor
Transducer                                                    ABB brand
Heating power                                              approx. 65KW
Extrusion capacity                                         180kg/h
Heaters                                                         6 zones heaters
Screw & Barrel material                                38CrMoAIA, Nitrided
Nitrided depth                                               0.4-0.7mm
Nitrided rigidity                                            HV720-940



1.3 Rotary die head                                       1 set
Material                                                       high grade mould steel, nitrided
Mould                                                          1 set (as sample)
Product width                                               4000mm
Product thickness                                          Max. 8mm
Rotation type                                                different directions rotary type
Heating method                                             heating ring of stainless steel
Heating power                                              approx 10KW
Driving method                                             frequency control of speed adjusting
Driving power                                              5.5KW
1.4 Mandrel                                                  1 set
Material                                                       steel
Width                                                           4000mm



1.5 Cooling water tank                                   1 set
Cooling method                                            by water
Material                                                       stainless steel plate
Water overflow device                                   1 set
Draw-off roller                                             2 sets
1.6 Cutting and flat system                             1 set
Cutting method                                             fixing knife
Knife material                                               high-speed steel
Flatting method                                             flatting shelf
Knife Q'ty                                                 1 piece



1.7 Draw-off system                                      1 set
Width of draw-off roller                                4200mm
No. of draw-off grade                                    two grades draw-off
Driving method                                             by frequency conversion
Draw-off method                                          by rubber rollers
Draw-off power                                            4KW
Max draw-off speed                                       0.2-5m/min
Clamping method                                          pneumatically
Working air pressure                                      0.4-0.5Mpa
1.8.Winding system                                        1 set
(1) cutting method:                                  Saw blade cut off
(2) length measurement:                              accurate length, pre-alarm
(3) cutting power:                                   1.5Kw
(4) Cutting stroke:                                   4.2
(5) Coil width:                                      4.2 meters
(6) winding torque control:                            Electromagnetic torque controller control
(7) Torque range:                                    20-100Nm

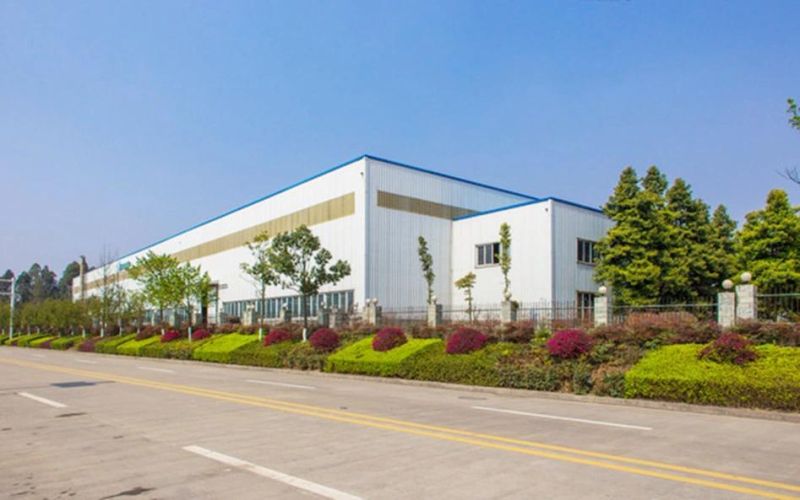

Company Profile

we are professional manufacturer of Plastic net machine, our chief engineer had engaged in this fields for more than 20 years.

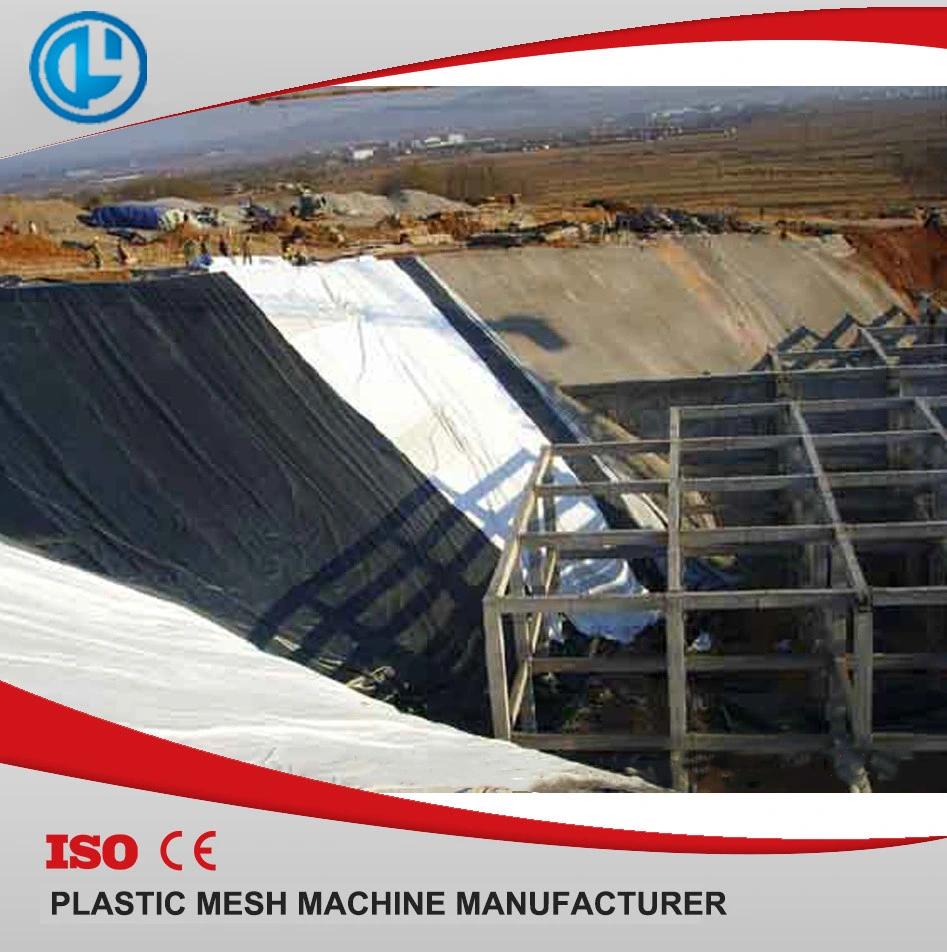

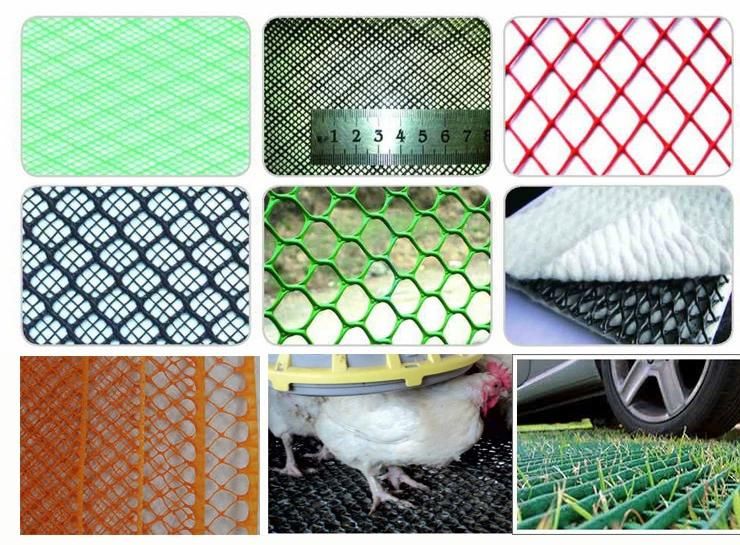

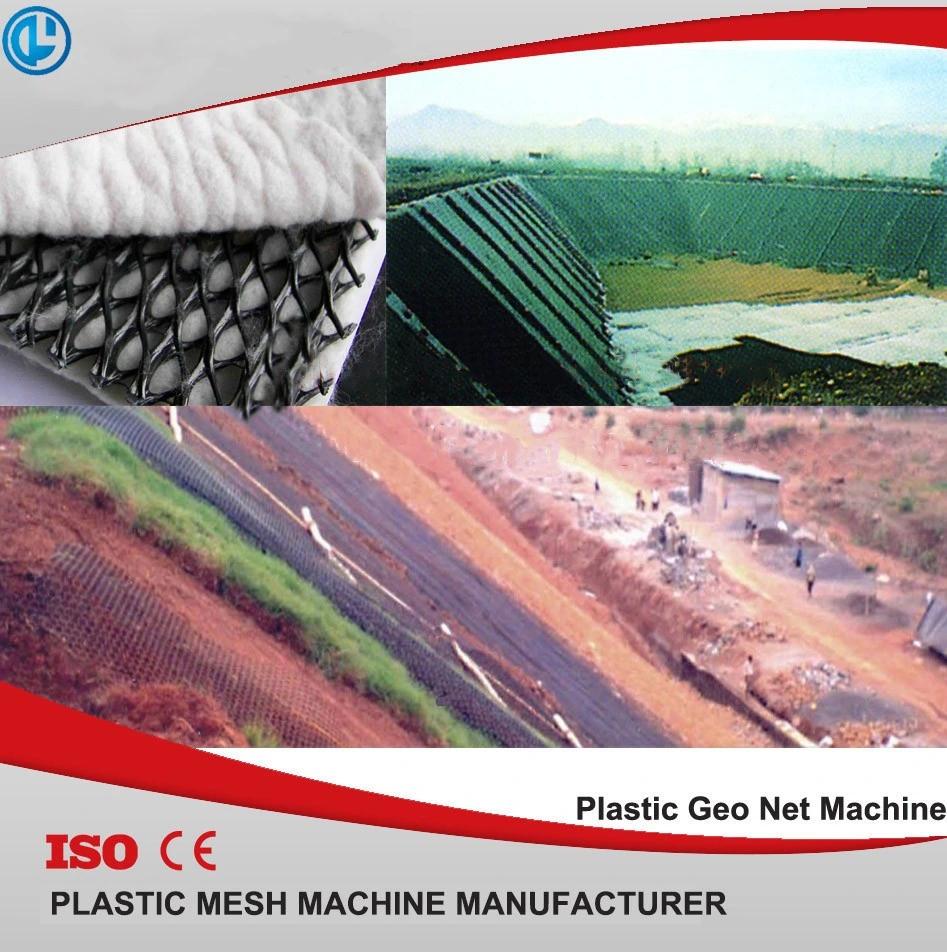

Our company Familiar with Rotary Die Head tech and Reciprocating Die Head tech, also developed new structure design, have many patents. our diamond mesh machine and square mesh machine choosing one extruder and modular control, low cost, more steady, more flexible and more efficient, easy to operate and need less worker, will easy bring benefit to you, is very popular home and abroad, the products can widely used in geonet, breeding, decoration, garden fence, landscaping, safety warning fence and so on.
