• Model NO.：ABLD120
• Max. Product Volume：300L
• Screw Diameter：120mm
• Robot System：Available
• Delivery Time：60days
• Guarantee：1 Year
• Station Number：Single
• Export Port：Shanghai
• Company Attribute：Manufacturer
• Screw L/D Ratio：28 L,D
• Screw Drive Power：75 Kw
• Output of HDPE：240 Kg,H
• Clamping Force：800 Kn
• Max.Size of Mold：1000X1500mm
• Mold Stroke：600-1500mm
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Film Packing
• Specification：ABLD120
• Trademark：Dawson
• Origin：Zhangjiagang
• HS Code：8477301000
• Production Capacity：up to Product

Basic Info.

Model NO. ABLD120 Max. Product Volume 300L Screw Diameter 120mm Robot System Available Delivery Time 60days Guarantee 1 Year Station Number Single Export Port Shanghai Company Attribute Manufacturer Screw L/D Ratio 28 L/D Screw Drive Power 75 Kw Output of HDPE 240 Kg/H Clamping Force 800 Kn Max.Size of Mold 1000X1500mm Mold Stroke 600-1500mm After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Film Packing Specification ABLD120 Trademark Dawson Origin Zhangjiagang HS Code 8477301000 Production Capacity up to Product

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

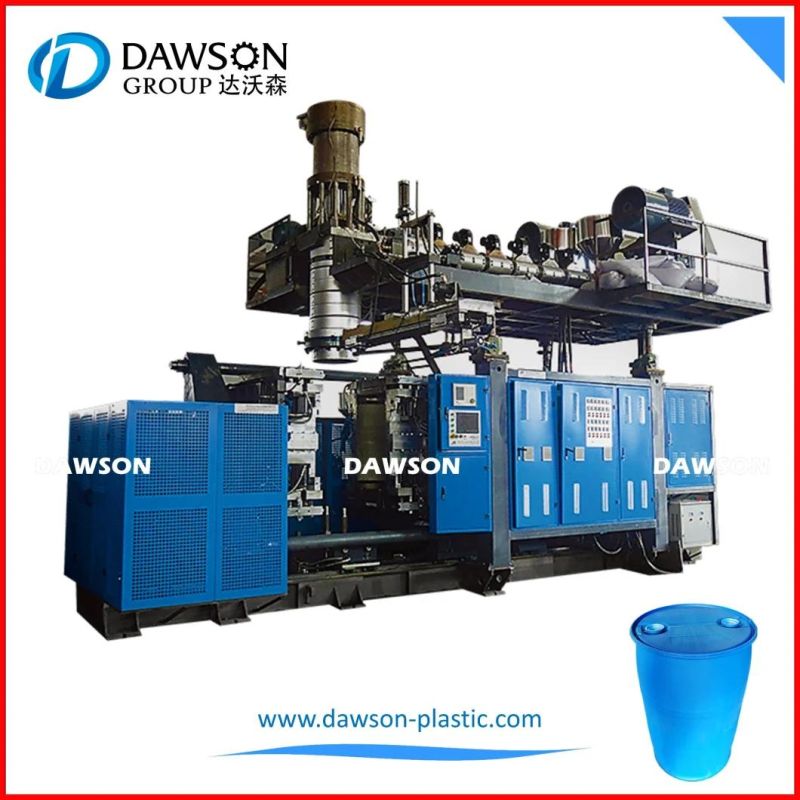

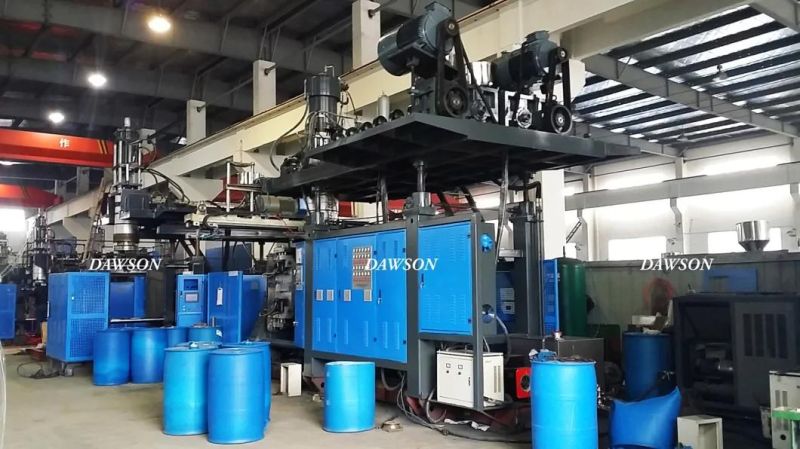

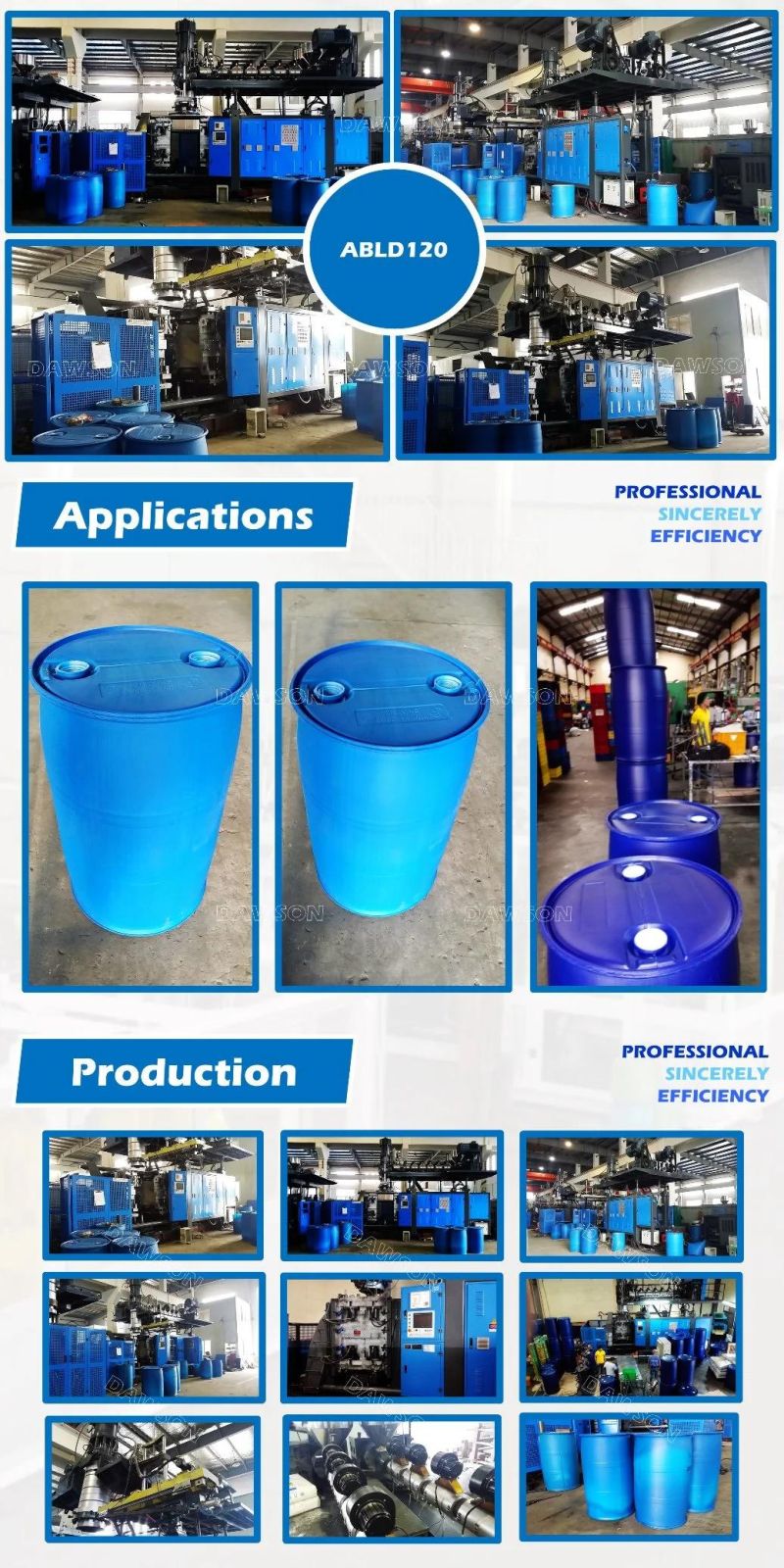

 Accumulation Blow Molding Machine ABLD120







ABLD120 Accumulation Blow Molding Machine

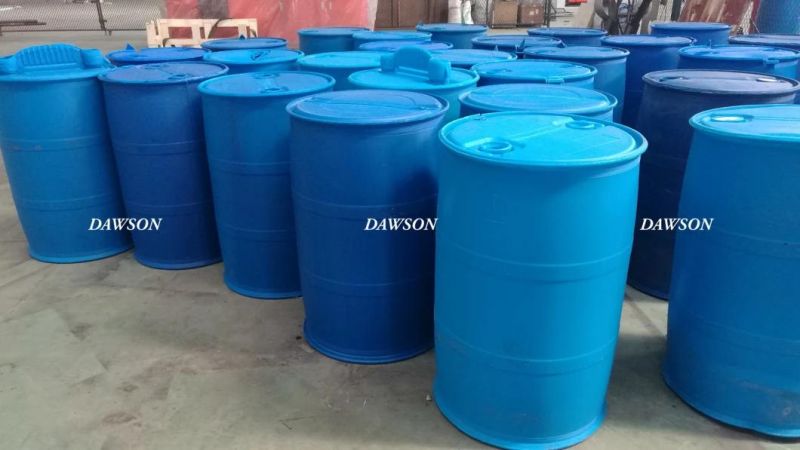

was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L.

The features of this machine:

(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L.

(2)Single station single die head design, very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

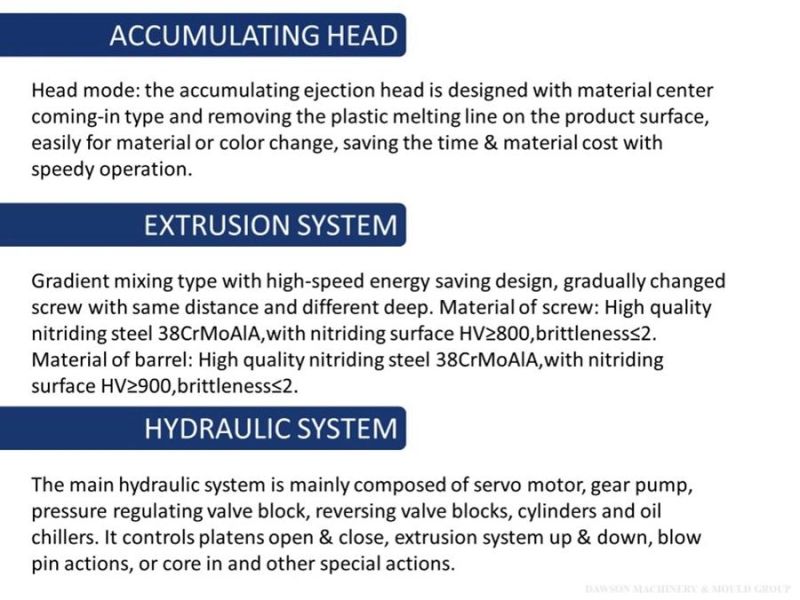

(5)Accumulation die head, MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

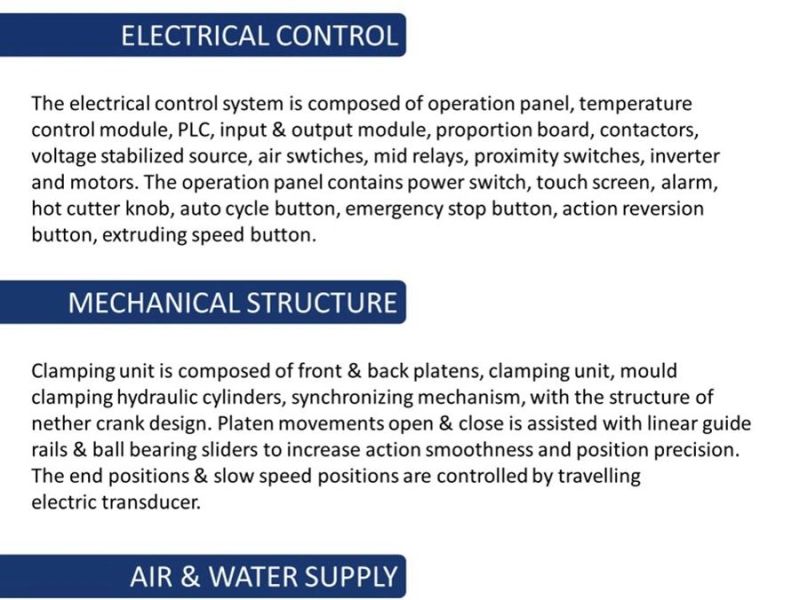

(7)Auto lubricant system controlled by PLC.

Blow Molding Machine ABLD120


Max. Product volume	250liters
Output capacities	as per samples
Screw diameter	120mm
Screw L/D ratio	28 L/D
Screw drive power	75 KW
Screw heating capacity	30 KW
No.of heating zone	5 zones
Output of HDPE	240 KG/H
Oil pump drive power	45 KW
Clamping force	800 KN
Max.size of mold	1000X1500mm
Mold stroke	600-1500mm
Max.die diameter	520mm
Die heating power	12 KW
Die heating segments	5 zones
Blowing pressure	0.8mpa
Air volume	1.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	180 L/MIN
