Laboratory Three Layers Strech Film Casting Machine

Dongguan Xihua Machinery Technology Co., Ltd.
  • After-sales Service：a Lifetime of Service
  • Warranty：3 Years
  • Material Processed：PE
  • Roller：Three
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：XH-432
  • Certification：CE, ISO9001:2008
  • Customized：Customized
  • Condition：New
  • Applicable Materials：PP, PE, PVC, PS, Pet, etc.
  • Screw Diameters：ABA 25, 20, 25mm
  • Screw Rotating Speed：0-95 Rpm (Adjustable)
  • Screw L/D Ratio：33:1
  • Temperature Range：Room Temperature - 300ºC
  • Film Thickness：0.02-1mm
  • Film Width：50--250mm (Customized)
  • Die Width：400mm
  • Working Voltage：380V,50Hz,3 Phases or Customerized
  • Transport Package：Wooden Case
  • Trademark：Xihua
  • Origin：China

Description

Specifictions of Lab Three-layers cast film machineApplicable materialsPP, PE, PVC, PS, PET, etc.Screw diametersABA 25,20,25mmScrew rotating speed0-95 rpm (adjustable)Screw L/D ratio33:1Temperature rangeRoom temperature - 300ºC Film thickness0.02-1mmFilm width50--250mm (customized)Die width400mmWorking voltage380V/50Hz/3 phases or CustomerizedMotor power2.2 KWTotal Power7 KWControl modeSIEMENS PLC Control

Laboratory Three Layers Strech Film Casting Machine




Main features

1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated;

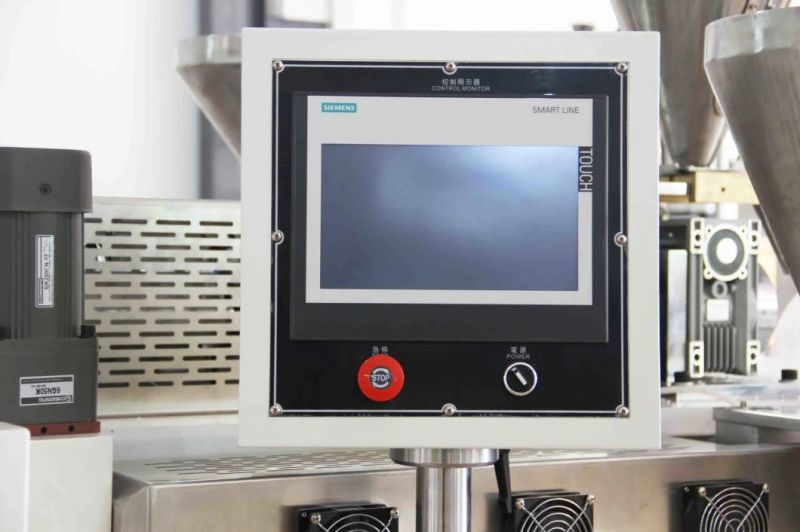

4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;

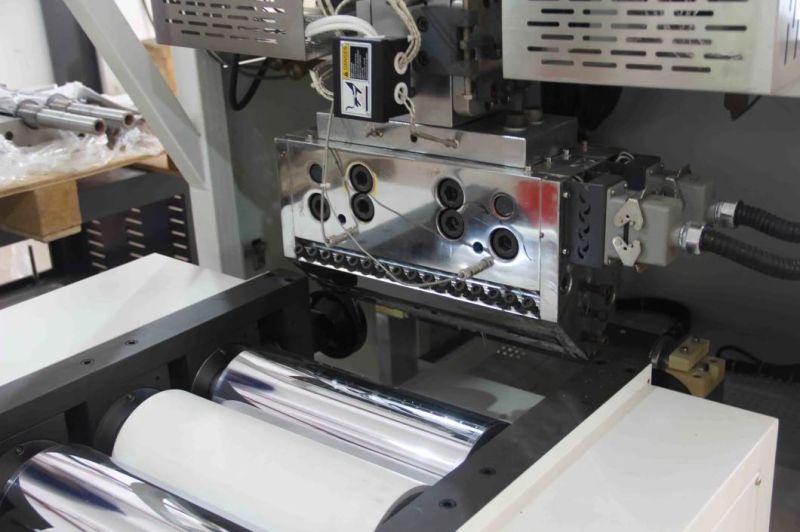

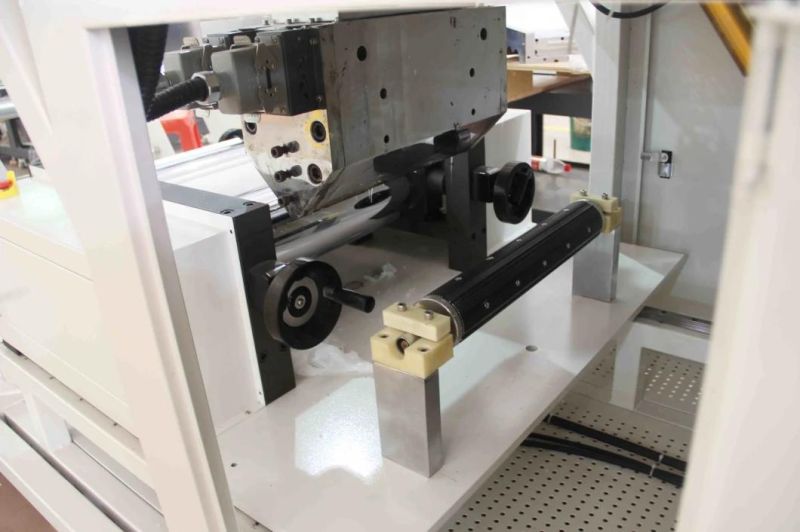

Details images

 Laboratory Three Layers Strech Film Casting MachineLaboratory Three Layers Strech Film Casting Machine

 Laboratory Three Layers Strech Film Casting MachineLaboratory Three Layers Strech Film Casting Machine
