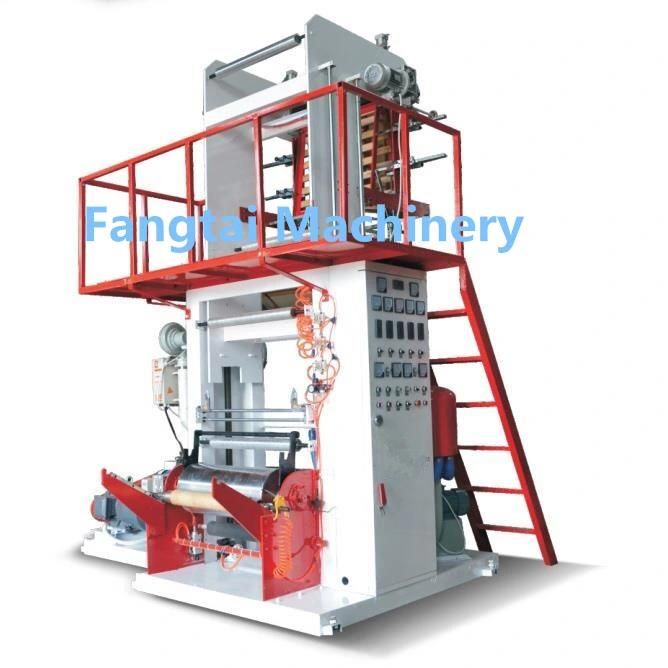

High-Speed PE LDPE HDPE Extruder Plastic Film Blowing Machine with Rotary Die
Ruian Fangtai Machinery Co., Ltd.- Type：Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：800mm
- Screw Diameter：55mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：HS-900
- Machine Weight：4600kgs
- Certification：CE
- Double Screw Diameter：55
- Width of Film (mm)：300-800mm
- Thickness of Film (mm)：HDPE 0.008-0.08 LDPE 0.01-0.2
- Die Size：HDPE φ100
- Max Output (Kg/H)：60 Kg
- Screw L/D Length：30 :1
- Screw and Cylinder Material：38 Crmoala
- Main Motor：18.5 Kw
- Gearbox Model：146
- Take up Motor (Kw)：1.5kw
- Blower (Kw)：1.1 Kw
- Transport Package：Stretch Film or Wooden Case Packing
- Specification：CE
- Trademark：Fangtai
- Origin：China
- HS Code：8477301000
- Production Capacity：20sets,Month
Description
Model
HS-700
HS-900
HS-1100
HS-1350
Screw diameter
Φ50
Φ55
Φ60
Φ65
Width of film (mm)
300-600
300-800
300-1000
300-1200
Thickness of film (mm)
HDPE 0.008-0.08 LDPE 0.01-0.2
HDPE 0.008-0.08 LDPE 0.01-0.2
HDPE 0.008-0.08 LDPE 0.01-0.2
HDPE 0.008-0.08 LDPE 0.01-0.2
Die size
HDPE φ60
HDPE φ100
HDPE φ120
HDPE φ150
Max output (kg/h)
50 kg
60 kg
70 kg
90 kg
Screw L/D length
30 :1
30 :1
30 :1
30 :1
Screw and cylinder material
38 CRMOALA
38 CRMOALA
38 CRMOALA
38 CRMOALA
Main motor
15 kw
18.5 kw
22 kw
30 kw
Gearbox model
133
146
146
180
Optional equipment
1) auto loader
2) embossing roller
3) film surface treater
4) die rotary device
5) air compressor
6) mechanics screen changer
7) up and down
Ruian Fangtai Machinery Co., Ltd. is a professional manufacturer of plastic packaging machinery and paper packaging equipment., we have more than ten years of producing machine history. The main products are: Bubble film making machine, stretch film making machine, printing machine, film blowing machine, bag making machine, and so on. Rely on high technology, customer foremost, perfect after-sales service, we produce exquisite machines and equipment, and develop new machines. The bubble film making machine and stretch film making machine have got the CE certification, entering European Union countries. We hold the mission of "quality comes first, customer foremost", constantly improve their internal mechanisms, and after-sales service system. Pay close attention to internal management; Positive feedback to achieve a virtuous circle, excellent equipment manufacturers and the public.
We also have the customers from worldwide, including Middle East, Asia, and Africa. Our machines are warmly welcome among our customers. We believe that we will do more to meet our customers′ needs with best service. We pursuit mutual benefit and common development and we are willing to work with all sectors to establish long-term and stable business relationships. We sincerely welcome new and old customers, domestic and international presence.
Our Service
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing. Our engineer is onlie for helping you with technical support, also our engineer can come to your factory to help you install and test the machine.And we will sent you manual and video.
Q3. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
FAQ
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
