• Model NO.：SJ-
• Computerized：Computerized
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Take up Motor：2.2kw
• Film Thickness：0.01-0.2mm
• Speed：10-50m,Min
• Single/Double Winder：Yes
• Transport Package：Film Package
• Specification：SGS
• Trademark：YUNBANG
• Origin：China
• HS Code：84779000
• Production Capacity：10 Set,Month

Basic Info.

Model NO. SJ- Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Take up Motor 2.2kw Film Thickness 0.01-0.2mm Speed 10-50m/Min Single/Double Winder Yes Transport Package Film Package Specification SGS Trademark YUNBANG Origin China HS Code 84779000 Production Capacity 10 Set/Month

Product Description

Product Description

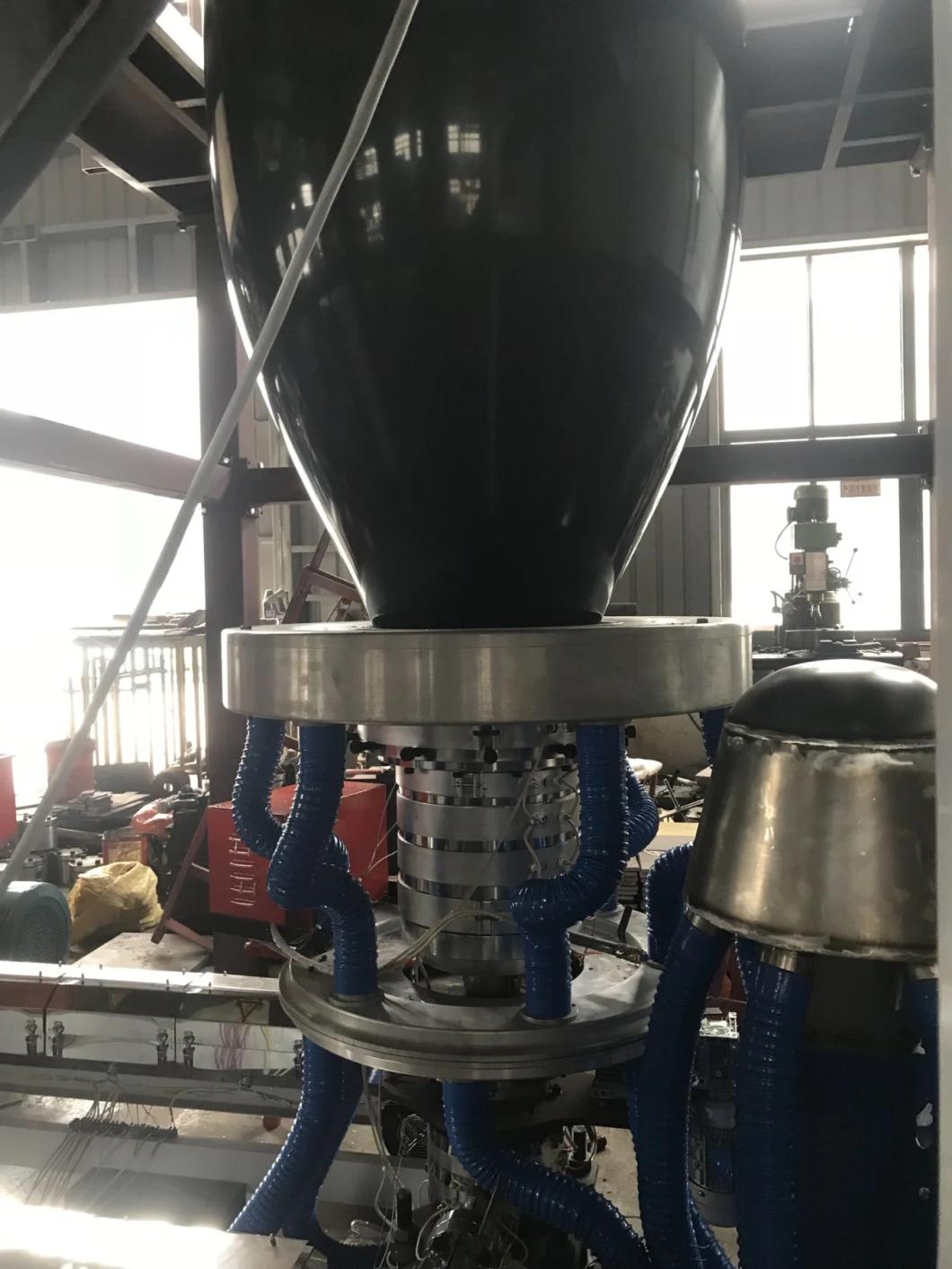

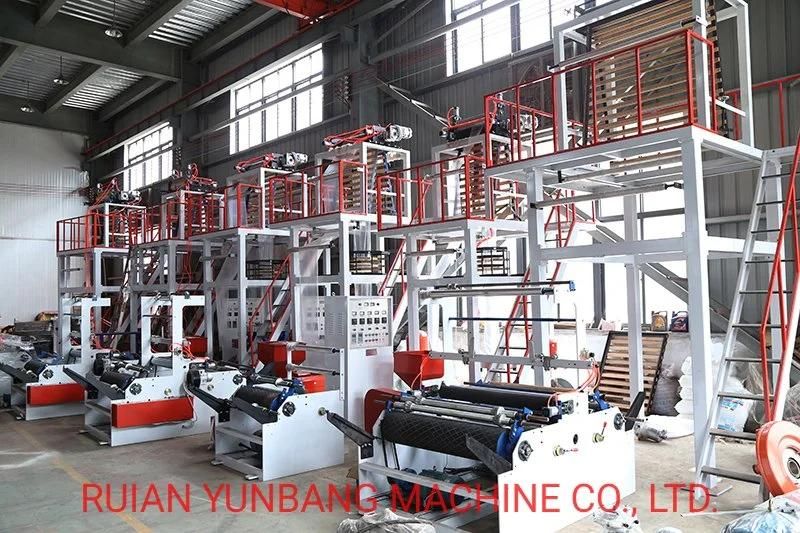

Multilayer Rotary Die Head LDPE LLDPE Film Extruding Machine


Use:
Multilayer Rotary Die Head LDPE LLDPE Film Extruding Machine is suitable for plastic PE film making, like high density polyethylene film(HDPE), low density polyethylene film(LDPE), linear low density polyethylene film(LLDPE),etc. Machine is widely used in plastic industries and packaging industries.

Main Specifications:

Raw Material	HDPE,LDPE,LLDPE
Screw Diameter	45mm*2
Screw L/D ratio	28:1
Lay flat width	400-1200mm
Thickness	0.01-0.2mm
Main Power	18.5kw*2(380v, 50Hz 3 Phase)
Production capacity	80-100kg/hr
Take-up speed	5-50m/min


Characteristic:
1. Main motor and take-up motor are controlled by frequency inverters
2. by pneumatic cylinder system to adjust the gap of take-up roller
3. material of screw and barrel: 38CrMoAlA Polished with Niterided Treatment
hardness of heat treatment: screw HV≥740, barrel HV≥900
depth of hardening:0.6-0.7mm
brittleness grade: ≤2 grade
4. Gear box: Surface heat quenching and tempering/auto. Oil lubricated
5. Die material: steel 45#/surface treatment of flow channel: hard chrome-plating
6. Digital display temperature controller
