Low Smoke Halogen Free Cable Material Masterbatch Granulation Machine (CE/ISO9001)

Qingdao Create Trust Industry Co., Ltd.
  • Raw Material:PE
  • Screw:Single-Screw
  • Inverter:Inverter
  • Electromagnetic Heater:Electromagnetic Heater
  • Automation:Automatic
  • Computerized:Computerized

Base Info

  • Model NO.:CX-300
  • Customized:Customized
  • Certification:CE, ISO9001:2008, QS, UL, GMP
  • Condition:New
  • Products:Masterbatch Granules
  • Control System:Center Control by PLC System
  • Capacity:From 500kg,H to 1500kg,H
  • Testing of Machine:We Will Use Your Material to Test Working
  • Service:We Provide Both Machine and Formula
  • Transport Package:Woodend Box
  • Specification:CE,ISO9001
  • Trademark:CX
  • Origin:China
  • HS Code:847780000
  • Production Capacity:100 Sets,Month


Basic Info.

Model NO. CX-300 Customized Customized Certification CE, ISO9001:2008, QS, UL, GMP Condition New Products Masterbatch Granules Control System Center Control by PLC System Capacity From 500kg/H to 1500kg/H Testing of Machine We Will Use Your Material to Test Working Service We Provide Both Machine and Formula Transport Package Woodend Box Specification CE/ISO9001 Trademark CX Origin China HS Code 847780000 Production Capacity 100 Sets/Month

Product Description

Name:  Low smoke halogen free cable material Masterbatch granulation machine,Masterbatch pelletizing machine,Masterbatch pelletizer,Masterbatch Pelleting Machine,Masterbatch granulator,Plastic extruder,plastic extruding machine,plastic extrusion machine,Plastic extruding machine

Model : CX180

Usage: This line machine is maily designed for masterbatch production. such like PP,PE,LLDPE/LDPE/HDPE ect. also can produce carbon black masterbatch too.

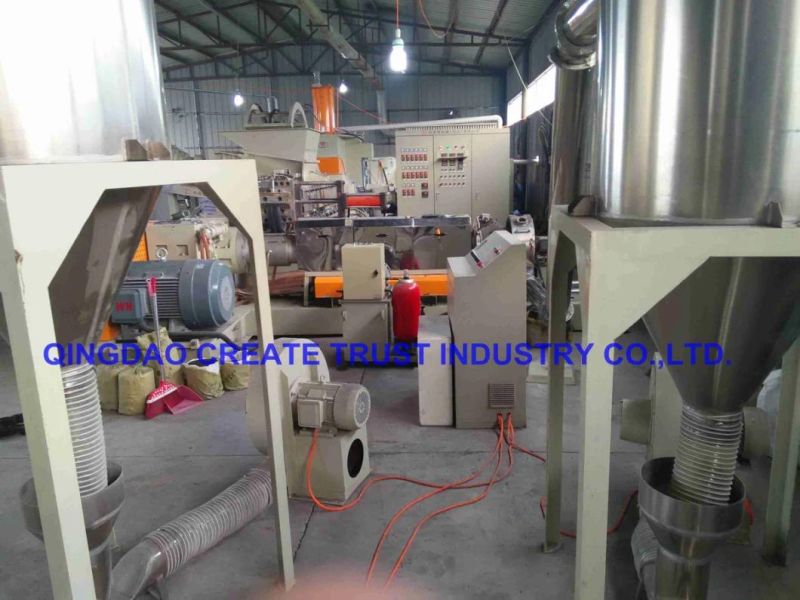

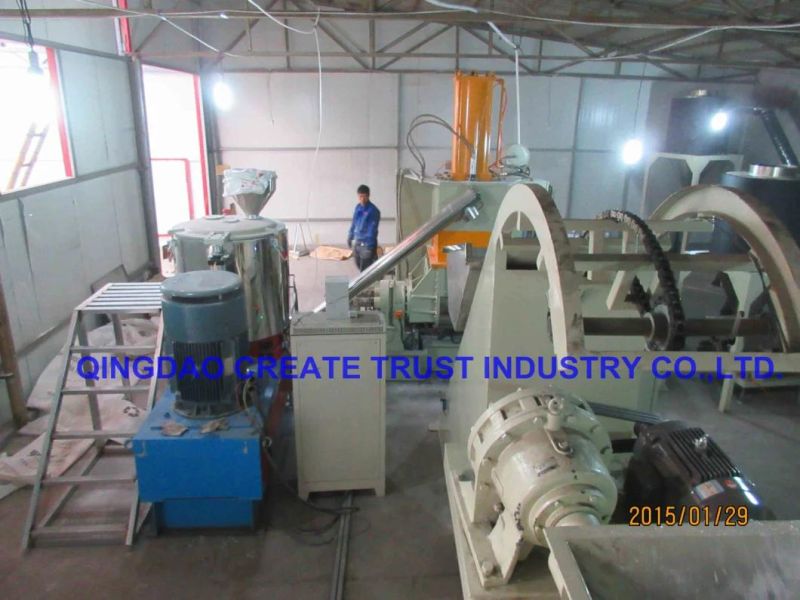

Consist of machinesd: rubber kneader (banbury mixer),force feeding machine,extruder,cutting machine ,cooling machine ect.

Low Smoke Halogen Free Cable Material Masterbatch Granulation Machine (CE/ISO9001)

Details instruction below :

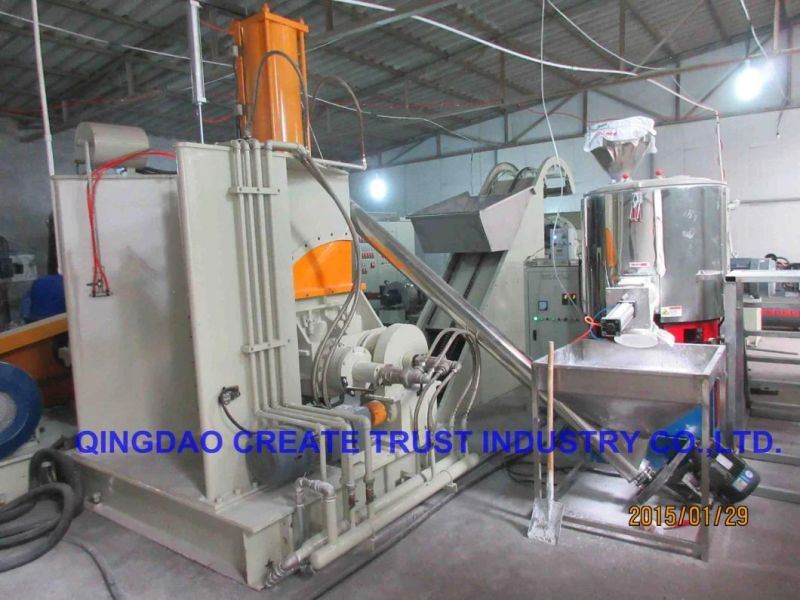

1- Rubber kneader (banbury mixer) :  Specially designed for plastic mixing, with heating system. rotor is stellite welded,after polishing and quenching. this will make rotor and chamber high wear-resistant.

The reducer are hardened gear teeth,no noise,longlife us .

2- Force feeding device :

 INVT frequency converter.
Double screw for material feeding,
Contaction with single screw is Harvard structure

3- The  extruder is the highest technology design now in this area :

Screw is made by nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Cooling by water .
Barrel material is nitriding steel (38CrMoALA), Surface is under nitrogen treatment, thickness ≥0.7mm, Hardness is HRC70. Outer with stainless steel cover .  Heating of barrel is made by Cast aluminum heater.

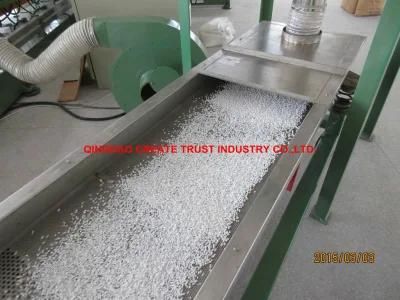

4- Air cooling mould surface hot cutting pelletizer.

All material for water bank,pump and pipes are made by stainless steel. Pipes with cover to protect and easy maintaince

Hydraulic screen changer : fixed between the barrel and head,which can strainer the impurity during working, sametime each exchanged and clean.

The Interlock Control System: we use intelligent instrument,PID parameter setting and double channel. The head of extruder with testing device for temperature and pressure. All the data will be shown and protection the temperature and pressure.
5- The electric parts we used is DELIXI brand,contactor is from SIMENS.
Low Smoke Halogen Free Cable Material Masterbatch Granulation Machine (CE/ISO9001)
Low Smoke Halogen Free Cable Material Masterbatch Granulation Machine (CE/ISO9001)

Service of us :

The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.

All we do is for longterm cooperation , " CREATE TURST" !
