PE Film Extrusion Machine (BX-SJ)
Ruian Binhai Plastic Packing Machinery Co., Ltd.- Type:PE Film Blowing Machine
- Raw Material:PE
- Maximum Folding Width of Film:Depend on Customers
- Screw Diameter:Depend on Film Size and Speed
- Automation:Automatic
- Computerized:Computerized
Base Info
- Model NO.:BX-SJ
- Machine Weight:Depend on Machine Size
- Certification:CE
- Film Type:LDPE, HDPE
- Transport Package:Film Packing
- Specification:CE, SGS
- Trademark:BINHAI
- Origin:Ruian City, Zhejiang, China
- HS Code:8477800000
- Production Capacity:320sets,Year
Description
Main Technical ParametersModel
BX-SJ45/50 BX-SJ55 BX-SJ60 BX-SJ65 Suitable Material
HDPE Max Film Width(mm)
600 800 1000 1200 Film Thickness(mm)
HD:0.008-0.08 Max Extrusion Output HD
30/40kg/hr 50kg/hr 60kg/hr 80kg/hr Extrusion unit Gear Box
133/146 173 173 200 Screw Diameter(mm)
φ45/50 φ55 φ60 φ65 Screw L/D Ratio
28:1 28:1 28:1 28:1 Screw's Material
38 CRMOALA Barrel's Material
38 CRMOALA Barrel's Cooling Fan
250W×2 370W×2 370×2 370×3 Thermo Control (zone)
3 3 3 4 Driving Motor (kw)
7.5/11 18.5 22 30 Extrusion Die Die Size (mm)
HD:φ60/80 HD:φ80/100 HD:φ100/120 HD:φ120/φ150 Screen Changer
Standard manual Thermo Control (zone) 2 2 2 2 Air Ring (mm)
φ620 φ620 φ620 φ760 Cooling Blower (kw)
1.5 2.2 2.2 3 Center Steady Stick
1 PCS Take-UP Unit Roller Width (mm)
φ138×650 φ138×850 φ138×1100 φ138×1300 Embossing Roller Width
550mm 750mm 1000mm 1200mm Take-UP Motor (kw)
0.75 1.1 1.1 1.5 Take-UP Speed(M/min)
10-60 10-60 10-60 10-60 Height adjustable type
700mm Winding Unit Type OF Winder
Surface Friction Single Winder Roller Width (mm)
700 900 1100 1300 Winding Motor (N.M)
6 10 10 16 Winding Speed(M/min)
10-60 10-60 10-60 10-60 Voltage
380V, 50HZ, 3PHASE Cover Dimensions (m)
4.5×2.0×4.3 4.5×2.2×4.5 5×2.5×4.8 5.5×2.8×5.2
Optional :
Auto Loader
Embossing roller
Corona
Die rotary device
Air compressor
Manual mechanics screen
Air cooling device
Double sides winder
1. Port of departure: NINGBO CHINA
2. Port of destination:
3. Packing: Export-standard and sea-worthy wooden case.
4. Shipping Mark: To be determined at customers' option.
5. Terms of payment: 30% T/T Deposit, the balance before shipment
6. Delivery time: Within 10-25 working days after received the deposit
7. Quality Guarantee: 1 year, the seller guarantee the machines are 100% new. The above clause is ONLY effective under the machine is being properly used, any artificial misuse or destroy prepensely is not within the limit of Quality Guarantee.
8. Supplementary Condition: If the buyer need seller`s engineer to go to his factory to help install and test the machine, please be kindly bear their visa, go and return tickets, lodging and eating, salary
9. Validity of offer: 30day
If Your Bags is Star seal Garbage bags as following .
You need a Fold Device on Film Blowing Machine .
we have this kind bags machine, film blowing machine and printing machine.

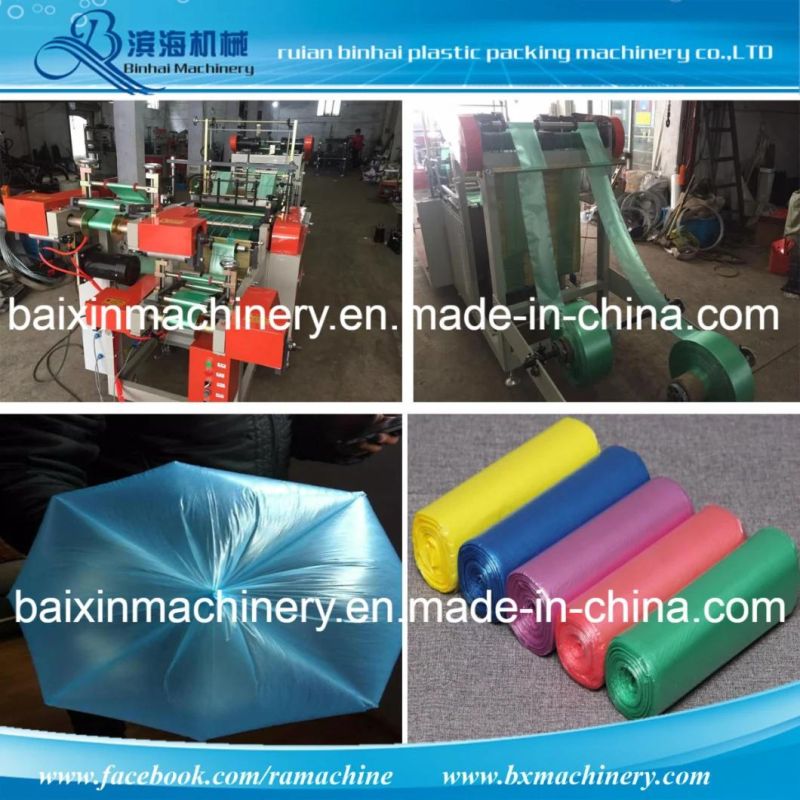

1) Star seal Rolling Garbage bags making machine .
also can do normal not folded bags.
Offer us your bags size, and Bags pictures for us know fold method.

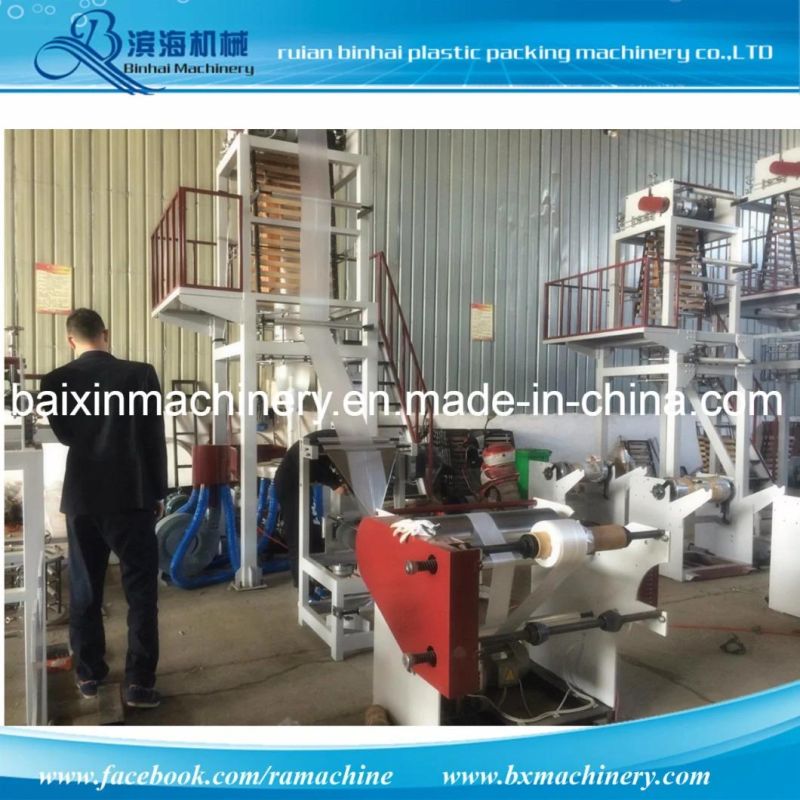

2) This is Film Blowing Machine For Star Seal garbage bags .
Pls , offer us Max. size and Mini size . For example : 600m , 800mm .
Pls , confirm with us ,your bags have Logo not .

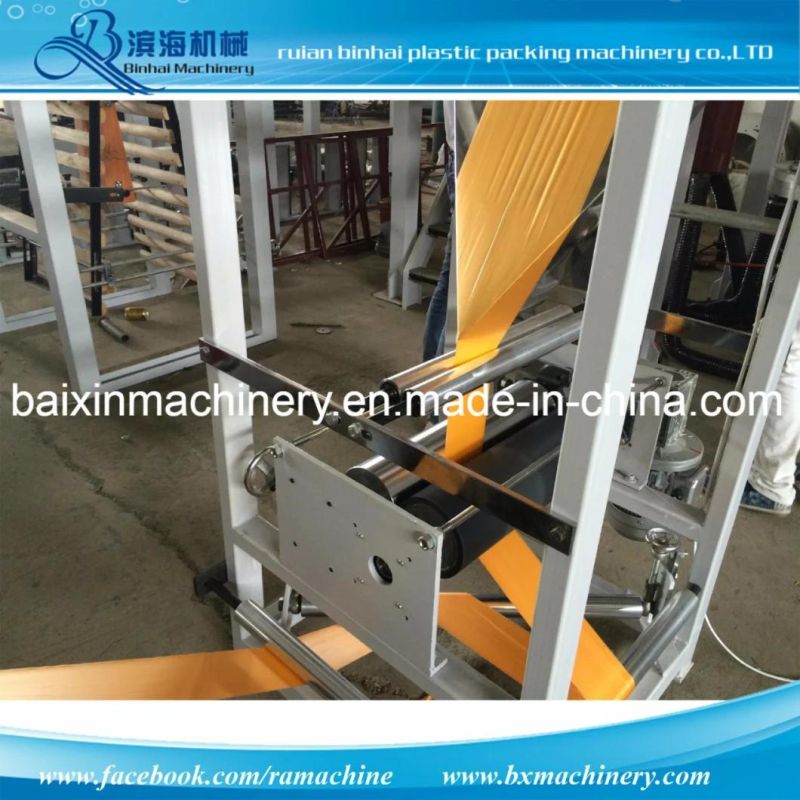

Here is the part For Star seal Folded .

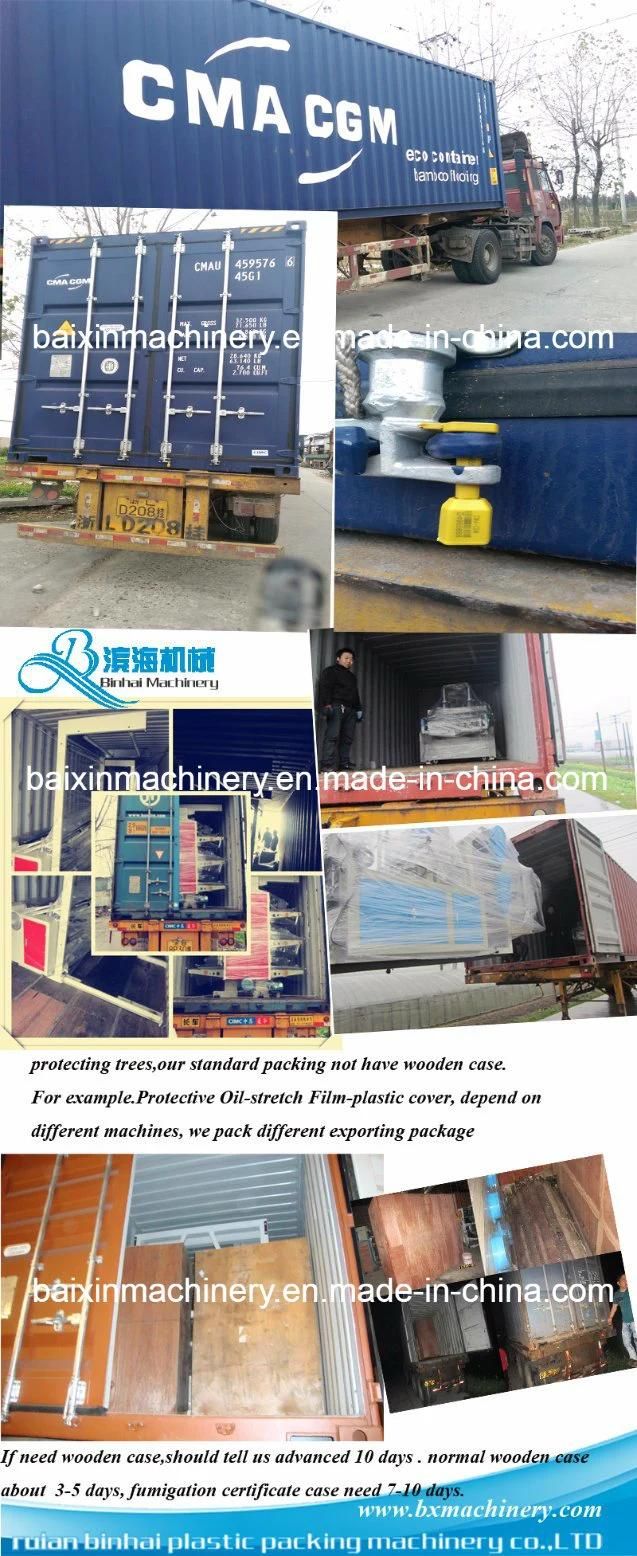

shipping & Package
The End , thanks for your reading .
