• Model NO.：ABLB80-25L
• Certification：CE
• Max Product Volume：25L
• Screw Diameter：80mm
• Condition：New
• Export Port：Shanghai
• Delivery Time：75 Days
• Machine Lifespan：>20 Years
• Plastic Processed：PE, PP
• Company Attribute：Manufacturer
• Machine Weight：11ton
• Machine Size：4.2X3X3.2m
• Screw L/D Ratio：25 L,D
• Max Mold Size：530X550mm
• Voltage：Customer Specified
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Film Packing
• Specification：ABLB80-25L
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：up to Product

Basic Info.

Model NO. ABLB80-25L Certification CE Max Product Volume 25L Screw Diameter 80mm Condition New Export Port Shanghai Delivery Time 75 Days Machine Lifespan >20 Years Plastic Processed PE, PP Company Attribute Manufacturer Machine Weight 11ton Machine Size 4.2X3X3.2m Screw L/D Ratio 25 L/D Max Mold Size 530X550mm Voltage Customer Specified After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Film Packing Specification ABLB80-25L Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to Product

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

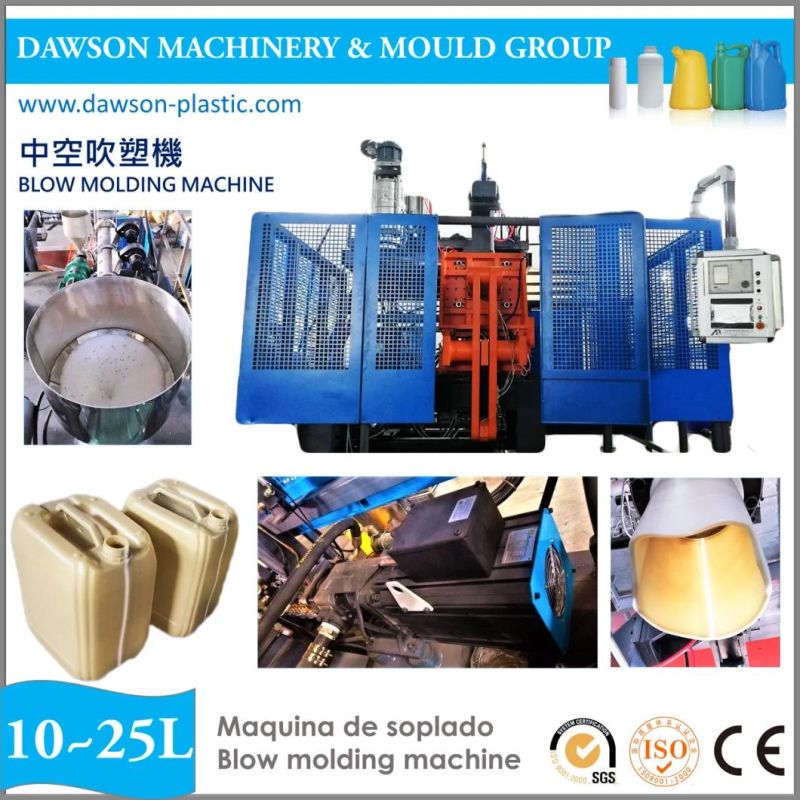

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru.... Automatic Extrusion Blow Molding Machine ABLB80-25L

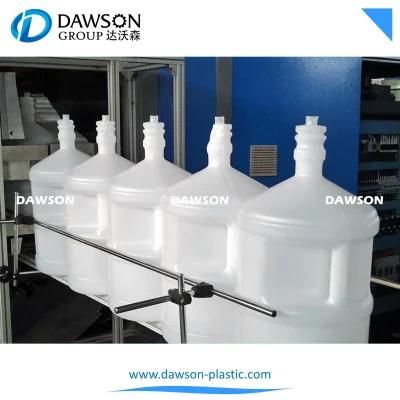

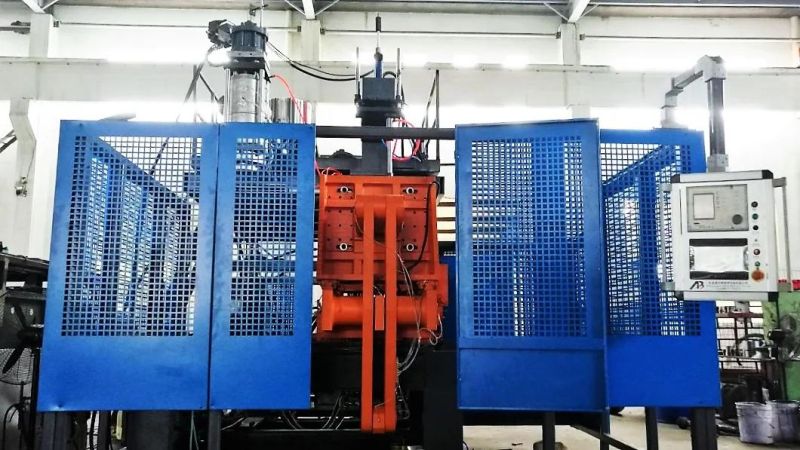

ABLB80-25 Blow Molding Machine is designed to produce 5Gallon Bottles in all shapes which are made of PE,PP,PVC,TPU,TPE,PETG.We have CE and ISO9001 certificate for you,and we offer engineer to your country when necessary.High quality assurance will be provided for you.



Electronical Part	Name Trader
Micro Computer Control System	Japanese Mitsubishi
Temperature Controller	Japanese Mitsubishi
Intermediate Relay	OMRON
Contactor	France Schneider
Motor	Simens Bede
Servo system	Delta,Megmeet
Pover Supply	Taiwan Meanwell
Transducer	ABB
Hydraulic Part	Name Trader
Valves	YUKEN
Oil pipe and Connection	Taiwan
Seal Part	British
Air Part	Name trader
Air Cylinder	AIRTAC
Air Valve	AIRTAC



Max product volume	5 gallon
Output capacity	90 pcs/h
Screw diameter	80mm
Screw L/D ratio	25 L/D
Screw drive power	30 KW
Screw heating capacity	16KW
Heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	22 KW
Clamping force	210 KN
Max size of mold	350-780mm
Mold stroke	550x650mm
Max die diameter	280mm
Die heating power	5.3 KW
Die heating segements	4 zones
Blowing pressure	0.8 mpa
Air volume	0.8 M2/MIN

Type of Blow Molding Machine

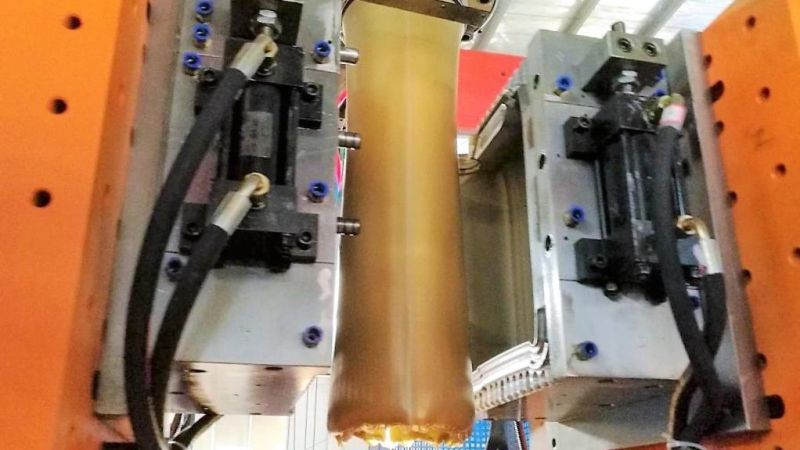

Extrusion blow molding In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected. EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows: 1. Continuous Extrusion Equipment Rotary wheel blow molding systems Shuttle machinery 2. Intermittent Extrusion Machinery Reciprocating screw machinery Accumulator head machinery Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums. Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers. Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking. Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.

Plastic machines we provide ....

Extrusion Blow Molding Machine Injection Blow Molding Machine PET Blow Molding Machine Injeciton Molding Machine Injection Stretch Blow Molding Machine

Applictions ....

Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets. Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields. House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life. Indoor & outdoor :  Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere. Food & Beverage :  The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications. Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.  Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
