• Model NO.：YZJPET 300
• Color：Customerized
• Max Capacity：500-3000kg,H
• Warranty：13 Months
• Voltage：Customer Standard
• The Brand of Motor and Inverter：Siemens or Teco or Else
• The Brand of Electronic Component：Omron or Schneider or Delixi or Else
• Service：Free Installing and Training
• Size of Flakes：12-32mm
• Machine Material：Q235 or Stainless Steel 304
• Power：120-200kw
• Transport Package：Pallet or Wooden Box Package
• Specification：28m*3m*3m
• Trademark：YZJ
• Origin：Sichuan
• HS Code：8477800000
• Production Capacity：20sets,Month

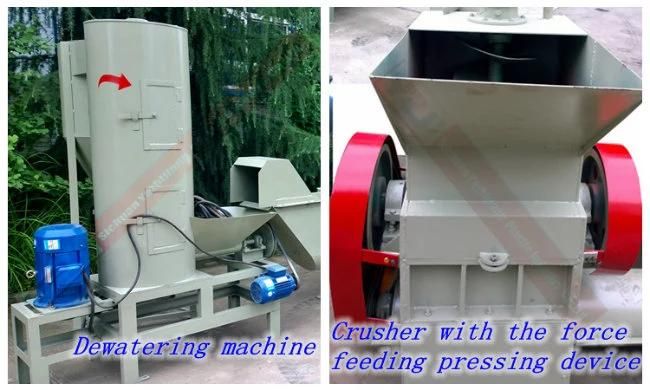

NoUnits    DescribtionModelYZJPET-500/1000/2000/3000Capacity:   500/1000/2000/3000kg/h1Bale   openerSize   of processing package:<1400mmx1600x1000mm2Belt   ConveyorPVC   Belt,adjustable height,removable wheels3Label   removerAir   blower type,removing ratio:>95%;4Sorting   platformWith   metal detector ,6000mm5Belt   ConveyorPVC   Belt,adjustable height,removable wheels6Crusherwith   the force feeding pressing device7Screw   feeder3kw8Vertical   Hotwashing boiler1600m(dia)x2100m(height)9Screw   feeder3kw10High   speed friction washer4000mm11Floating   washing tank4000mmx1200mmx1500mm12Spraying   washing tankfinal   washing13Dewatering   machineRatio   of removing water:≥ 98%14Air   Pipe dryerHeating   by resistance15Storage   silo3500mm(height)x1200mm(diameter)16Control   boxSIEMENS/TECO   Inverter,Schneider/Omron/ Delixi contactor etc;Product Show



After-sales service

1.We provide one-year warranty guarantee for all the machines.  We supply long term spare parts for every customer and 24 hours technical suport by email, calling and door to door service;

2.We run machines in our factory before delivery. Clients check machines running in our factory, and  when
machines arrive in Client's factory, we will send our engineer to run machines in client's factory too.

3. we provide service manual and maintenance instruction of main electric appliance,usage manual of equipment.

4.We also supply installation drawing of water, electricity, gas of equipment.




About Our Company

1. Study plastic recycling process since 1995;

2.Produce the plastic granulate and the plastic recycling machinery at the
same time.


    If you want to know more information of our PET Bottle Recycling Machine For Crushing Washing PET flakes,please contact me directly.
