• Model NO.：SJ65x33
• Condition：New
• Machine Color：as Request
• Extruder Type：Single Screw Exruder
• Raw Material：PE, PPR Granule
• Inverter：ABB
• Contactor：Schneider
• Components：Simens
• Oversea Service：Available
• Warranty：One Year
• Operator：2-4
• Cooling Method：Recycling Water
• Transport Package：in Wooden Case
• Specification：CE ISO
• Trademark：SUKE
• Origin：Qingdao, China
• HS Code：84775900
• Production Capacity：50 Sets Per Year

Basic Info.

Model NO. SJ65x33 Condition New Machine Color as Request Extruder Type Single Screw Exruder Raw Material PE, PPR Granule Inverter ABB Contactor Schneider Components Simens Oversea Service Available Warranty One Year Operator 2-4 Cooling Method Recycling Water Transport Package in Wooden Case Specification CE ISO Trademark SUKE Origin Qingdao, China HS Code 84775900 Production Capacity 50 Sets Per Year

Product Description

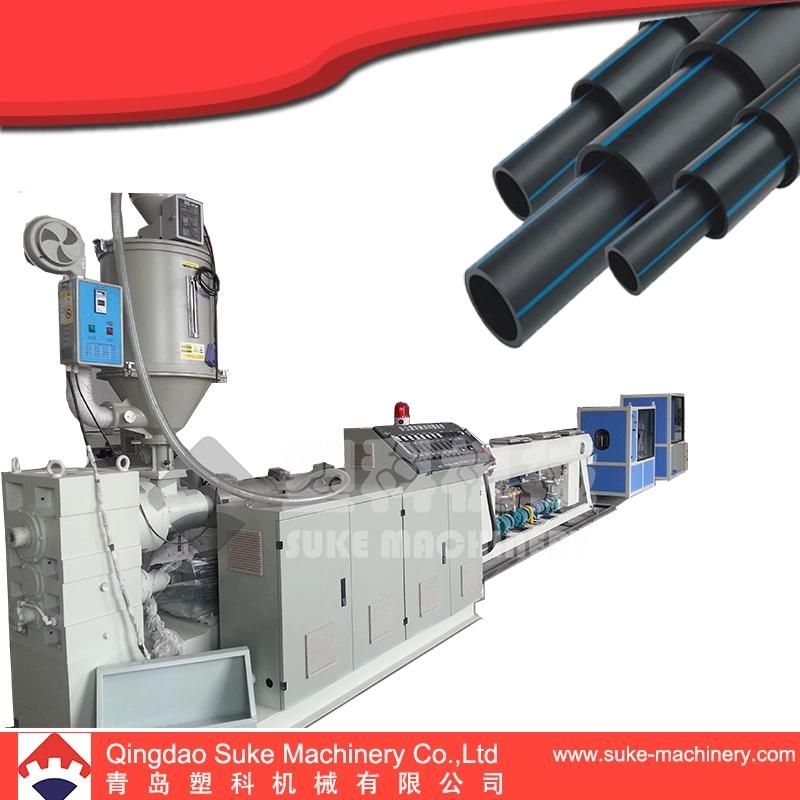

PE Pipe Production Line Extruder (SJ65)




I. Machine Introduction
1.    HDPE series plastic pipe extrusion line is mainly used in the area of agricultural water supply, architectural water supply, gas supply and transportation, telecommunication cables etc.
2.    Pipe Diameter: 16-630mm
3.    By different diameter, it may need different type of machine.
4.    This line has the advantages of easy operation, high automatic degree, stable and reliable production, well received by customers.

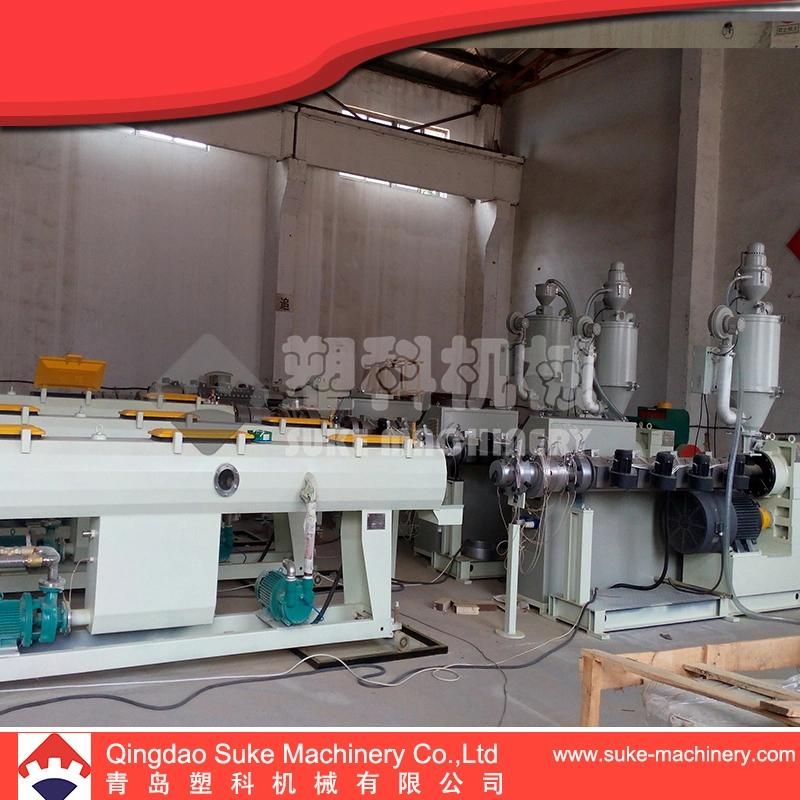

Production Process Flow
Extruder-Mould-Vacuum Shaping-water cooling-Haul-off -Cutting-Stacker-Check-Pack.


Machine Features:
1.    Adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.
2.    Extrusion die head is spiral type, good calibrating makes good quality pipe production.
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

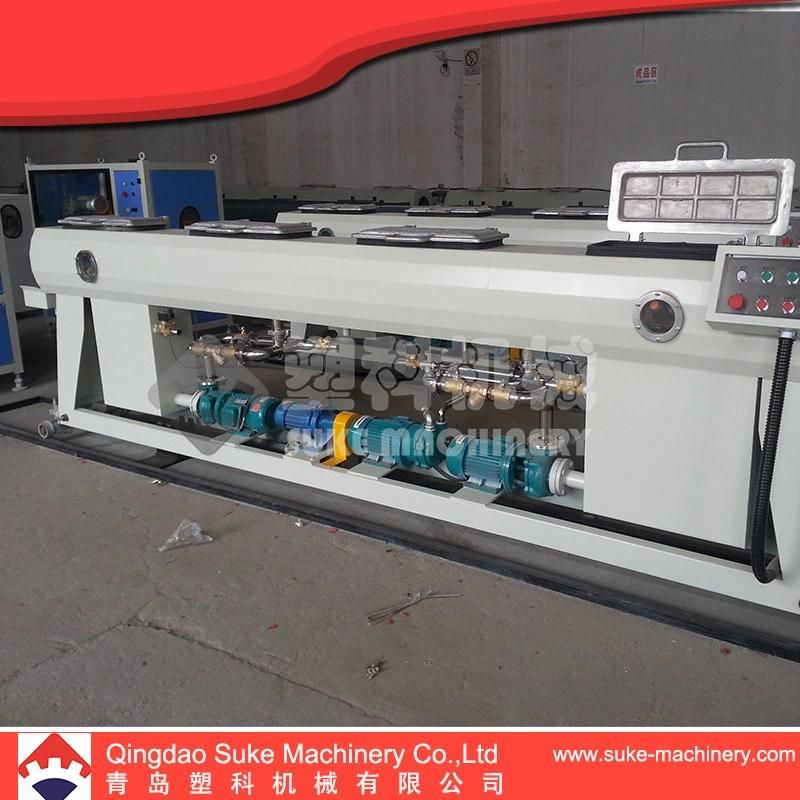

3.    Vacuum calibrating tank and water spraying cooling tank adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.
4.    Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
5.    It is additionally attched with length measuring apparatus and thickness increasing device.
6.    The unit is of reliable performance and high production efficiency.



Equipment List
1.    Single Screw Extruder                1 unit
2.    Mould                                         1 set
3.    Vacuum Water Tank                   1 unit
4.    Water Cooling Tank                   1 unit

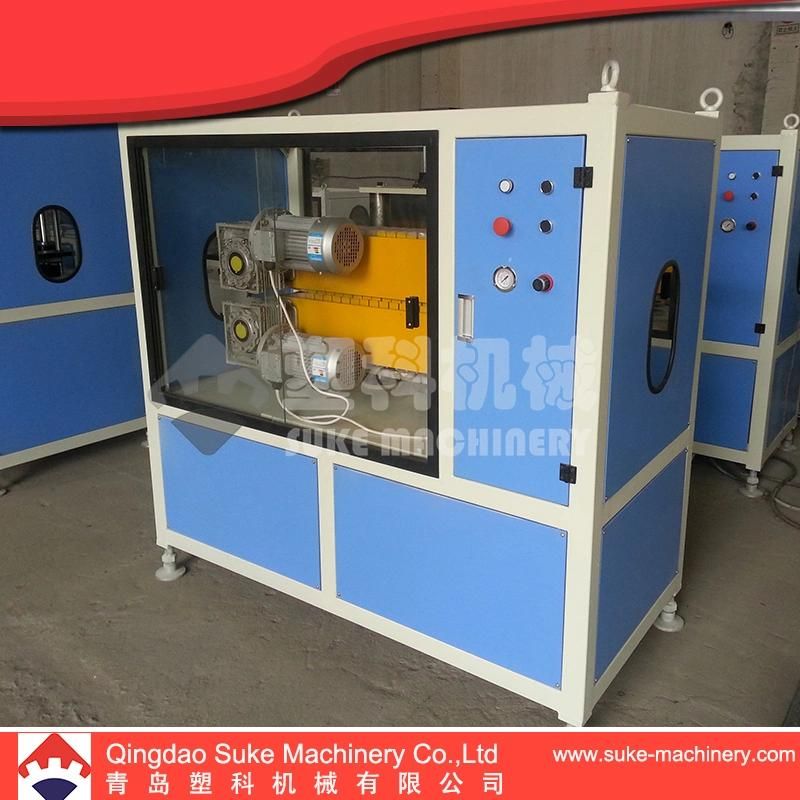

5.    Haul-off Machine                        1 unit

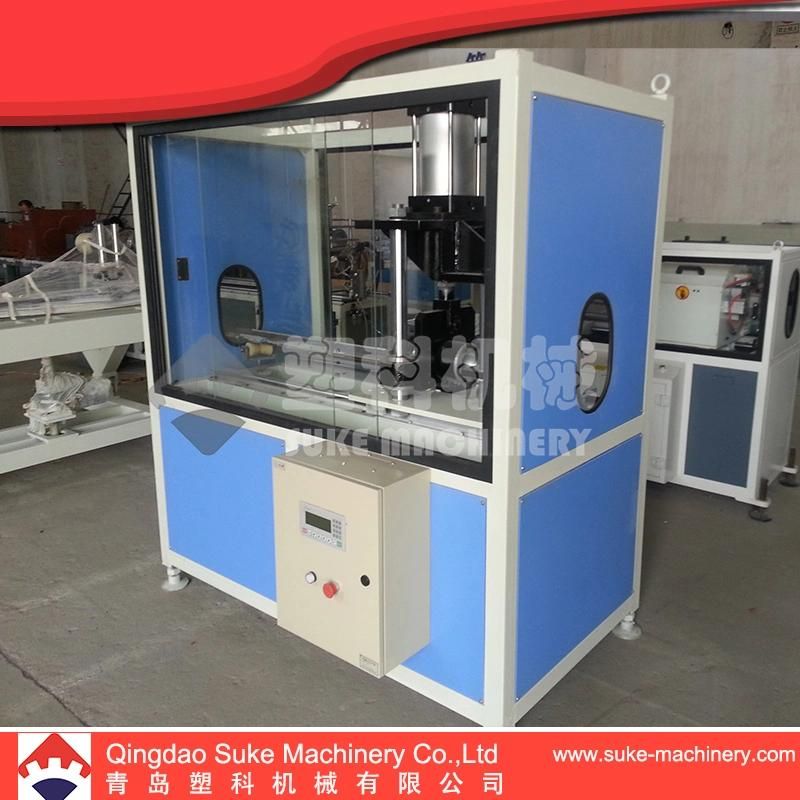

6.    Cutting Machine                         1 unit
7.    Stacker                                      1 unit
Optional Auxiliary Machine;
1.    Crusher                                      1 unit
2.    Mixer                                          1 unit
3.    Pulverizer                                   1 unit
4.    Air Compressor                          1 unit


Trade Terms:
1.    Payment Term: 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2.    Delivery Time: 40 days after receipt of prepayment.
3.    Packing Method:  Packing film or wooden case
4.    Guaranteed Time:  12 months


Machine Test and after serivce
1.    When machine finished, we will invited client come to our factory to check the machine and do the machine test. If machine is ok, then client pay for the balance. And inspect machine load the container.
2.    When machine arrives client's factory, if client needs, we will send 1-2 engineer to client's factory do the machine installation and running test, and also train the local worker how to operate and maintain the machine. It is chargeable.
