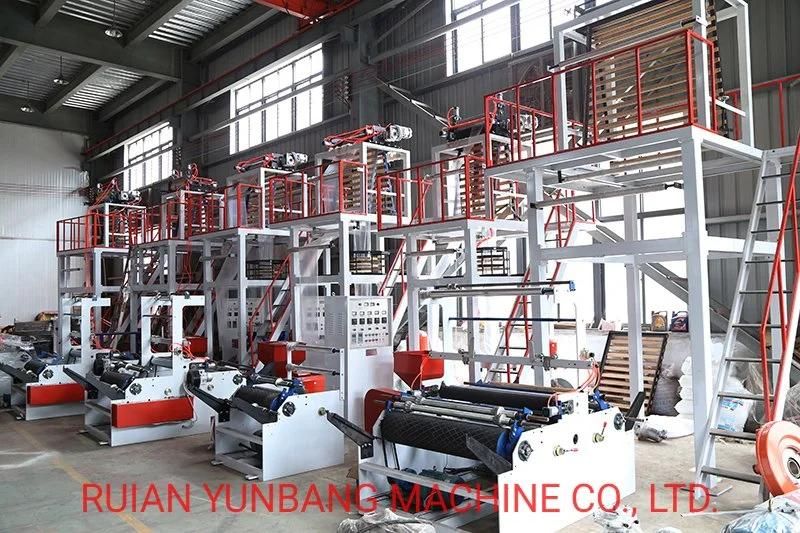

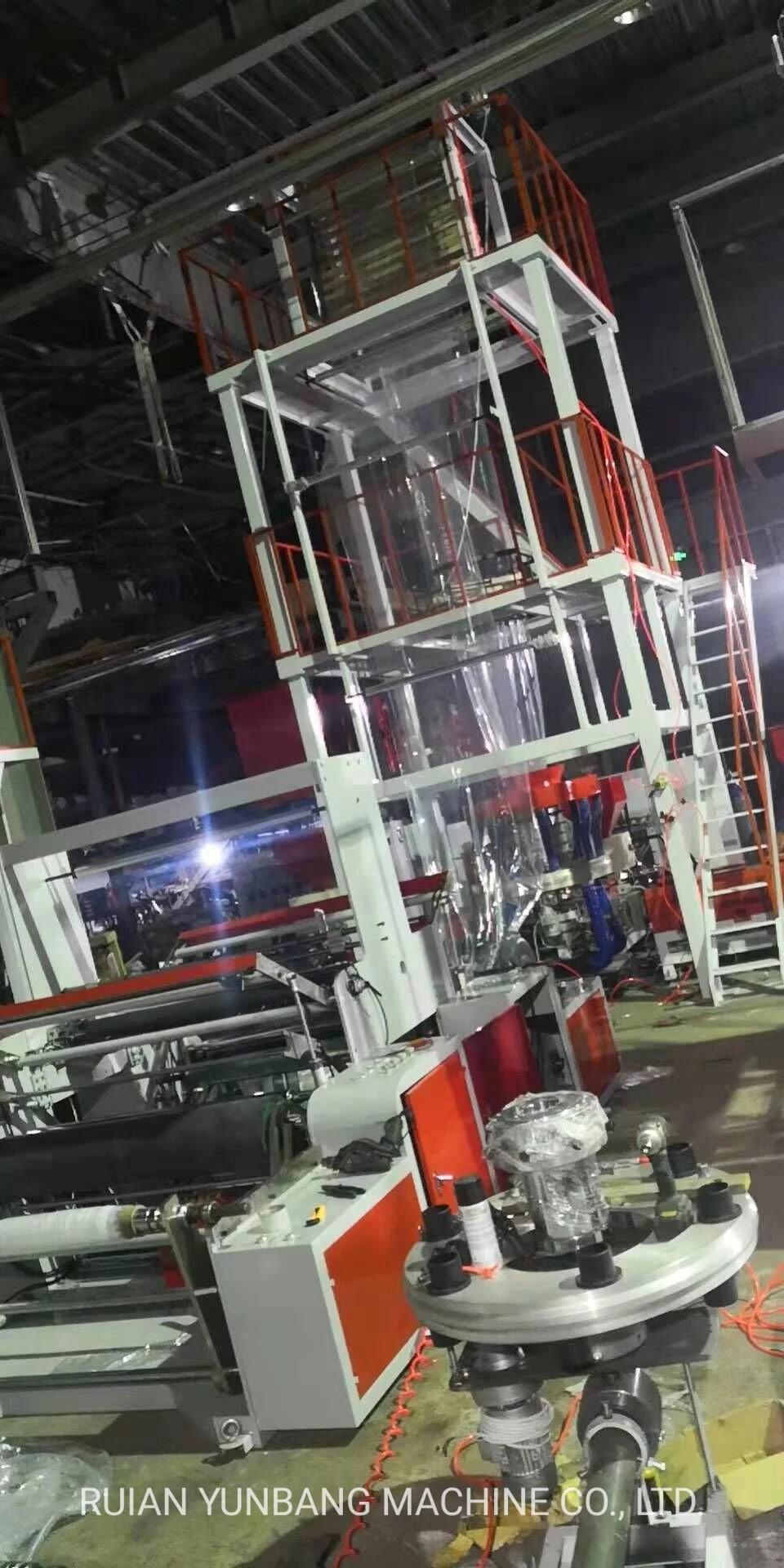

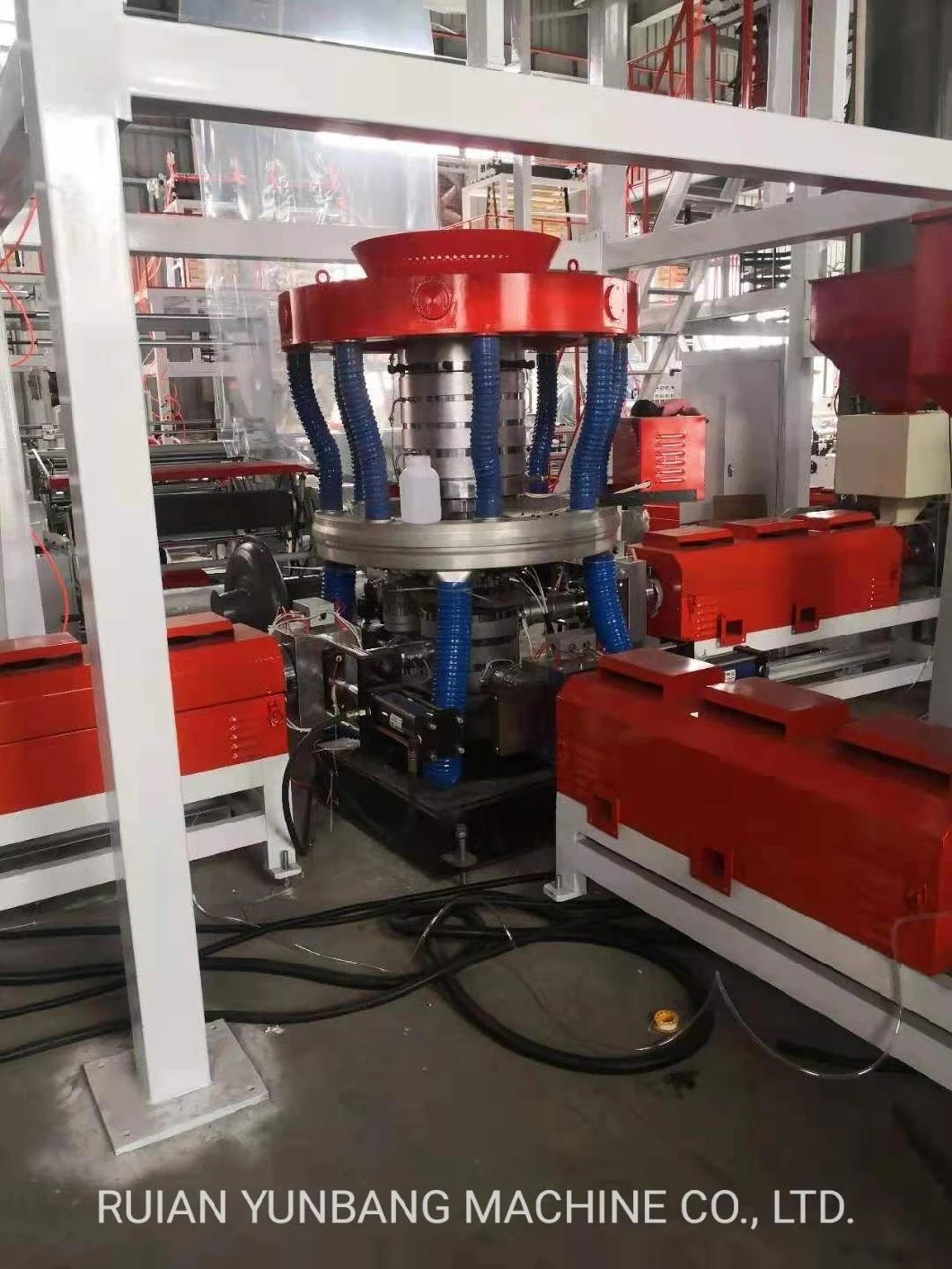

High Output Three Layers HDPE PE Film Blowing Machine Price
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1200mm
- Screw Diameter：65mm
- Automation：Automatic
Base Info
- Model NO.：SJ-
- Computerized：Computerized
- Machine Weight：8T
- Certification：CE, ISO9001:2008
- Capacity：70kg,H
- Machine Size：6600mm*3200mm*5200mm
- Transport Package：Film Package
- Specification：SGS
- Trademark：YUNBANG
- Origin：China(Mainland)
- HS Code：8477309000
- Production Capacity：15 Sets,Month
Description
Model
SJ-50
SJ-55
SJ-65
Screw Diameter
50mm
55mm
65mm
Screw Ratio(L/D)
30:1
30:1
32:1
Screw Speed
10-100r/min
10-100r/min
10-100r/min
Power of Main Motor
18.5Kw
30Kw
37Kw
Main Output
60kg/h
80kg/h
100kg/h
Max. Folding Width of Film
600mm
800mm
1200mm
Single-sided Thickness of Film
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
Total Power
38Kw
45Kw
52Kw
Weight of Machine
2.3T
2.8T
3.5T
Overall Dimensions
5200*2100*4500mm
5500*2500*5000mm
6200*3200*5500mm
